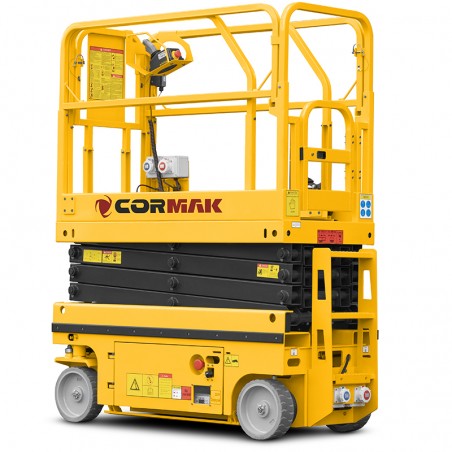

Electric Scissor Lift CORMAK PNE12 320kg 12m

Electric scissor lift platform CORMAK – a reliable solution for working at height

The CORMAK electric scissor lift platform is a professional, mobile access machine designed for intensive work at height in both industrial halls and outdoor environments. Thanks to its robust scissor structure, high stability and advanced technical functionality, this model ensures safe lifting of operators and tools to a working height of up to 14 metres. It is an indispensable solution for industrial plants, construction companies, logistics centres and service providers where precision, safety and operational efficiency are essential.

Main advantages of the machine

• Working height up to 14 m – enables installation and service tasks at significant heights.
• Scissor lifting system – ensures smooth, stable and even platform movement, even at maximum load.
• Load capacity up to 320 kg – allows simultaneous operation of two people with tools.
• Extendable platform by 0.9 m – provides access to hard-to-reach areas without repositioning the lift.
• Electric drive and 24 V battery system – ensures quiet, emission-free operation indoors and long working time between charges.
• Drive with elevated platform – an important feature for tasks requiring mobility at height.
• 230 V / 400 V power supply on the platform – allows tools to be connected without additional extension leads.

Design and technology

The CORMAK electric scissor lift has been built to meet the highest standards of safety and durability. Its structure is based on a reinforced mobile chassis equipped with non-marking wheels, suitable for operation on various surfaces, including sensitive warehouse and production hall floors. The applied scissor mechanism uses high-pressure hydraulics (up to 240 bar), ensuring reliability and smooth lifting.

The working platform is made from durable materials and fitted with steel safety guardrails featuring an integrated access system. The design allows safe and ergonomic operation from both the lower control panel and the operator panel on the platform. Additional features include overload protection, tilt sensors and an emergency lowering system.

Precision and operational efficiency

Thanks to its optimised scissor design and stable drive system, the CORMAK scissor lift ensures precise platform positioning at the required height. A small turning radius (2.1 m) and high ground clearance (90 mm) allow manoeuvring even in narrow aisles or production zones. Traction motors and a modern braking system ensure safe driving, even when the platform is fully raised.

Operational efficiency is enhanced by the use of 24 V batteries (4×12 V 300 Ah), enabling long working cycles without frequent recharging. The integrated charger allows fast charging from a standard power socket, reducing downtime between work cycles.

Applications

The CORMAK electric scissor lift has been designed for demanding industrial users. It is ideally suited for:

• installation and assembly work inside production halls,
• maintenance and servicing of equipment at height,
• warehouse logistics (e.g. order picking, racking maintenance),
• construction and installation industries,
• work in shopping centres, airports and manufacturing plants.

Thanks to the ability to drive with the platform elevated and connect power tools directly on the platform, the machine significantly speeds up and simplifies work at height.

Standard equipment

• Lower and platform-mounted control panels
• Extendable working platform
• Safety guardrails with access gate
• 230 V / 400 V power supply on the platform
• Non-marking wheels
• Overload protection system and tilt sensors
• Emergency platform lowering
• Built-in battery charger

Technical data
