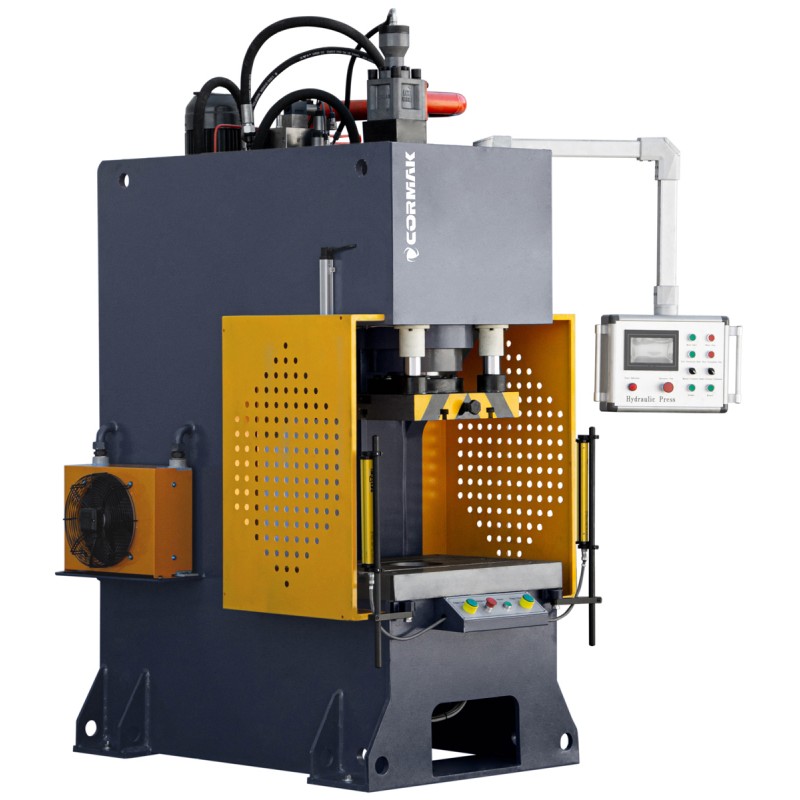

Hydraulic Eccentric Press CORMAK 40T
A solid and efficient hydraulic press with a 40-ton pressing force, ideal for bending, stamping, punching and straightening metal components. The C-frame design ensures easy access to the working area and high rigidity of the entire structure. The press is equipped with a precise PLC controller and touch HMI panel for simple programming and control of the working cycle. The hydraulic system based on reliable components guarantees smooth and safe operation, while position sensors ensure excellent repeatability and accuracy of operations.
THE MACHINE MEETS ALL SAFETY STANDARDS AND HAS A CE CERTIFICATE
| Nominal pressure (kN) | 400 |
| Stroke regulator (mm) | 10–120 |
| Maximum stroke (mm) | 130 |
| Loading height (mm) | 140–200 |
| Feed rate (L/min) | 30–60 |
| Rapid travel speed (mm/s) | 230 |
| Working speed (mm/s) | 8 |
| Return speed (mm/s) | 180 |
| Worktable – width (mm) | 600 |
| Worktable – depth (mm) | 400 |
| Blanking hole (mm) | 150 |
| Throat depth (mm) | 260 |
| Ram – front/back (mm) | 320 |
| Die holder (mm) | 50 |
| Ram – left/right (mm) | 320 |
| Motor power (kW) | 5.5 |
| Width (mm) | 1100 |
| Depth (mm) | 1260 |
| Machine height (mm) | 1960 |
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
Brzeska 120, 08-110 Siedlce, Poland
phone: +48 501 944 934
export@cormak.pl
phone: +48 609 939 400
export@cormak.pl
phone: +48 609 939 051
export@cormak.pl
phone: +48 609 939 741
export@cormak.pl
