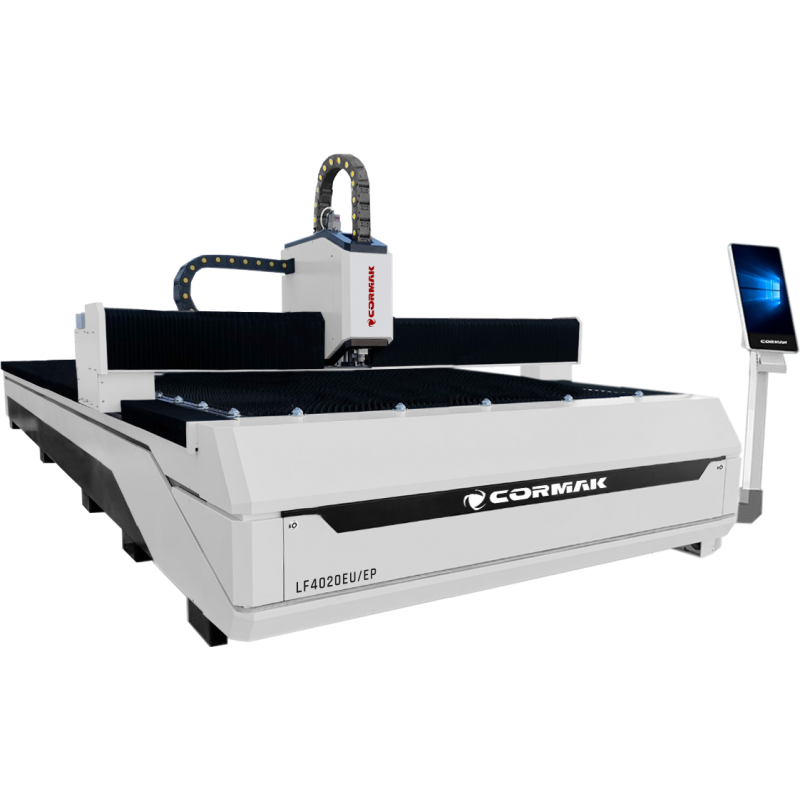

Fibre Laser Cutter CORMAK FIBER LF4020EP4 2000W

Fibre laser cutting machines are modern devices distinguished by numerous advantages. They are not only an excellent and much more cost-effective alternative to CO2 technology but also have many features that enhance production efficiency (up to 70%) and improve quality. The FIBER technology allows cutting sheets and other materials of various thicknesses — from very thin to very thick. The wavelength in a FIBER laser is 1.064 micrometres, which results in intensity 100 times higher than that of CO2 devices of similar power.

THE MAIN ADVANTAGES OF THE LASER INCLUDE

• Long service life. The collimating and focusing lenses feature a water-cooled heat sink, reducing the cutting head temperature and extending its lifespan.
• Wider adjustment range. Adjustment range -10 mm ~ +10 mm, precision 0.01 mm, suitable for various plate types 0 ~ 20 mm.
• Automatic focus adjustment (above 1500W) – Autofocus – The software automatically adjusts the focusing lens when cutting sheets of different thicknesses. The automatic focus adjustment speed is ten times faster than manual adjustment.








Design Screen

The screen features a vertical display with a fast response time, higher contrast, wider viewing angle, low power consumption, and high resolution. It also provides high brightness, low reflection, and increased durability.

Welded Rectangular Frame Bed

The bed structure has an internal honeycomb design made of numerous welded rectangular tubes. Internal reinforcements increase strength, rigidity, and stability of the guide rails, effectively preventing deformation. High strength, stability, and tensile resistance ensure 20 years of use without distortion.

Technical Parameters

Cutting Parameters

Actual parameters may vary depending on technical conditions and materials used.

1. RAYTOOLS cutting head
2. Linear guides: HIWIN
3. Gears and racks: YYC
4. Servo motors: DELTA
5. Gearbox: MOTOREDUCER
6. Pneumatic components: SMC
7. Electronic components such as contactors, relays, sensors from Schneider, OMRON, IDEM
8. CypCut software
9. Water chiller: S&A
10. Voltage stabiliser: TNS

*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.
