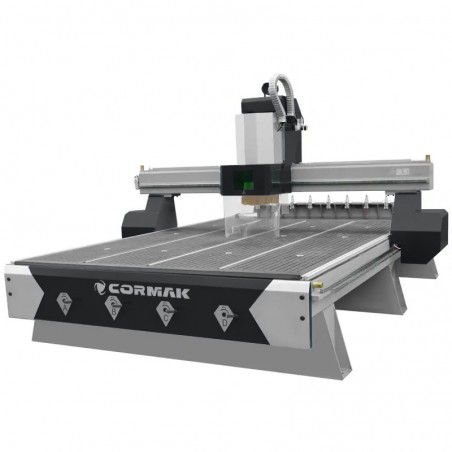

CORMAK C2131 PREMIUM CNC milling machine (2150x3200) + hybrid table

Design

• Welded steel rigid construction,
• The gate arms are made of hardened, thick, powder-coated sheet metal, which has increased stiffness, which translates into the quality of the processed detail.

Work table

• The work table is made using hybrid technology,
• It has T-slots enabling manual clamping of material with dimensions of 2010 x 3010mm,
• Dissection table with four independent vacuum sections.

Drive

• SERVO motors used to drive high-power machine tools provide appropriate acceleration and speed in individual directions,
• The X and Y axes are equipped with high-quality toothed bars, praised by users, which ensure high durability and precision,
• The Z axis is driven by a high quality ball screw.
• All axles move on rail guides.
• The machine is equipped with a tool height sensor,
• Linear bearings: trapezoidal rails, Hiwin carriages.

Spindle

• The spindle design uses high-quality machine bearings, which are characterized by very quiet operation and guarantee increased durability.
• Tool height measurement sensor - included.
• The spindle speed range is from 4,500 to 18,000 rpm.
• Tool clamping using ER32 collets

Software

• OPTIONALLY  The latest UCanCAM V12 software  in Polish language version  (the software provides the ability to import files from Corel, Autocad, etc. File import/export, text editor and input and many other functions)
• The software enables quick and easy design of elements, which the program then converts to so-called G-code. It is also possible to import ready files from other programs.
• The machine is equipped with a function of remembering the last G-code path (In the event of a failure or power outage, it starts working from the last point without losing time or material.)

DSP control

• Digital Signal Processing - digital signal processing.
• The machine's DSP controller has its own processor and RAM, which ensures failure-free operation and simple operation of the machine.
• The controller ensures smooth operation of the device and accuracy during processing.
• There is no need to reinitialize the program after a power loss.
• The memory built into the controller allows the machine to operate without having to load the program each time.

We offer machine tools with real CE EU DTR - certified by the best in the EU.

By choosing the CORMAK brand, you choose precision machining and long service life, peace and safety for yourself or your employees.

We do not look for external companies, we have our own service (warranty/post-warranty services)

Technical parameters

Equipment

• Air-cooled spindle, Premium version
• Hybrid servo drives
• Vacuum table - 4 independent vacuum sections + T-slot table for manual material clamping
• Tool measurement sensor included
• Tools, bushing set, leveling feet and other accessories
• DSP Control - Digital Data Processing

Unloading and positioning of the machine on the customer's side.

Power plug on customer side due to different sockets 16A / 32A
