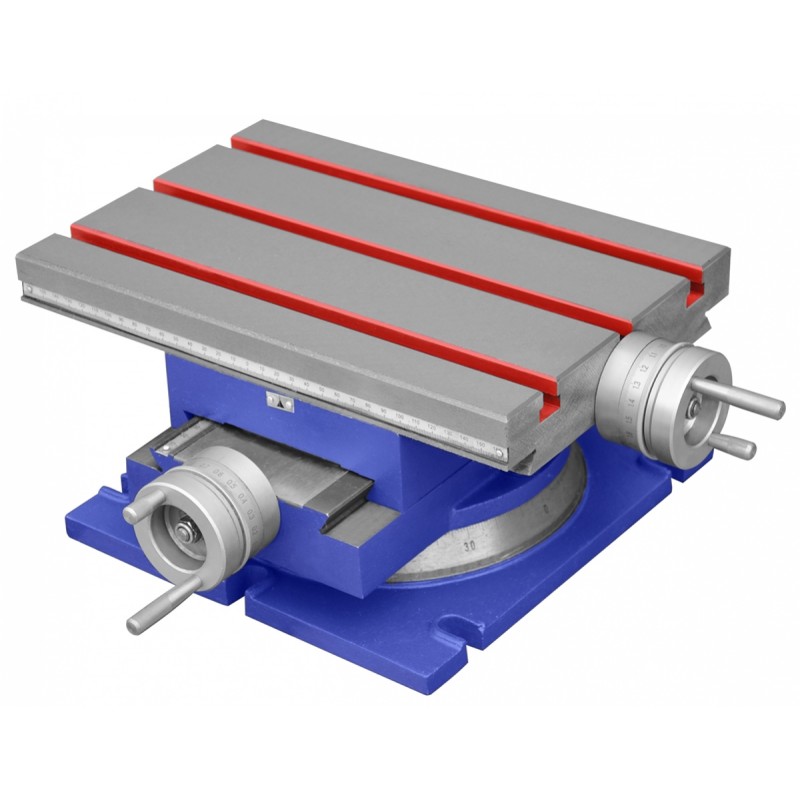

Rotary cross table 330X220 mm

Rotary cross table 330X220 mm - Cross slide table 330X220 mm
  • Rotary cross table 330X220 mm - Cross slide table 330X220 mm
  • Rotary cross table 330X220 mm - Cross slide table 330X220 mm
  • Rotary cross table 330X220 mm - Cross slide table 330X220 mm
  • Rotary cross table 330X220 mm - Cross slide table 330X220 mm

Precise cross table with screw cover, sliding guides made using the "dovetail" method significantly improve the stiffness of the table and enable the elimination of play in feeds.

Have questions? Call us!

+48 25 631 00 27 ext.130

Are you a member of the VIES group?

VAT included
€307.25
The lowest price of this product in the last 30 days before the discount was €299.26 gross

  • CE
  • Instructions in Polish
  • Service
  • Warranty 12/24 months
  • Delivery
    Free

Description of the cross table

  • The cross table is solidly made of high-quality materials.
  • Ideally supports work on drilling machines, milling machines, etc., thanks to which we achieve precise positioning when boring or drilling.
  • Cross table equipped with a swivel base with a 360°/3mm pitch.
  • Screw cover prevents chips from entering the feed working mechanism.
  • An additional advantage of the table is a strip scale that facilitates constant viewing of the table's position in the X and Y axis
  • Nonius 4 mm/0.02 mm

Technical parameters

A B C D E F G H J K

Shift

X-axis

Shift

Y axis

 Dimensions Weight

330

[mm]

220

[mm]

12

[mm]

72

[mm]

155

[mm]

280

[mm]

260

[mm]

220

[mm]

200

[mm]

96

[mm]

190

[mm]

100

[mm]

410x350x210

[mm]

33

[kg]

Manufacturer: Cormak
