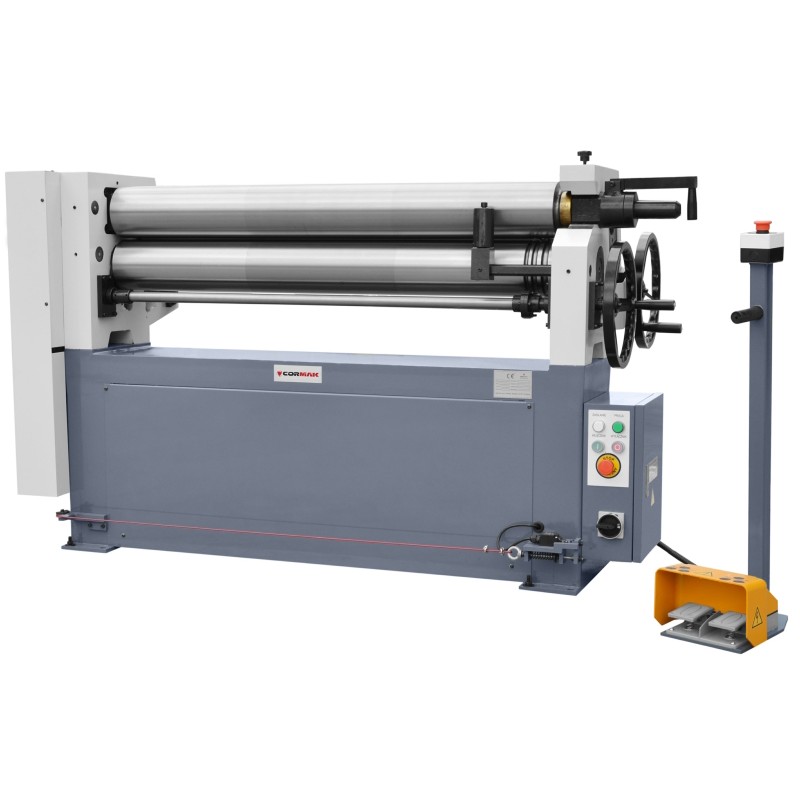

ESR-2020 x 3.5 Roll Bender

ESR-2020 x 3.5 Roll Bender -
  • ESR-2020 x 3.5 Roll Bender -
  • ESR-2020 x 3.5 Roll Bender - Roll Bender CORMAK ESR-1300/2.5 /4.5
  • ESR-2020 x 3.5 Roll Bender - Roll Bender CORMAK ESR-1300/2.5 /4.5
  • ESR-2020 x 3.5 Roll Bender - Roll Bender CORMAK ESR-1300/2.5 /4.5
  • ESR-2020 x 3.5 Roll Bender -

The ESR 2020 x 3.5 mm three-roll electromechanical rolling mill with asymmetric shafts is used to produce cylindrical and conical shells of various diameters. This machine is designed for bending sheets with a thickness of up to 3.5 mm, length up to 2020 mm, diameter of the upper shaft 125 mm. The most popular are three-roll bending machines from this series, due to their relatively simple and functional design. Most suitable for those customers who are looking for equipment with medium performance and low cost.

Have questions? Call us!

+48 25 631 00 27 ext.105

Are you a member of the VIES group?
To use the VIES group, you must have a VAT number.

VAT included
€9,686.25

Product available on request. Please contact our sales department.

  • CE
  • Instructions in Polish
  • Service
  • Warranty 12/24 months
  • Delivery
    Free

The most important advantages:

     Asymmetric arrangement of the rollers
     The lower and upper rollers rotate through a system of gears and a chain drive from an electric motor
     The upper roller rotates in both directions, equipped with a tilt and turn mechanism
     Height adjustable lower and side rollers (manually adjustable)
     Cone bending possible
     Foot control with emergency stop button

Processing scheme

ESR-2020 x 3.5 Roll Bender

The chain drive transfers the rotation from the electric motor to the rollers. The upper roller is foldable, which facilitates the removal of finished products. The folding roller is equipped with a lock preventing its spontaneous opening during operation.

 Technical data:

Model: ESR 2020 x 3.5 mm
Maximum work width: 2020 mm
Maximum material thickness: 3,5 mm
Roller diameter: 125 mm
Motor power: 3 kW
Dimensions 2530 x 640 x 1050 mm
Weight 1230 kg. (±2%)

Standard equipment:

  • Foot controller for operation
  • Manual in Polish/English
  • CE declaration

Manufacturer: Cormak

CORMAK JERZY ZALEWSKI
Brzeska 120, 08-110 Siedlce, Poland
