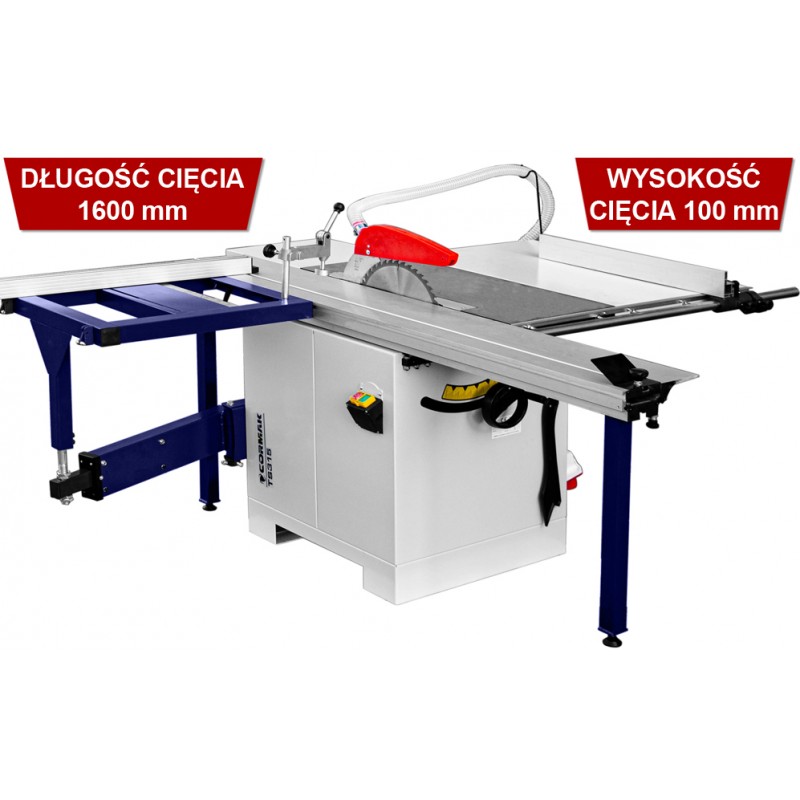

Sliding Table Saw CORMAK TS315 – professional saw for precise cutting of wood and wood-based materials
CORMAK TS315 is a durable, efficient and precise sliding table saw designed for intensive use in professional joinery and production workshops. With a 315 mm blade and rigid steel construction, it is ideal for cutting solid wood, MDF, HDF, plywood and plastics of similar density. The high motor power and large cutting capacity meet the demands of even the most advanced users.
Main features
- 315 mm saw blade – cuts materials up to 100 mm at 90°.
- Powerful motor 2.8 kW (S1) / 3.3 kW (S6) – stable performance under heavy load.
- Blade speed 4,250 rpm – ensures smooth, clean and precise cuts.
- Sliding table 1600 × 238 mm – ideal for working with large furniture panels.
- Stable industrial frame – minimises vibration and improves cutting accuracy.
- Multi-section table system – extensions and wideners increase the total working surface.
- Accurate parallel fence – ensures repeatable, dimensionally precise cuts even in serial work.
Construction and technology
The CORMAK TS315 sliding table saw has been designed as a professional woodworking machine combining rigidity, precision and user comfort. The steel frame ensures maximum stability and resistance to deformation. The table system – main, sliding, extension and widening tables – allows easy handling of large panels and sheets, significantly improving safety and productivity.
Smooth adjustment of cutting height and angle is carried out by precise handwheels, allowing quick parameter setup for any job. All moving parts are bearing-mounted to guarantee long, trouble-free service life.
Precision and efficiency
With a large 315 mm blade, the TS315 sliding table saw cuts materials up to 100 mm thick with maintained accuracy. The 4,250 rpm blade speed ensures perfectly smooth edges without burning or chipping. The combination of the sliding table and precision fence allows precise, straight and angled cuts essential for furniture, panel and structural components.
Applications
The CORMAK TS315 saw is used in:
- Professional woodworking shops – for solid wood and laminated materials,
- Furniture production – for precise cutting of MDF, HDF, plywood and laminates,
- Craft and repair workshops – as a universal saw for everyday precision work,
- Specialist studios – for cutting PVC, ABS and similar-density materials.
Standard equipment
- 315 × 30 × 3.2 mm saw blade
- Mitre fence
- Parallel fence
- Sliding table
- Table extension and widening
Optional equipment*
- Chip extraction system with 100 mm port
- Stop system for repetitive cutting
- Sets of TCT blades for different materials
*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.
Technical data
| Blade dimensions |
315 × 30 × 3.2 mm |
| Blade speed |
4,250 rpm |
| Max. cutting height 90°/45° |
100 / 75 mm |
| Max. cutting width on fence |
940 mm |
| Main table dimensions |
800 × 365 mm |
| Table extension |
760 × 600 mm |
| Table widening |
500 × 350 mm |
| Sliding table |
1600 × 238 mm |
| Extraction port diameter |
100 mm |
| Motor power S1/S6 |
2.8 kW / 3.3 kW |
| Power supply |
400 V |
| Weight |
245 kg |
| Machine dimensions |
1540 × 2400 × 1300 mm |
Invest in a reliable industrial sliding table saw
The CORMAK TS315 Sliding Table Saw combines power, precision and versatility. It is a dependable machine for professionals seeking long-term reliability, accurate cutting and industrial performance in everyday production.
