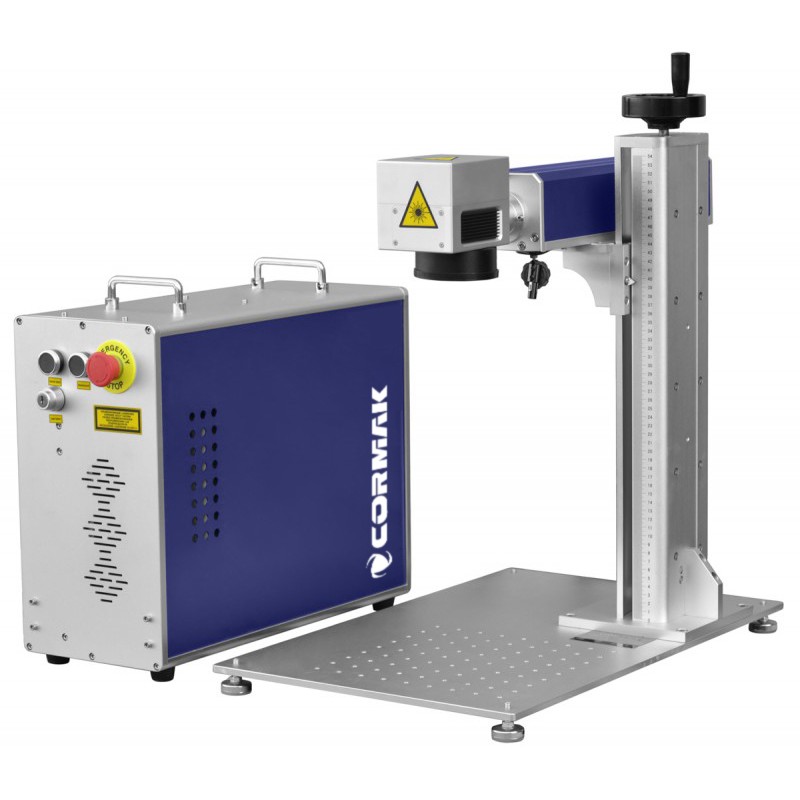

Fibre Laser Marking Machine CORMAK LF20W 200x200

Fibre laser marking machine with a wide range of applications. The device can process standard metals and their alloys (iron, copper, aluminium, zinc, etc.), precious metals (gold, silver, titanium, etc.) as well as other metallic materials.

Have questions? Call us!

+48 25 631 00 27 ext.105

export@cormak.pl

Are you a member of the VIES group?

To use the VIES group, you must have a VAT number.

Yes - show prices with VAT 0%

VAT included

€3,624.75

Product available on request. Please contact our sales department.

There are not enough products in stock

I agree to the terms and conditions and the privacy policy

Instructions in Polish
Service
Warranty 12/24 months
Delivery
150,00 PLN

The device meets all safety requirements!

It features proper safety markings in accordance with standards and key-operated start-up.

Description:

Compact dimensions for easy transport and desktop operation
High positioning accuracy
USB communication
EzCad2 software
Supports popular graphic file formats
Low power consumption
Built-in fans for effective cooling
Adjustable laser height (0–50cm)
Optional rotary axis (option*)

TECHNICAL PARAMETERS
Maximum power consumption	800W
Laser type – fibre	1064 nm / 20W
Auxiliary (red) laser pointer	<=5mW
Maximum marking depth	<2.0mm
Minimum marking line width	0.015mm
Maximum marking speed	7000mm/s
Minimum character size	0.1mm
Positioning accuracy	+/- 0.001mm
Laser module lifespan	approx. 100,000h
Control software	EZCAD2
Supported file formats	PLT, DXF, DWG, BMP, JPG, PNG
Working area	210 x 150mm
Marking area (lens)	200 x 200mm
Weight	48kg

Included with the machine:

Fibre laser marking machine, 20W
Working area: 200 x 200mm
Collimator
Scanner (galvo)
Lens
Red point laser
Adjustable platform
START foot pedal
Software
User manual

*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.

Manufacturer: Cormak
