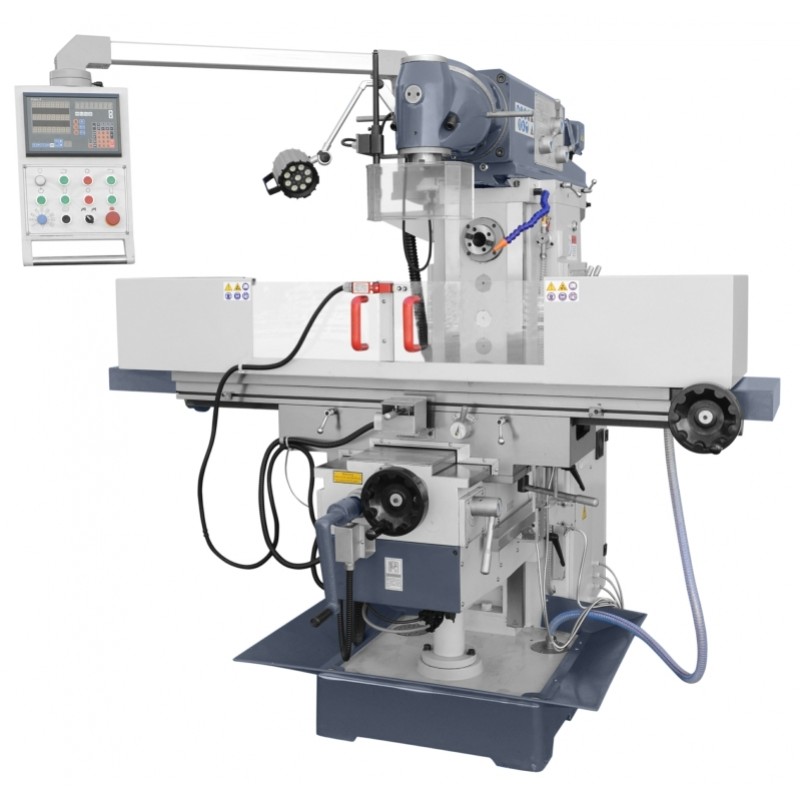

UWF120 Universal Milling Machine
A new series of conventional machines equipped with servodrives for 3 feeds.
Are you a member of the VIES group?
To use the VIES group, you must have a VAT number.
VAT included
€16,574.25
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Technical data
| Max. face mill diameter |
25mm |
| Table dimensions |
1370x320 mm |
| X / Y / Z table travel |
1000/320/450 mm |
| Distance between spindle face and table |
200-650 mm |
| Distance of the horizontal spindle axis from the table |
20-470mm |
| Distance of the spindle axis from the column |
200-760 mm |
| Width, spacing and number of T-slots | 14 mm / 70 mm / 3 pcs |
| Spindle speeds |
45-1660 (V-11) rpm 34-1320 (H-12) rpm. |
| Table feeds |
22-555 mm / min (8) |
| Spindle taper |
ISO40 |
| Supply voltage |
400 V |
| Engine power |
3 kW (V); 2.2 kW (H) |
| Weight |
2,100 kg |
| External dimensions (LxWxH) |
2020 x 1710 x 1994 mm |
Equipment dependent on standard
-
Digital reading of 3 axes
-
ISO40 pin with ER32 sleeves 4,5,6,8,12,14,16
-
ISO40 / MK4 reduction
-
ISO40 / B16 reduction
-
Long spindles for the horizontal spindle - 2 pcs.
-
3-16 mm drill chuck B16
-
Vice 160
-
Lighting
-
Cooling system
-
Central lubrication system
-
Table feed for the x, y, z axes
-
Maintenance Toolkit
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
street Brzeska 120, 08-110 Siedlce, Poland
