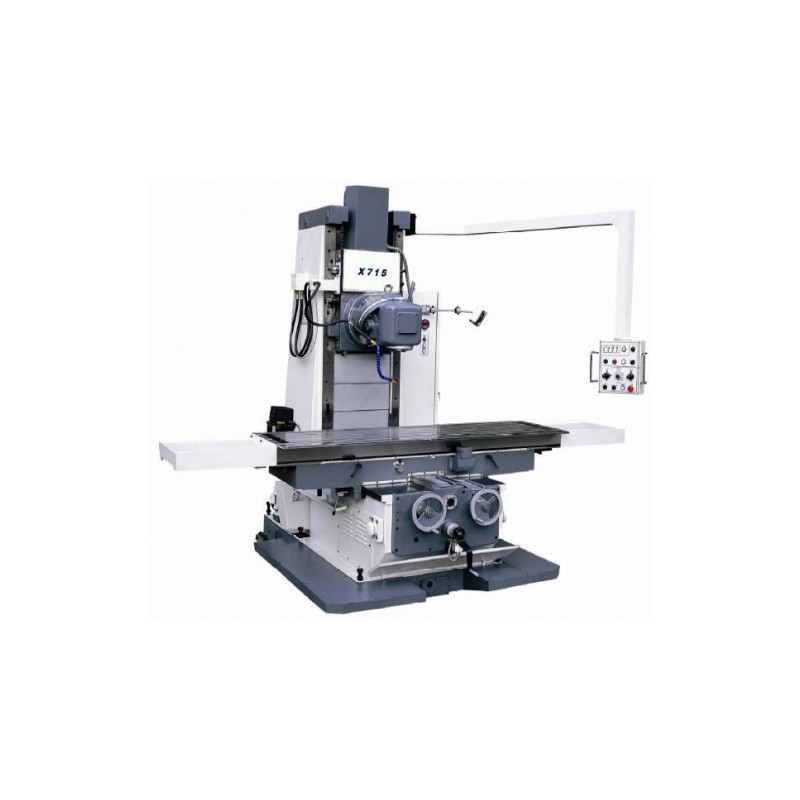

X715 Universal Milling Machine
Are you a member of the VIES group?
VAT included
€87,945.00
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Machine features
- Rigid, robust construction enabling heavy metals working
- Table large area
- Possibility of working as vertical and horizontal milling machine
- Head long vertical travel
|
Technical data |
|
|
Table dimensions |
2100×500 mm |
|
T-slots number |
4 |
|
T-slots dimensions/arrangement |
20 mm/100 mm |
|
Table load capacity |
2000 kg |
|
Longitudinal travel |
1500 mm |
|
Transverse travel |
670 mm |
|
Spindle |
ISO 50 7:24 |
|
Speed |
(12) 40–1600 rpm |
|
Distance from spindle to column surface |
610 mm |
|
Distance from spindle to table surface |
0–670 mm |
|
Longitudinal and transverse rapid feed |
3500 mm/min |
|
Vertical rapid feed |
1750 mm/min |
|
Longitudinal and transverse feed speed |
20–1800 mm/min |
|
Longitudinal and transverse feed speed |
10–900 mm/min |
|
Spindle motor |
7.5 kW |
|
Feed motor |
2 kW |
|
Cooling pump motor |
0.55 kW |
|
Packaging dimensions |
2280×2280×2830 mm |
|
Overall dimensions |
3300×2380×2750 mm |
|
Net/Gross weight |
7300 kg / 8000 kg |
Default equipment
- ISO 50 milling chuck
- ISO 50 milling holder
- Reduction sleeve
- Oil gun
- Toolbox with basic tools
- Mounting anchors
- User manual
- EC Declaration of Conformity
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
street Brzeska 120, 08-110 Siedlce, Poland
