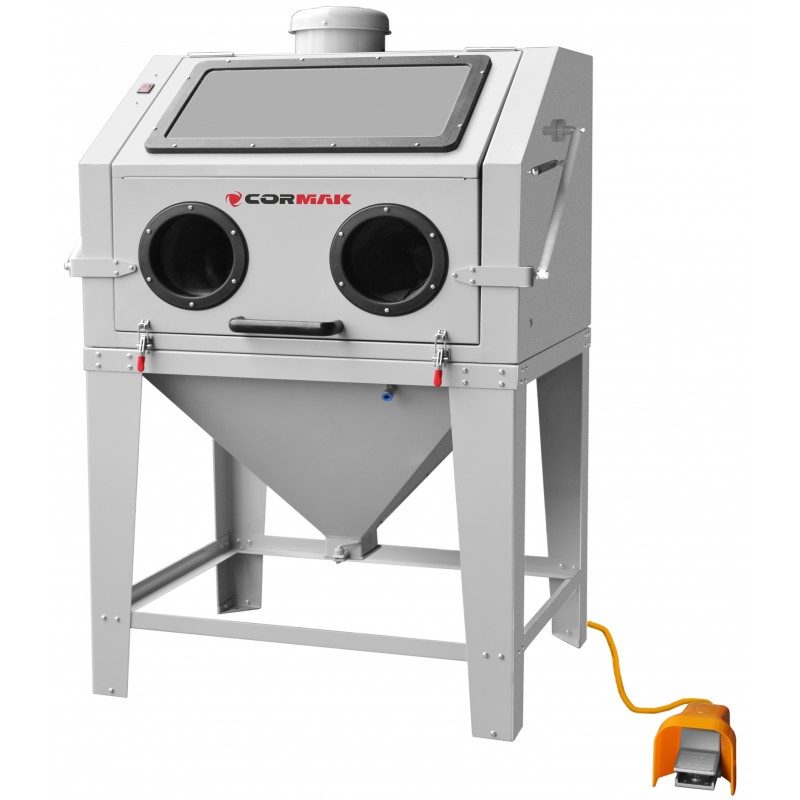

Sandblaster Cabinet KDP350TOP with DC15 Cyclone Dust Extractor – a professional cabinet for blasting metal and rims
The KDP350TOP sandblaster cabinet is an advanced industrial machine designed for cleaning and surface preparation of metal components. Thanks to its spacious 350-litre working chamber and top-opening design, this model ensures excellent operating comfort and enables blasting of large workpieces. The integrated DC15 cyclone dust extractor maintains a dust-free working environment. It is a reliable sandblaster cabinet for rims, machine parts, engine components and many other steel or aluminium elements.
Main advantages of the KDP350TOP sandblaster
- Large working chamber – 350 litres of capacity for handling large components.
- Top-opening working chamber – facilitates loading and unloading of workpieces.
- DC15 cyclone dust extractor – effective removal of dust generated during blasting.
- Dust-free operation – doors with perimeter gaskets and extraction connections (63 mm and 90 mm).
- Sandblasting gun – supplied with 8 ceramic nozzles for precise surface treatment.
- Internal lighting – 12 V fluorescent lamp powered from 230 V improves visibility.
- Integrated protective gloves – abrasion-resistant, ensuring operator safety and ergonomics.
- Replaceable protective films for the viewing window – ensure clear, unobstructed visibility.
- High abrasive compatibility – quartz sand, glass beads, emery and plastic media.
Applications
The KDP350TOP sandblaster cabinet is ideal wherever precise surface treatment is required. Perfect as:
- a sandblaster for aluminium and steel rims up to 20 inches,
- a cabinet for preparing components prior to painting or welding,
- a machine for removing rust, paint, coatings and technological residues,
- a tool for refurbishing automotive, engine and industrial components.
Dust extraction system – DC15 cyclone dust extractor
The set includes the DC15 dust extractor, which, combined with the extraction connections, efficiently removes contaminants generated during sandblasting. Thanks to the cyclone operating principle, the filter maintains high efficiency over a long period, while the working area remains clean. This solution significantly improves operator comfort and safety, especially during prolonged use.
Standard equipment
- DC15 cyclone dust extractor with filter
- Connection hose
- 12 V fluorescent lamp (230 V power supply) with on/off switch
- 2 rubber protective gloves integrated with the cabinet
- Sandblasting gun with 8 ceramic nozzles
- 4 protective films for the viewing window
- Front door with perimeter rubber gaskets
- 2 extraction connections (63 mm and 90 mm)
Technical specifications of the KDP350TOP sandblaster cabinet
| WORKING CAPACITY |
330 L (0.33 m3) |
| WORKING PRESSURE |
4 – 8 bar |
| AIR CONSUMPTION |
400 – 700 L/min |
| AIR CONNECTION |
1/4" quick coupling |
| VIEWING WINDOW AREA |
580 x 270 mm |
| EXTRACTION CONNECTION |
63 mm and 90 mm |
| INTERNAL DIMENSIONS (W × D × H) |
890 x 655 x 360/610 mm |
| OVERALL DIMENSIONS |
960 x 720 x 1500 mm |
| WEIGHT |
88 kg |
Note: the machine requires self-assembly in accordance with the supplied instructions.
Order the KDP350TOP sandblaster – a robust blasting cabinet for your workshop
Choose a sandblaster cabinet designed for intensive and precise operation. The KDP350TOP with cyclone dust extractor is an indispensable tool for professionals who value cleanliness, quality and operational safety. Check availability with CORMAK sales advisors or place your order online.
