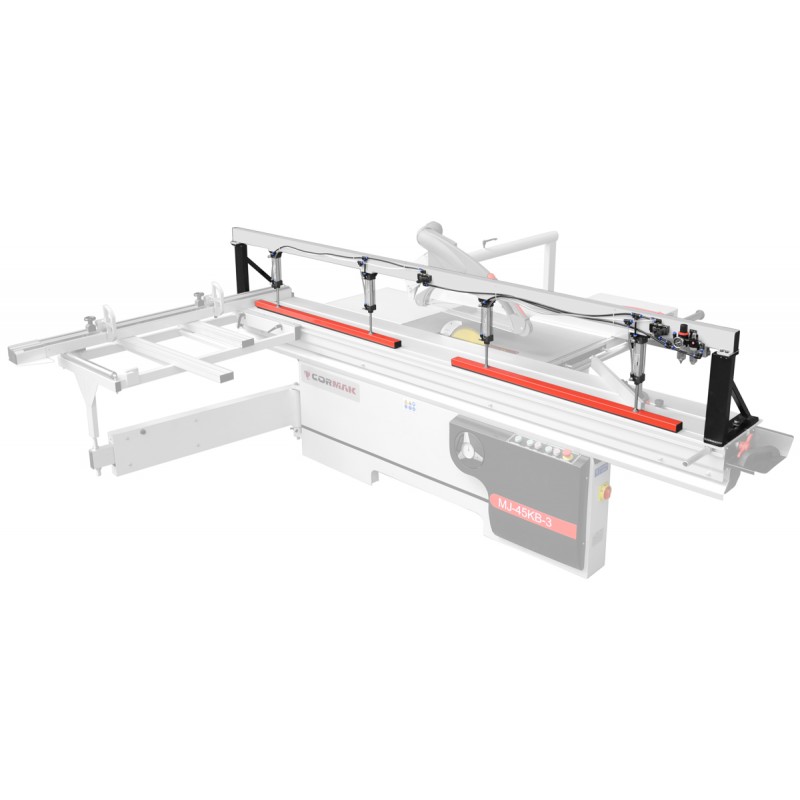

Two-Part Pneumatic Clamping System 3200 mm for Sliding Table Saw

Two-part pneumatic clamping system for sliding table saw 3200 mm – precise material control during cutting

Pneumatic clamping system for sliding table saws is an essential accessory for workshops that require maximum stabilisation of the cut material. The two-part model with a length of 3200 mm provides secure and even pressure of panels against the worktable, eliminating typical issues associated with cutting without clamping, such as chipping, material loss, and dimensional inaccuracies.

Key advantages of the solution

• Pneumatic clamping system with two independent sections – each equipped with two cylinders, allowing flexible pressure control along different areas of the table.
• Extended 3200 mm beam – full coverage of a typical sliding table saw length, ideal for processing large-format panels.
• Optimal working force at low pressure – effective operation from as low as 2.0 bar, resulting in energy savings and simpler installation.
• Improved operator safety – immobilising the material reduces the risk of shifting and uncontrolled panel movement during cutting.
• Reduced material waste – stable positioning eliminates cutting errors and minimises offcuts.
• Higher edge quality – vibration-free and stable clamping ensures clean cuts without burrs or tearing.

Design and technology

The clamping beam is manufactured from a durable steel profile, ensuring long service life and resistance to deformation. A system of pneumatic cylinders arranged in two sections provides even pressure along the entire length of the processed material. The separation of zones allows the clamping force to be adjusted to different panel formats and thicknesses.

The system is designed for quick installation on most sliding table saws, enabling easy integration into existing production lines without the need for structural modifications to the machine.

Precision and work efficiency

The use of a pneumatic clamping system for sliding table saws directly translates into cutting efficiency and dimensional repeatability. Even when cutting thin or finished laminated panels, the operator gains confidence that the material will not shift, which has a direct impact on the quality and aesthetics of the finished component.

Applications

The two-part pneumatic clamping system for sliding table saws is used in:

• furniture manufacturing plants specialising in cutting laminated panels and MDF,
• production of structural elements from wood and wood-based materials,
• precision work where flawless edge quality is required,
• automation of workstations as a supporting element for serial cutting processes.

Standard equipment

• Clamping beam with a length of 3200 mm
• 4 pneumatic cylinders (2 per section)
• Set of fittings for connection to the pneumatic system
• Mounting brackets for installation on the worktable

Optional equipment*

• Quick air release module
• Additional safety valve
• Foot-operated control system (pneumatic pedal)
• Integration with the saw control panel

Technical data

Looking for a reliable solution that improves cutting quality and safety? Choose the 3200 mm pneumatic clamping system for sliding table saws and increase the efficiency of your workshop. Contact our technical consultant to match the solution to your machine.

*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.
