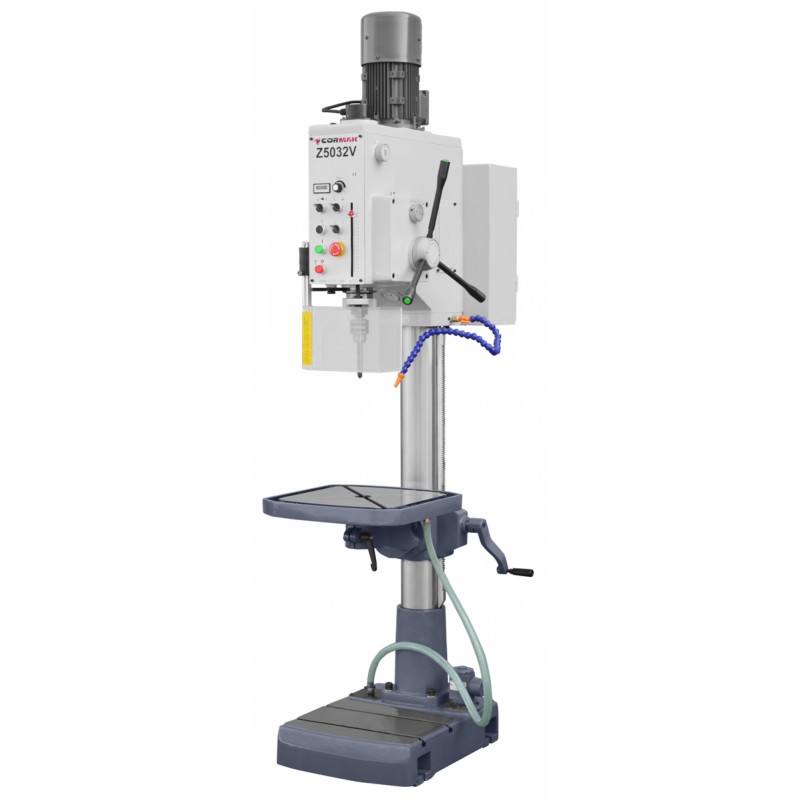

Z5032 VARIO Column Drilling Machine
Vario model, equipped with smooth spindle speed adjustment.
Are you a member of the VIES group?
VAT included
€3,729.75
The lowest price of this product in the last 30 days before the discount was €3,632.78 gross
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Very efficient column drilling machine ensuring optimal drilling results. It is equipped with a large worktable, smooth spindle speed adjustment, left/right rotations and an adjustable drilling depth limiter with a scale.
- Work area lighting
- Spindle autofeed
- Tapping capability
- Base with T-slots
- Table tilt and height adjustment
- Right/left rotations
- Drilling depth indicator
- Spindle speed electronic indicator
Technical data
|
Maximum drilling diameter |
32 mm |
|
Maximum steel / cast iron thread diameter |
16 / 22 mm |
|
Spindle taper |
MK4 |
|
Spindle stroke |
170 mm |
|
Distance from spindle centre to column surface |
295 mm |
|
Distance from spindle tip to worktable |
690 mm |
|
Distance from spindle tip to base |
1200 mm |
|
Spindle speed (2 ranges) |
90–980 rpm |
|
Feed ranges |
0.06 / 0.12 / 0.18 mm/turn |
|
Worktable dimensions |
460×460 mm |
|
Base dimensions |
620×450 mm |
|
T-slots width |
14 mm |
|
Motor power |
1.5 kW |
|
Dimensions |
900×500×2200 mm |
|
Weight |
310 kg |
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
street Brzeska 120, 08-110 Siedlce, Poland
