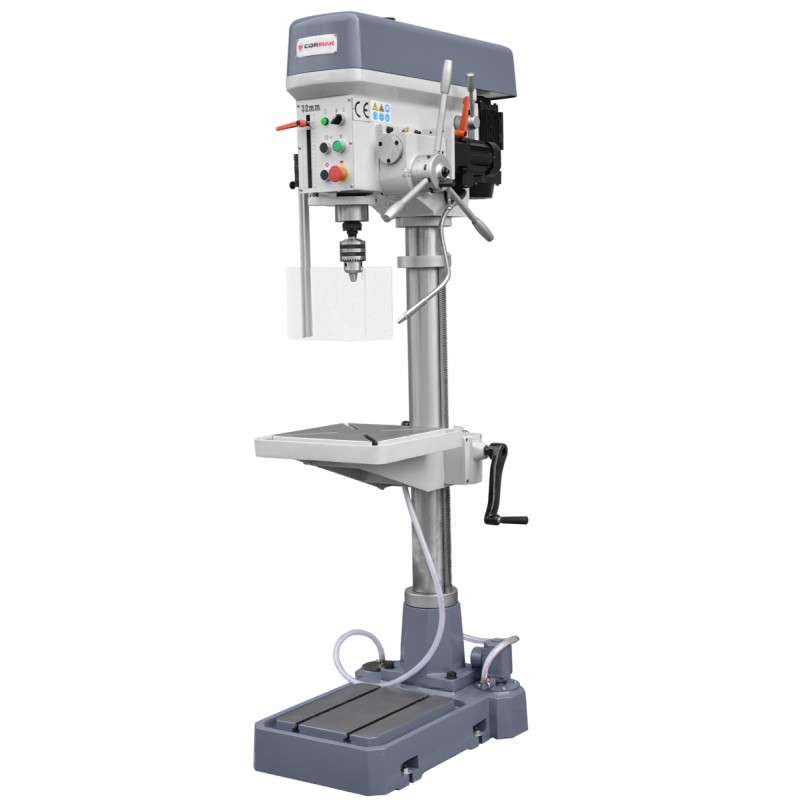

WS32BGP Column Drilling Machine
Powerful and efficient 190 cm high column drilling machine for industrial purposes. Equipped with spindle autofeed, a great cooling system and a metal plate. This machine also features automatic rotation switch during tapping, two worktables and the newest generation induction motor, which, along with the properly designed belt drive, ensures high power and great efficiency.
Variant
Z5020 BF Vario metal pole drill
Z5020 Vario Column Drilling Machine
Z5020 Vario Column Drilling Machine 400V
25 mm Column Drilling Machine
32 mm Column Drilling Machine
WS32GP Column Drilling Machine
Z5028W Column Drilling Machine
Industrial gear drill CORMAK ZS-40HS
CORMAK ZS-40HS industrial gear drill + set of threading holders
CORMAK ZS-40B industrial gear drill with autofeed
CORMAK ZS-40B industrial gear drill with autofeed + set of threading holders
Z5040L Column Drilling Machine with Angular Cube Table
Z5050 Column Drilling Machine
Are you a member of the VIES group?
VAT included
€2,214.00
The lowest price of this product in the last 30 days before the discount was €2,156.44 gross
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Machine features
- Autofeed
- Sturdy spindle
- Tapping done through the automatic left rotation switching
- Left rotation switch
- Headstock, column, table and column base made of the highest quality castings
- Spindle and gearbox shafts made of hardened and thermally processed steel
- Integrated LED lamp
- High motor power
- Large spindle stroke
- Readable control panel
- U-type spindle guard with a limiting switch, EC regulation compliant
- Manually raised, 360 rotational worktable with T-slots
- Belt drive guard with a limiting emergency switch
- EC certification
- Adjustable drill chuck with a key and a Morse taper mount
- Wedge for taper release
Technical data
|
Maximum steel drilling diameter |
32 mm |
|
Maximum steel tapping diameter |
M20 mm |
|
Column diameter |
100 mm |
|
Spindle stroke |
150 mm |
|
Distance from spindle to column |
265 mm |
|
Worktable raising range |
820 mm |
|
Table rotation around column range |
360° |
| Maximum distance from spindle to base |
1235 mm |
|
Spindle mount |
MK3 |
|
Speed |
140, 250, 380, 500, 580, 850, 1250, 1960 rpm |
|
Number of speeds |
8 |
|
Table dimensions |
334×334 mm |
|
Base dimensions |
310×380 mm |
|
Machine height |
1900 mm |
|
Motor power |
1.5 kW |
|
Feed motor power |
0.12 kW |
|
Power supply |
400V |
|
Net weight |
310 kg |
|
Packaging dimensions |
1040×640×2050 mm |
Manufacturer: Cormak
