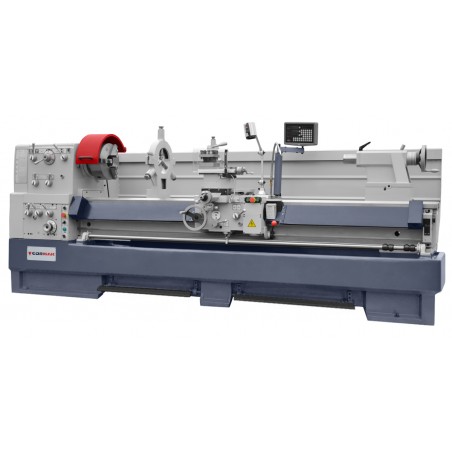

560x3000 Universal Lathe
A modern lathe for metal equipped with a rapid feed, a multi-plate clutch and a digital readout, resulting in a great solution for professional and industrial applications.
Are you a member of the VIES group?
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Machine features
- Inductively hardened and precisely ground bed
- Sturdy cast iron design
- Equipped with a quick longitudinal and transverse movement
- Main arbor with ball bearings
- 105 mm spindle bore
- 3 axes digital readouts
Technical data
|
Centres distance |
3000 mm |
|
Centres height |
280 mm |
|
Swing over bed |
560 mm |
|
Swing over gap bridge |
785 mm |
|
Swing over slide |
355 mm |
|
Bed width |
350 mm |
|
Spindle bore |
105 mm |
|
Spindle taper |
D1-8 Camlock |
|
Spindle speed |
(12) 25–1600 rpm |
|
Maximum tool dimensions |
25×25 |
|
Longitudinal feed range |
(35) 0.059–1.64 mm/turn |
|
Transverse feed range |
(35) 0.020–0.573 mm/turn |
|
Metric thread |
(47) 0.2–14 mm |
|
Inch thread |
(60) 2–112 Gg/1“ |
|
Modular thread |
(39) 0.1–7 MP |
|
D.P. thread |
(50) 4–112 MP |
|
Tailstock quill diameter |
75 mm |
|
Tailstock quill extension |
180 mm |
|
Tailstock taper |
MK5 |
|
Motor power |
7.5 kW (10 KM) |
|
Pump motor power |
0.1 kW |
|
Dimensions |
4340×1150×1460 mm |
|
Weight |
3100 kg |
Default equipment
- PO3-315 mm / D8 steel 3-jaw chuck
- K72-400 mm / D8 independent 4-jaw lathe chuck
- Handling tools
- 450 mm face plate
- Up to 180 mm clearance steady rest
- Up to 120 mm clearance follow rest
- 2 centering centres
- Magnetic brake compliant with the EC regulation
- Electromechanical spindle brake
- Filled with Shell Tellus 46 oil
- Rapid feed
- Cooling system
- Halogen lighting
- Change gears
- Chips container
- 3 axes digital readout
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
street Brzeska 120, 08-110 Siedlce, Poland
