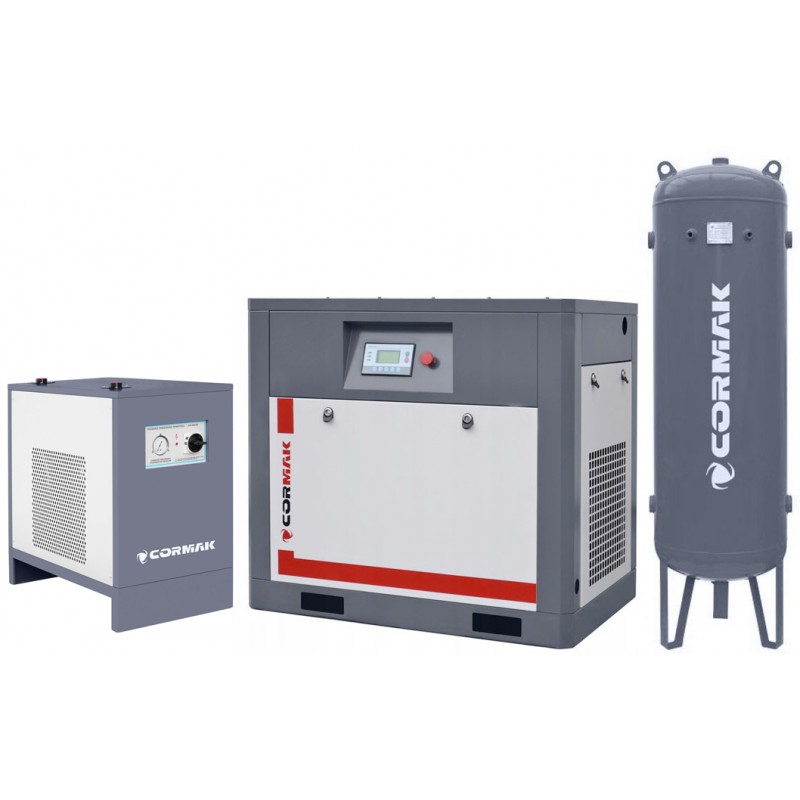

THEOR 20 compressor set with inverter - 15kW - 2000 L/min. + IZBERG N20S dehumidifier + 500 L vertical cylinder

Reduced price

Set containing THEOR 20 INVERTERscrew compressor equipped with an inverter of the Polish brand CORMAK, a vertical compressed air cylinder with a capacity 500 land theIZBERG N20Sdehumidifier. The screw compressor of the Polish brand CORMAK, the THEOR series, is the most modern solutions used in pneumatics combined with the use of high-quality materials and components. Low operating costs, ease of use, ergonomic and solid construction and high efficiency of the device guarantee effective and trouble-free operation.

Variant

THEOR 30 compressor set with inverter + IZBERG N30S dehumidifier + 500L vertical cylinder

THEOR 30 compressor set with inverter - 22kW - 3200 L/min. + IZBERG N30S dehumidifier + 1000L vertical cylinder

LUFT 1000 Compressor Set - 7.5kW - 950 L/min. + IZBERG N10S dehumidifier + 500 L vertical cylinder

LUFT 1000 Compressor Set - 7.5kW - 950 L/min. + IZBERG N10S dehumidifier + 1000 L vertical cylinder

THEOR 50 compressor set with inverter - 37kW - 7000 L/min. + IZBERG N75S dehumidifier + 1000L vertical cylinder

Set THEOR 50 compressor with inverter + IZBERG N75S dehumidifier + 500L vertical cylinder

THEOR 75 compressor set with inverter + IZBERG N75S dehumidifier + 500L vertical cylinder

THEOR 75 compressor set with inverter + IZBERG N75S dehumidifier + 1000L vertical cylinder

Set LUFT 700 compressor + IZBERG N10S dehumidifier + 500 L vertical cylinder

THEOR 50 set + 500 L vertical cylinder

LUFT 700 Compressor Set - 5.5kW - 650L/min. + 500 L vertical cylinder

LUFT 700 Compressor Set - 5.5kW - 650L/min.+ Vertical cylinder 270 L

LUFT 700 Compressor Set - 5.5kW - 650 L/min. + IZBERG N10S dehumidifier + 270 L vertical cylinder

LUFT 1000 Compressor Set - 7.5kW - 750 L/min. + IZBERG N10S dehumidifier + 270 L vertical cylinder

LUFT 400 Compressor Set - 3.0kW - 380L/min. 230V + 270 L Vertical Cylinde

LUFT 400 Compressor Set - 3.0kW - 380L/min. 230V + N10S Dehumidifier + 270 L Vertical Cylinder

Compressor set LUFT 700 - 5.5kW - 650L/min. + Vertical bottle 200 L

Set Compressor LUFT 700 - 5.5kW - 650 L/min. + Dryer IZBERG N10S + Vertical bottle 200 L

Compressor set LUFT 400 - 3.0kW - 380L/min. 230V + Vertical bottle 200 L

LUFT 400 Compressor Set - 3.0kW - 380L/min. 230V + N10S dehumidifier + 200 L vertical cylinder

Have questions? Call us!

+48 25 631 00 27 ext.105

export@cormak.pl

Are you a member of the VIES group?

Yes - show prices with VAT 0%

VAT included

~~€6,725.00~~

€6,625.00

The lowest price of this product in the last 30 days before the discount was €6,575.00 gross

access_time Shipping time: 7 working days after receipt of payment

Instructions in Polish
Service
Warranty 12/24 months
Delivery
200,00 PLN

The most important advantages:

INVERTER - The system of stepless regulation of compressor speed is the most economical method of regulation. The most important advantage - compared to compressors with traditional control, lower electricity consumption and maintaining a constant set pressure
strong, compact design of a screw compressor from a European manufacturer
automation based on modern and quality-tested components to ensure safe and effective work
a specially designed cooler ensures optimal operating conditions even when the device is heavily loaded
connection of the radiator to the module through good quality hydraulic lines
the technology used allows for significant energy savings
special air outlet design for more effective work
an efficient and solid pump is installed in the compressor
unique filtration system with three-fold separation to ensure effective operation
The compressor uses a reliable and reliable solution, which is a direct drive transmission system between the engine and the screw mechanism (via the so-called dog clutch), which ensures: high effective efficiency; more effective vibration reduction; eliminating the need for adjustments that occur in the case of traditional belt transmission
low noise of the screw compressor thanks to a specially designed soundproof housing (sound insulation boards)

THEOR 20 INVERTER compressor parameters

Engine power	15 kW
Voltage	400V/50Hz
Performance 0-6 bar	2100 l/min
Performance at 6 bar	2000 l/min
Performance at 8 bar	1700 l/min
Performance at 10 bar	1600 l/min
Departure	3/4'
Dimensions	1080 x 750 x 1000 mm
Weight	460 kg

Parameters of the N20S dehumidifier

AIR OUTLET AND INLET PIPE DIAMETER (BSP)	1 "
WORK IN PRESSURE SYSTEMS	UP TO 10 BAR
INLET TEMPERATURE	≤38°C
DEW POINT TEMPERATURE	3°C at working overpressure
PERFORMANCE	2800 l/min
POWER	0.58 kW
TENSION	230 V
DIMENSIONS (L x W x H)	420x700x690 mm
WEIGHT	37 kg
TYPE AND QUANTITY OF REFRIGERANT	R134a, 550 g

Parameters of the 500l tank:

Weight (kg):	145.00
Connections:	8
Connection size:	1/2", 2"
Size:	209.8 x 60cm
Tank capacity (l):	500
Working pressure (bar):	11
Diameter (mm):	Ø 600
Height (mm):	2100
