37 kW 7000 L/min. 10 bar

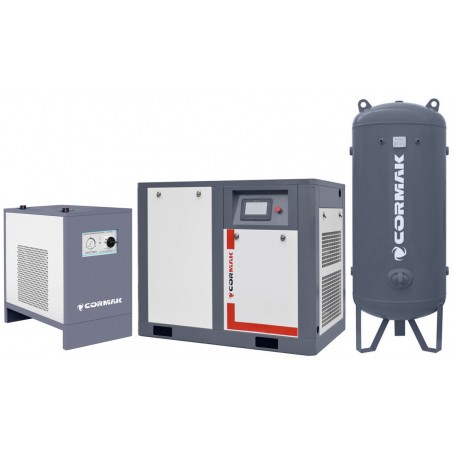

Set containing THEOR 50 INVERTERscrew compressor equipped with an inverter of the Polish brand CORMAK, a vertical compressed air cylinder with a capacity 500 land theIZBERG N75Sdehumidifier. The screw compressor of the Polish brand CORMAK, the THEOR series, is the most modern solutions used in pneumatics combined with the use of high-quality materials and components. Low operating costs, ease of use, ergonomic and solid construction and high efficiency of the device guarantee effective and trouble-free operation.

VAT included
€13,907.42
€13,807.42
The lowest price of this product in the last 30 days before the discount was €13,435.63 gross
There are not enough products in stock


  • CE
  • Instrukcja
    po polsku
  • Serwis
  • Gwarancja
    12/24
    miesięcy
  • Dostawa
    Gratis

The most important advantages:

  • INVERTER - The system of stepless regulation of compressor speed is the most economical method of regulation. The most important advantage - compared to compressors with traditional control, lower electricity consumption and maintaining a constant set pressure
  • strong, compact design of a screw compressor from a European manufacturer
  • automation based on modern and quality-tested components to ensure safe and effective work
  • a specially designed cooler ensures optimal operating conditions even when the device is heavily loaded
  • connection of the radiator to the module through good quality hydraulic lines
  • the technology used allows for significant energy savings
  • special air outlet design for more effective work
  • an efficient and solid pump is installed in the compressor
  • unique filtration system with three-fold separation to ensure effective operation
  • The compressor uses a reliable and reliable solution, which is a direct drive transmission system between the engine and the screw mechanism (via the so-called dog clutch), which ensures: high effective efficiency; more effective vibration reduction; eliminating the need for adjustments that occur in the case of traditional belt transmission
  • low noise of the screw compressor thanks to a specially designed soundproof housing (sound insulation boards)

THEOR 50 INVERTER compressor parameters

Engine power 37 kW
Voltage 400V/50Hz
Performance at 0-6 bar 7700 l/min
Performance at 6 bar 7000 l/min
Performance at 8 bar 6300 l/min
Performance at 10 bar 5600 l/min
Departure 1 1/4"
Dimensions 1500 x 1000 x 1330 mm
Weight 830 kg

N75S dehumidifier parameters

AIR OUTLET AND INLET PIPE DIAMETER (BSP) 2"
WORK IN PRESSURE SYSTEMS UP TO 10 BAR
INLET TEMPERATURE ≤38°C
DEW POINT TEMPERATURE 3°C at working overpressure
PERFORMANCE 11500 l/min
POWER 2.13 kW
TENSION 230 V
DIMENSIONS (L x W x H) 1200 x 650 x 970 mm
WEIGHT 170 kg
TYPE AND QUANTITY OF REFRIGERANT R410a, 1300 g

Parameters of the 500l tank:

Weight (kg): 145.00
Connections: 8
Connection size:  1/2", 2"
Size:  209.8 x 60cm
Tank capacity (l):  500
Working pressure (bar): 11
Diameter (mm): Ø 600
Height (mm): 2100

Tank accessories:

<ul style="list-style-type: d
