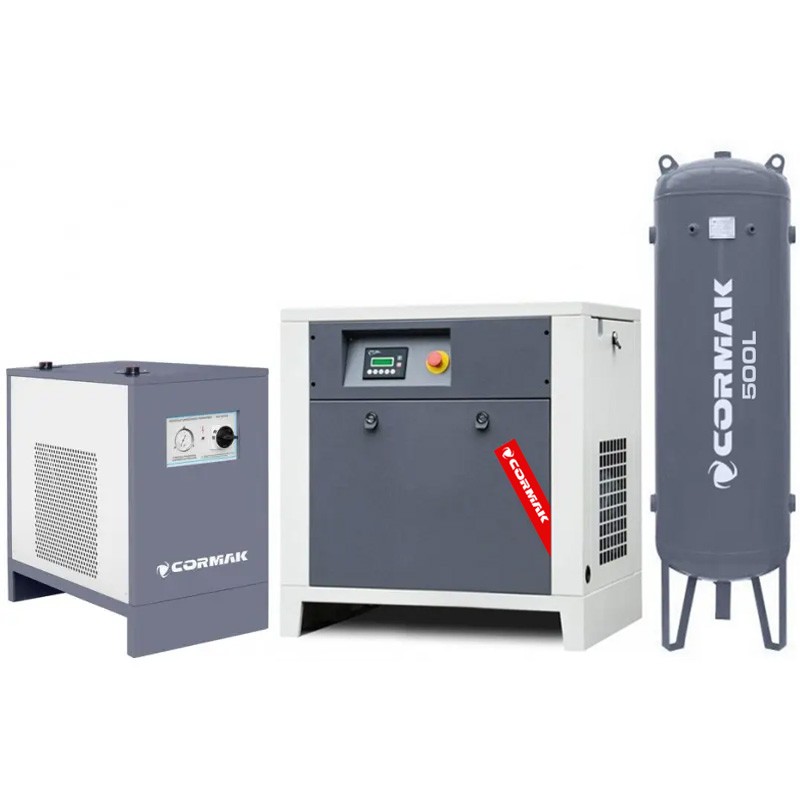

Set LUFT 700 compressor + IZBERG N10S dehumidifier + 500 L vertical cylinder

Set containing theLUFT 700 screw compressor, a vertical cylinder with compressed air equipment with a capacity of500 l and an IZBERG dryer N10S. The screw compressor of the Polish brandCORMAK, theLUFTseries, is the most modern solutions used in pneumatics combined with the use of high-quality materials and components. Low operating costs, ease of use, ergonomic and solid construction and high efficiency of the device guarantee effective and trouble-free operation.

Variant

THEOR 30 compressor set with inverter + IZBERG N30S dehumidifier + 500L vertical cylinder

THEOR 30 compressor set with inverter - 22kW - 3200 L/min. + IZBERG N30S dehumidifier + 1000L vertical cylinder

LUFT 1000 Compressor Set - 7.5kW - 950 L/min. + IZBERG N10S dehumidifier + 500 L vertical cylinder

LUFT 1000 Compressor Set - 7.5kW - 950 L/min. + IZBERG N10S dehumidifier + 1000 L vertical cylinder

THEOR 50 compressor set with inverter - 37kW - 7000 L/min. + IZBERG N75S dehumidifier + 1000L vertical cylinder

Set THEOR 50 compressor with inverter + IZBERG N75S dehumidifier + 500L vertical cylinder

THEOR 75 compressor set with inverter + IZBERG N75S dehumidifier + 500L vertical cylinder

THEOR 75 compressor set with inverter + IZBERG N75S dehumidifier + 1000L vertical cylinder

THEOR 50 set + 500 L vertical cylinder

THEOR 20 compressor set with inverter - 15kW - 2000 L/min. + IZBERG N20S dehumidifier + 500 L vertical cylinder

THEOR 50 set + 500 L vertical cylinder

LUFT 700 Compressor Set - 5.5kW - 650L/min. + 500 L vertical cylinder

LUFT 700 Compressor Set - 5.5kW - 650L/min.+ Vertical cylinder 270 L

LUFT 700 Compressor Set - 5.5kW - 650 L/min. + IZBERG N10S dehumidifier + 270 L vertical cylinder

LUFT 1000 Compressor Set - 7.5kW - 750 L/min. + IZBERG N10S dehumidifier + 270 L vertical cylinder

LUFT 400 Compressor Set - 3.0kW - 380L/min. 230V + 270 L Vertical Cylinde

LUFT 400 Compressor Set - 3.0kW - 380L/min. 230V + N10S Dehumidifier + 270 L Vertical Cylinder

Compressor set LUFT 700 - 5.5kW - 650L/min. + Vertical bottle 200 L

Set Compressor LUFT 700 - 5.5kW - 650 L/min. + Dryer IZBERG N10S + Vertical bottle 200 L

Compressor set LUFT 400 - 3.0kW - 380L/min. 230V + Vertical bottle 200 L

LUFT 400 Compressor Set - 3.0kW - 380L/min. 230V + N10S dehumidifier + 200 L vertical cylinder

Have questions? Call us!

+48 25 631 00 27 ext.130

export@cormak.pl

Are you a member of the VIES group?

Yes - show prices with VAT 0%

VAT included

€3,887.50

The lowest price of this product in the last 30 days before the discount was €3,837.50 gross

access_time Shipping time: 7 working days after receipt of payment

Instructions in Polish
Service
Warranty 12/24 months
Delivery
Free

The most important advantages

strong, compact design of a screw compressor from a European manufacturer
automation based on modern and quality-tested components to ensure safe and effective work
specially designed cooler ensures optimal operating conditions even when the device is heavily loaded
connection of the radiator to the module via good quality hydraulic lines
the technology used allows for significant energy savings
special air outlet design for more efficient work
an efficient and solid pump is installed in the compressor
unique filtration system with three-fold separation for efficient operation
The compressor uses a reliable and reliable drive system using a belt transmission, which ensures high effective efficiency
low noise of the screw compressor thanks to a specially designed soundproof housing (sound insulation boards)
electronic control from the MAM series allows you to set parameters, including: periods between service inspections, power failure alarms, changes phase direction, phase loss, overheating, others, operation in Master/Slave mode, ability to connect up to 16 devices in a pneumatic network, possibility of remote control using a computer and others

Technical parameters of LUFT 700

Engine power	5.5 kW
Voltage	400V/50Hz
Dimensions	810 x 610 x 850 mm
Weight	120 kg
Performance	0-6 bar - average 690 L/min At 6 bar - 650 L/min < /b>At 8 bar - 650 L/min At 10 bar - 630 L/min
Dimension of the outlet port (G)	1/2"

N10S technical parameters

AIR OUTLET AND INLET PIPE DIAMETER (BSP)	1"
WORK IN PRESSURE SYSTEMS	UP TO 10 BAR
INLET TEMPERATURE	≤38°C
DEW POINT TEMPERATURE	3°C at working overpressure
PERFORMANCE	1500 l/min
POWER	0.58 kW
TENSION	230 V
DIMENSIONS (L x W x H)	380x600x625 mm
WEIGHT	31 kg
TYPE AND QUANTITY OF REFRIGERANT	R134a, 400 g
