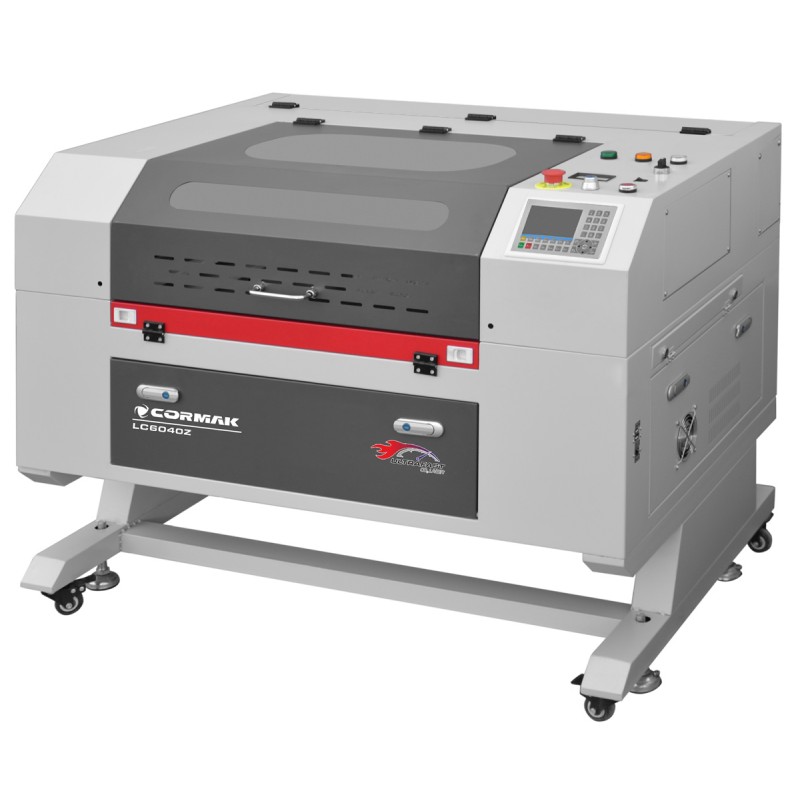

Perfect for engraving, marking, cutting.
The working area of the laser plotter is 600×400 mm.
The price of the plotter includes, among others: a red spot, a honeycomb layout patch as well as a scissor lifting table and an integrated exhaust extractor on the back panel, a container for waste, an integrated compressor, a fan and a cooling system.
The latest series of high-speed lasers for cutting and engraving. It saves work time and increases company competitiveness.
Ultrafast lasers are a guarantee of your success!
LASER CUTTING PROCESS
Laser cutting is a modern and widely used technique of machining materials. The cutting tool in this technique is a laser beam of high density energy, which cuts the material. Laser cutting is a great choice for machining metal, non-metal and composite materials. Thus, it is quite popular.
The course of the laser cutting process
The process of laser cutting is based on the phenomenon of the laser beam working at its focal length, where the density and power of the beam particles are the highest, causing sudden melting, evaporation, ablation and heating of the material cut to the temperature of ignition. The place of the beam connecting with the material is cleaned with a quickly flowing gas, which removes the melted material while flowing in the axis of the moving beam. Laser cutting belongs to the hot machining techniques.
| LASER POWER | 80 W (Reci W1 tube) (option: 90W, 130W, 160W, 180W) |
| CUTTING AREA | 600x400 mm |
| DIMENSIONS | 1150 x 800 x 900 mm |
| WEIGHT | 135 kg |
| POSITIONING ACCURACY | ± 0.05 mm |
| VOLTAGE | 230V |
| POWER | 800W |
| WORKING TEMPERATURE | 0-45 ℃ |
| HUMIDITY DURING WORK | 5-95% |
| OPERATING SYSTEM | Windows 95, 98, 2000, XP, Vista, 7, 8, 10 (32/64 bit) |
| INPUT FILE FORMATS | PLT, AI, DST, DXF, BMP |
| COMPATIBLE SOFTWARE | CorelDraw AutoCAD Photoshop |
| DRIVE TYPE | Stepper motors |
| HEAD COOLING | Water |
| MATERIAL COOLING | air, gas |
American optics from American Photonics. Proven 14% improvement in transmission compared to other optics. High-strength gold-plated lenses and aspherical focusing lenses made by II-VI, USA.
High sharpness, high transmittance. The lenses can not only ensure the quality of the device, but also make the optical system work for a long time with high efficiency and low cost.
Comes with a honeycomb table.
Wood, organic glass, plastic, clothing, paper, leather, rubber and other non-metallic materials.
phone: +48 501 944 934
export@cormak.pl
phone: +48 609 939 400
export@cormak.pl
phone: +48 609 939 051
export@cormak.pl
phone: +48 609 939 741
export@cormak.pl
5070ZD1 CO2 Laser Plotter and Engraver
gross €5,384.35
Perfect for engraving, marking, cutting The working area of the laser plotter is 700x500 mm. The price of the laser plotter includes, among others: red dot, honeycomb overlay, exhaust extraction, waste drawer, integrated compressor, fan and cooling that can be started up for operation.
LC1390D laser engraving plotter
gross €9,717.94
Ideal for engraving, marking, cutting from single to large series. The working area of the Laser-1390D Laser Plotter is 1300x900 mm. The price of the laser plotter includes: a red point, an electrically lowered platform up to 300 mm, a honeycomb overlay and a scissor table, exhaust gas extraction: bottom with a waste drawer, integrated compressor, fan, cooling. The advantage of the engraving machine is the "through table", which allows the processing of materials of any length, width 1300 mm and height up to 100 mm.
LC 1612ZD1 laser engraving plotter
gross €12,025.63
Perfect for engraving, marking, cutting from single to large series. The working area of the Laser LC 1612ZD1 Laser Plotter is 1600x1200 mm. The price of the laser plotter includes: red point, electrically lowered platform up to 300 mm, honeycomb overlay and scissor table, lower exhaust gas extraction with waste drawer, integrated compressor, fan, cooling. The advantage of the engraving machine is the "pass-through table", which allows the processing of materials of any length, 1600 mm wide and 100 mm high, or any width and length 1200 mm.
LC1390ZD2 laser engraving plotter - 2 heads
gross €12,794.86
Perfect for engraving, marking, cutting from single to large series. Equipped with two laser heads, each with a power of 160W. The working area of the Laser-1390ZD2 Laser Plotter is 1300x900 mm. The price of the laser plotter includes: red point, electrically lowered platform up to 300 mm, honeycomb overlay and scissor table, lower exhaust gas extraction with waste drawer, integrated compressor, fan, cooling. The advantage of the engraving machine is the "pass-through table", which allows the processing of materials of any length, width 1300 mm and height 100 mm, or any width and length 900 mm.
CO2 laser engraving plotter Laser LC1390ZD1
gross
€10,230.76
€9,923.07
Ideal for engraving, marking, cutting from single to large series. The working area of the Laser-1390ZD1 laser plotter is 1300x900 mm. The price of the laser plotter includes: red dot, electrically lowered platform up to 300 mm, honeycomb overlay and scissor table, exhaust extraction: bottom with waste drawer, integrated commissionable compressor, fan, cooling. The highlight of the engraving machine is the "through table", which allows materials of any length, 1300 mm wide and 100 mm high, or any width and 900 mm long, to be processed.
LC2030EVO WiFi CO2 Laser Plotter
gross €23,051.26
Perfect for engraving, marking, cutting from single to large series. The working area of the Laser-1530EVO laser plotter is 1500x3000 mm. The price of the laser plotter includes, among others: red point, scissor table, two lower exhaust extractors with a waste drawer, integrated compressor, fan, cooling that starts up for operation.
LC6090ZD1 CO2 Laser Plotter and Engraver
gross €5,640.76
Perfect for engraving, marking, cutting singular elements as well as large scale operation. The working area of the 1390N laser plotter is 600x900 mm. The price of the plotter includes, among others: a red spot, a platform electrically lowered down to 200 mm, a honeycomb layout patch as well as a scissor lifting table and extractor of fumes: lower with a container for waste, an integrated compressor, a fan, a cooling system.
LC6090Z CO2 Laser Plotter and Engraver - improved controll system
gross €5,127.94
Perfect for engraving, marking, cutting singular elements as well as large scale operation. The working area of the 1390N laser plotter is 600x900 mm. The price of the plotter includes, among others: a red spot, a platform electrically lowered down to 200 mm, a honeycomb layout patch as well as a scissor lifting table and extractor of fumes: lower with a container for waste, an integrated compressor, a fan, a cooling system.
LC6090Z CO2 Laser Plotter and Engraver
gross €4,974.10
Perfect for engraving, marking, cutting singular elements as well as large scale operation. The working area of the 1390N laser plotter is 600x900 mm. The price of the plotter includes, among others: a red spot, a platform electrically lowered down to 200 mm, a honeycomb layout patch as well as a scissor lifting table and extractor of fumes: lower with a container for waste, an integrated compressor, a fan, a cooling system.
gross €4,871.53
Perfect for engraving, marking, cutting The working area of the laser plotter is 700x500 mm. The price of the laser plotter includes, among others: red dot, honeycomb overlay, exhaust extraction, waste drawer, integrated compressor, fan and cooling that can be started up for operation.
LC1390Z CO2 Laser Plotter and Engraver
gross €8,845.89
Perfect for engraving, marking, cutting singular elements as well as large scale operation. The working area of the 1390N laser plotter is 1300×900 mm. The price of the plotter includes, among others: a red spot, a platform electrically lowered down to 200 mm, a honeycomb layout patch as well as a scissor lifting table and extractor of fumes: lower with a container for waste, an integrated compressor, a fan, a cooling system.
LC1530EVO WiFi CO2 Laser Plotter
gross
€21,282.03
€19,205.11
Perfect for engraving, marking, cutting from single to large series. The working area of the Laser-1530EVO laser plotter is 1500x3000 mm. The price of the laser plotter includes, among others: red point, scissor table, two lower exhaust extractors with a waste drawer, integrated compressor, fan, cooling that starts up for operation.
LC2050EVO WiFi CO2 Laser Plotter
gross €28,179.46
Perfect for engraving, marking, cutting from single to large series. The working area of the Laser-1530EVO laser plotter is 1500x3000 mm. The price of the laser plotter includes, among others: red point, scissor table, two lower exhaust extractors with a waste drawer, integrated compressor, fan, cooling that starts up for operation.
LC 1610D laser engraving plotter
gross €11,512.81
Perfect for engraving, marking, cutting from single to large series. The working area of the Laser LC 1610D Laser Plotter is 1600x1000 mm. The price of the laser plotter includes: red point, electrically lowered platform up to 300 mm, honeycomb overlay and scissor table, lower exhaust gas extraction with waste drawer, integrated compressor, fan, cooling. The advantage of the engraving machine is the "pass-through table", which allows the processing of materials of any length, width of 1600 mm and height of up to 100 mm.
gross €11,666.40
Perfect for engraving, marking, cutting singular elements as well as large scale operation. The working area of the LC 1325C laser plotter is 1300×2500 mm. The price of the plotter includes, among others: a red spot, a scissor table layout patch, two lower extractors of fumes with a container for waste, an integrated compressor, a fan, a cooling system.
LC2040EVO WiFi CO2 Laser Plotter
gross €26,897.41
Perfect for engraving, marking, cutting from single to large series. The working area of the Laser-2040EVO laser plotter is 20000x4000 mm. The price of the laser plotter includes, among others: red point, scissor table, two lower exhaust extractors with a waste drawer, integrated compressor, fan, cooling that starts up for operation.
Perfect for engraving, marking, cutting.
The working area of the laser plotter is 600×400 mm.
The price of the plotter includes, among others: a red spot, a honeycomb layout patch as well as a scissor lifting table and an integrated exhaust extractor on the back panel, a container for waste, an integrated compressor, a fan and a cooling system.
