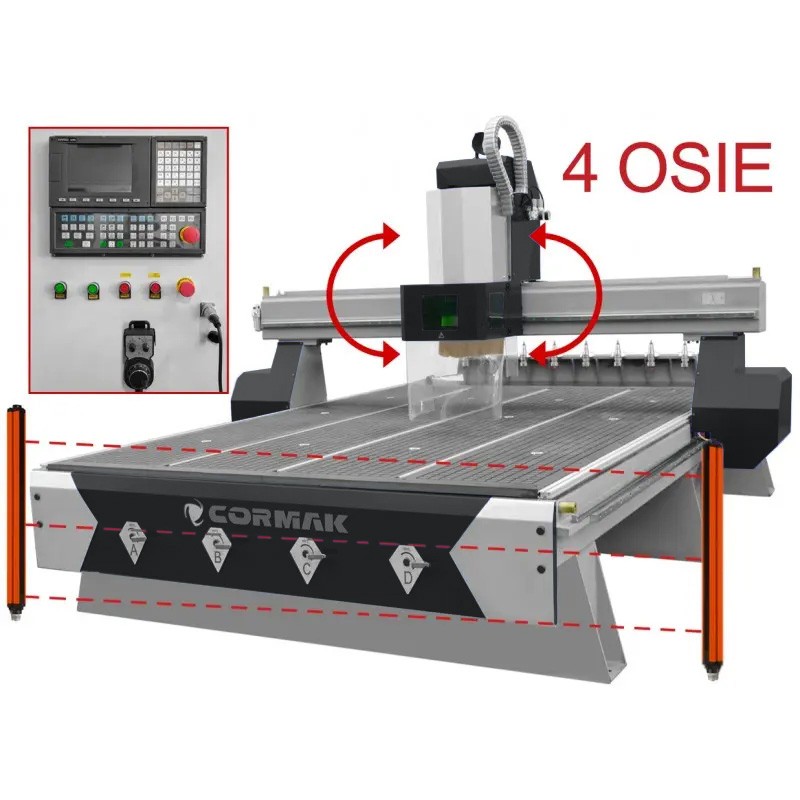

C2030 ATC CNC 4 AXIS SERVO PROFESSIONAL Milling Machine

Machine features

1. Worktable

• Worktable made in hybrid technology
• Equipped with T-slots which make it possible to manually fix 2000×3000 mm material
• Table with 4 independent vacuum sections

2. Adjustment of the table's vacuum sections

3. HQD spindle

• Brushless high grade spindle, featuring high 9 kW power
• Additionally equipped with an innovative air cooling system – not flood coolant
• Spindle design includes high-quality cartridge bearings, featuring quiet work and providing increased durability
• Spindle speed ranges from 4500 to 24000 rpm

4. 4rd Axis

• versatility of processing (cutting, drilling, milling, engraving)

• free access to the machine enabling operation by one operator

5. Vacuum pump

• Vacuum pump – 7.5 kW (max –440 mbar)
• 4 independent vacuum sections

6. and 7. Drive

• SERVOmotors are used for driving machines of high power, providing appropriate speed in all directions
• X and Y axes include high quality toothed racks providing durability and accuracy
• Z-axis is driven through a high-quality ball screw
• All axes move along rail guides
• Machine equipped with a drive height sensor
• Frame drive on toothed racks, linear guides
• Linear bearings: trapezoid rails, Hiwin

8. Design

• Moving frame made of cast iron of great rigidity, absorbing vibration
• Sturdy table design, made of high-quality materials. Heat-treated during manufacturing process

9. Tool holder

• Tool holder chuck ISO30 ER32 collet
• 8-position tool holder
• Tool height sensor
• ISO32 holders and 1/2", 4 mm, 8 mm, 10 mm tool fixture sleeves in the set

Software

• This machine is compatible with the newest version of ARTCAM PRO
• Optional: UCANCAM V11 CAD/CAM CNC software
• Software makes it possible to quickly and easily design elements which are afterwards converted by the program into the so-called G-code. It is also possible to import files from other programs

Technical data
