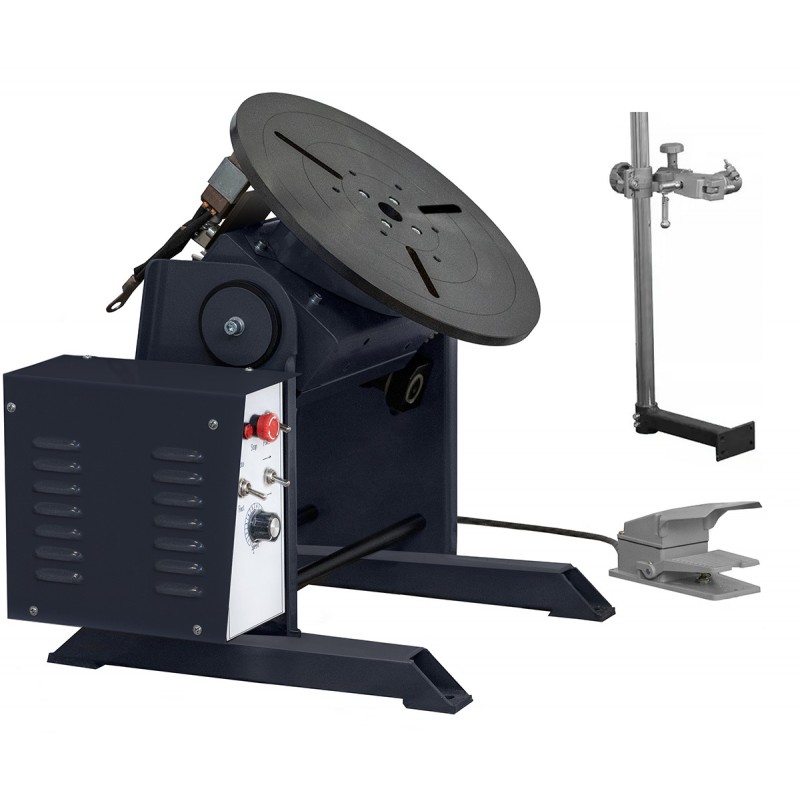

CORMAK PS-310 Welding positioner

The CORMAK PS-310 positioner is a versatile auxiliary device that can be used in various production tasks. Its wide range of possibilities makes it suitable for use wherever elements need to be manipulated. The welding, painting and mechanical industries have appreciated the quality and functionality of our positioners. CORMAK devices are the ideal solution wherever components or subassemblies need to be rotated, wound or rolled. In addition, the positioner is equipped with a tool holder adjustable in several planes.

Below we present detailed information about its functions, advantages and the contents of the set:

Functions:

1. Direction of rotation switch: Allows the operator to control the direction of rotation of the rotator disc, which is important during precise welding work.
2. Direction of rotation switch: Allows easy change of the direction of rotation of the disc, which allows flexible adaptation of the device to various tasks.
3. Smooth regulation of the plate rotation speed: Allows adjustment of the rotation speed to various materials and welding processes, which increases precision and quality of work.
4. Compact, compact design: The compact design of the device saves space in the workshop and makes it easy to move to different workstations.
5. Control pedal: Allows precise control of the rotator operation, which is important during welding and assembly of elements.
6. Thermal fuse: Protects the device from overheating, which increases work safety and durability of the machine.
7. Brush motor: Ensures stable and effective operation of the device, which is important in welding applications.
8. Plate tilt range 0 - 90°: Allows work in an optimal position, which translates into the quality of welds and the operator's comfort.
9. Possibility of mounting a centering holder: Allows accurate and stable fixing of elements, which is important for precise assembly and welding work.
10. Universal mass slot: Allows you to connect the welding mass without having to switch the mass with each table rotation, which increases comfort and efficiency work.

Advantages:

1. Higher work efficiency: Enables more efficient assembly and welding work thanks to the possibility of rotating cylindrical elements.
2. Reduction of production costs: Increased precision and quality of work contributes to reducing costs related to rejects.
3. Repeatability of made joints: Ensures constant quality of welds and joints.
4. Flexibility in use: Possibility of adjusting the speed, direction of rotation and inclination of the disc.
5. Improves the welder's working conditions: Enables welding in an optimal position, which affects the comfort and safety of work.
6. Versatility of use: It can be used in various assembly and welding processes, which makes it a valuable tool in various industries industrial.

The set includes:

1. PS-310 positioner device.
2. Control pedal.
3. Power cable.
4. Operating instructions.
5. Mast with welding torch.

Additional equipment:

1. Self-centering three-jaw chuck for WP200 pipes
2. Self-centering three-jaw chuck for WP300 pipes

Technical parameters:

• Horizontal load capacity: 30 kg
• Vertical load capacity: 15 kg
• Worktable size: φ310 mm
• Tilt angle: 0° ~ +90°
• Rotation speed: 1-15 rpm
• Rotation power: 120 W
• Tilting speed: manual
• Voltage: 220V-1PH-50HZ
• Dimensions: 500 x 500 x 440 mm
• Weight: 34 kg

Three-jaw chuck not included.
