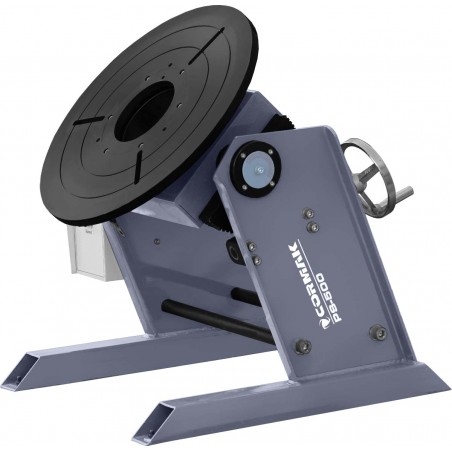

CORMAK PS-500 welding positioner

The PS-500 welding positioner from CORMAK, which will provide comprehensive support in your assembly and welding works.

The rotary welding positioner is a versatile auxiliary tool for positioning elements to be fitted, especially in simple or semi-automatic technological processes.

This device is known for its overall usefulness as it allows the welding process to be performed in an optimal position, which in turn improves the quality of the welds. It is particularly useful when welding cylindrical elements, such as pipes or tanks.

It has many advantages, such as:

Direction of rotation switch that allows precise control of the direction of rotation of the rotator disc.
Rotation direction switch.
Rotational speed regulation.
Thermal fuse
Plate tilt range 0 - 90°
Brush motor

Solid and durable construction.
Foot pedal for precise control.
It can be used in manual and partially automated production processes.
Versatile, enabling optimal welding.

Possibility to install a centering handle

0-90º TILT TABLE - The rotating screw and gear structure is equipped with a self-locking function, which allows the work table to be continuously rotated from 0 to 90 degrees. It is also possible to mount the table at any angle, which increases work flexibility.

CONTINUOUS ADJUSTMENT OF DISC ROTATIONS Adjusting the disc rotation speed allows you to adapt the device to various materials and welding processes, which increases the precision and quality of work.

Set contains:

     PS-500 positioner device.
     Control pedal.
     Power cable.
     Manual user instructions.
     Mast with welding holder.

It is also possible to install a three-jaw chuck.

.

*three-jaw chuck is not included in the set

Technical parameters:

     Maximum load: 300kg
     Worktable size: φ500mm
     Tilt angle: 0° ~ + 90°
     Rotation speed: 0.2 ~ 2.5 rpm
     Rotational power: 200W
     Tilt speed: manual
     Voltage: 220V-1PH-50HZ
     Dimensions: 700x650x710
     Weight: 97 kg
