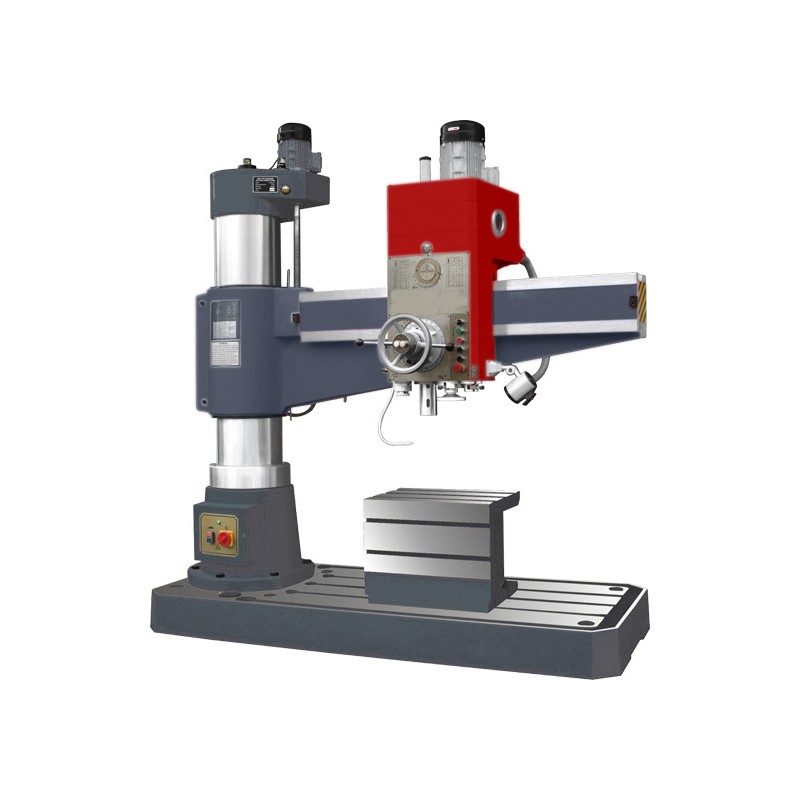

Z3080x2500 Radial Drilling Machine

  • Reduced price
Z3080x2500 Radial Drilling Machine -
  • Z3080x2500 Radial Drilling Machine -

The industrial radial drilling machine is distinguished by its solid and rigid construction, which ensures high precision and reliability during hole processing. The device allows for operations such as drilling, reaming, countersinking, boring and threading, proving itself in various industrial applications.

Have questions? Call us!

+48 25 631 00 27 ext.105

Are you a member of the VIES group?

VAT included
€51,750.00
€49,450.00
The price has not changed
There are not enough products in stock


  • CE
  • Instructions in Polish
  • Service
  • Warranty 12/24 months
  • Delivery
    Free

Machine characteristics

  • The high weight and rigid construction of the drill ensure stability and vibration-free operation
  • The cube table ensures easy adjustment and placement of the workpiece
  • Adjustment of the arm height using the engine
  • Control panel located at the front of the drill for better efficiency and ergonomics
  • The polished surface of the column ensures easy, free and precise movement of the arm
  • The drill is equipped with a manual locking of the head and column arm
  • A wide range of revolutions ensures precise and fast machining

Technical data

Max. drilling diameter 80mm
Spindle to column distance 500-2565mm
Spindle to table surface distance 500-1580mm
Spindle travel 400mm
Spindle nose MT 6
Spindle speed range (16) 16-1240 rpm
Range spindle feed (16) 0.04-3.20 mm/rev
Table dimensions 1000x800mm
Distance from horizontal headstock 2000 mm
Spindle motor power 7.5 kW
Machine weight 9550kg
Dimensions 3510x1460x3290mm

Manufacturer: Cormak

CORMAK JERZY ZALEWSKI
street Brzeska 120, 08-110 Siedlce, Poland
