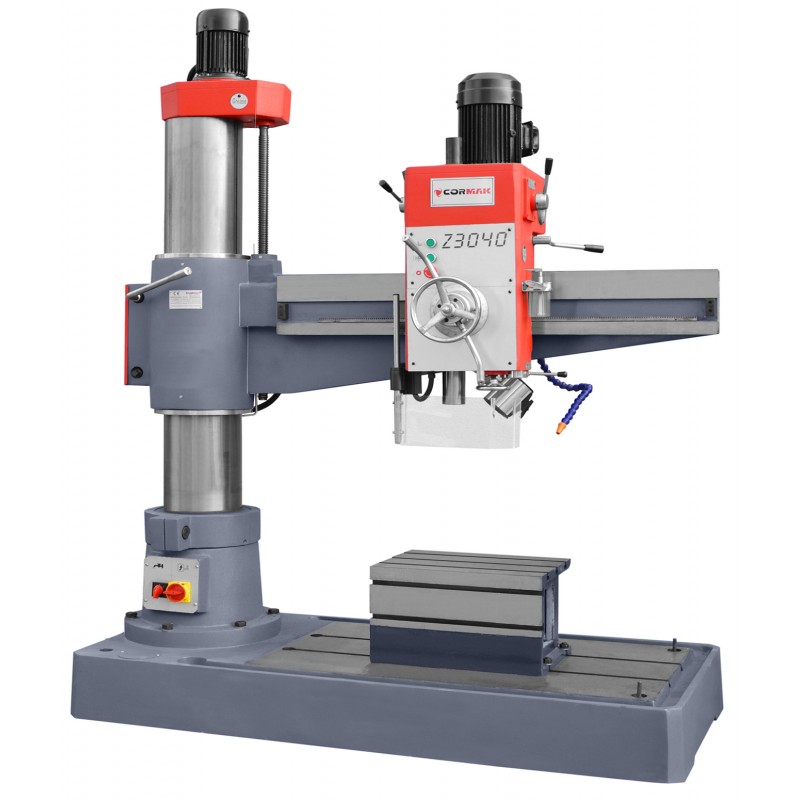

3040x1300 Radial Drilling Machine
Are you a member of the VIES group?
VAT included
€5,475.00
The lowest price of this product in the last 30 days before the discount was €5,924.75 gross
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
300,00 PLN
Machine features
- Large weight and sturdy design ensure stability and vibration-free operation
- Cube table provides adjustability and easy fixture of workpiece
- Arm height adjustment through a motor
- Control panel located at the front of the machine for improved convenience
- Ground column surface provides easy, precise arm travel
- Machine equipped with manual head and column arm limiter
- Large speed range for accurate and quick machining
Technical data
| Maximum drilling diameter | 35 mm (cast iron) 30 mm (steel) |
| Distance from spindle to base | 360–1300 mm |
| Distance from spindle axis to column surface | 260–1300 mm |
| Spindle extension | 200 mm |
| Spindle taper | MK4 |
| Spindle speed ranges | (6): 75, 130, 240, 380, 660, 1200 rpm |
| Spindle feed ranges | (3) 0.10; 0.16; 0.25 mm/turn |
| Vertical arm travel speed | 1.3 m/min |
| Arm rotation | 360° |
| Main motor power | 2.2 kW |
| Lifting motor power | 0.75 kW |
| Worktable dimensions | 510×380×305 mm |
| Machine dimensions | 800×1800×2150 mm |
| Weight | 1400 kg |
Default equipment
B16 (3-16 mm) Drilling chuck
B16/MK4 Drilling chuck mandrel
MK4/MK3 reduction
Wedge for taper removal
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
street Brzeska 120, 08-110 Siedlce, Poland
