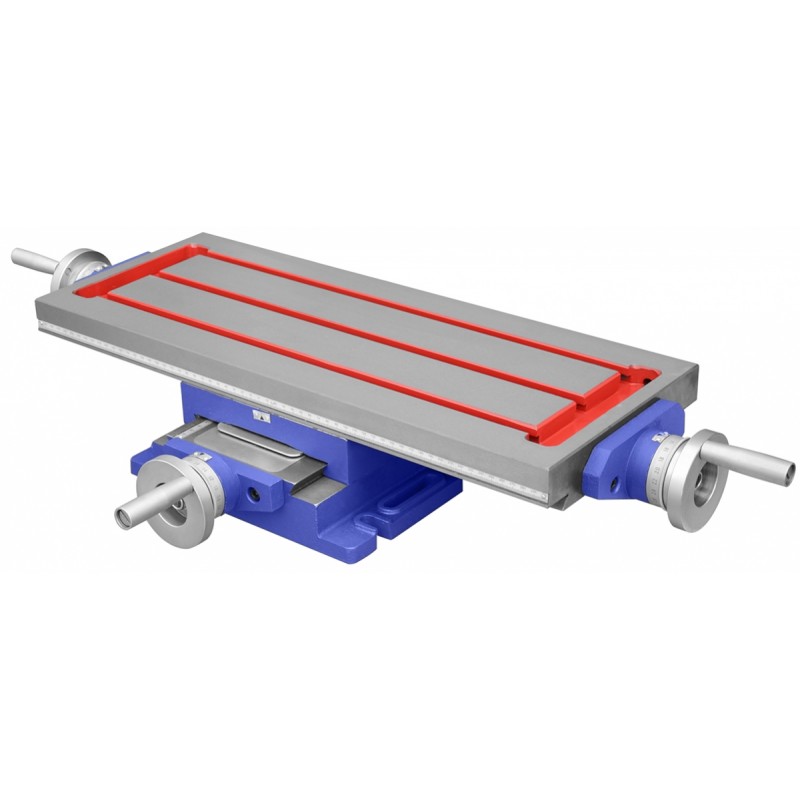

600x240 mm Cross Table

600x240 mm Cross Table - Cross slide table 600X240 mm
  • 600x240 mm Cross Table - Cross slide table 600X240 mm
  • 600x240 mm Cross Table - Cross slide table 600X240 mm
  • 600x240 mm Cross Table - Cross slide table 600X240 mm
  • 600x240 mm Cross Table - Cross slide table 600X240 mm
  • 600x240 mm Cross Table -

Precise cross table with a screw guard, dovetail-shaped slide guides greatly improve table rigidity and prevent feed wiggling.

Have questions? Call us!

+48 25 631 00 27 ext.105

Are you a member of the VIES group?

VAT included
€475.00
The lowest price of this product in the last 30 days before the discount was €474.75 gross

  • CE
  • Instructions in Polish
  • Service
  • Warranty 12/24 months
  • Delivery
    Free

Table description

  • Cross table is well-made from high-quality materials
  • Supports working with drilling, milling machines, etc., providing perfect positioning during machining processes
  • Screw guard protects the feed mechanism from chips
  • An additional benefit of the table is the pitch which provides a preview of the X,Y axes position of the table
  • 4 mm/0.02 mm vernier

KP205 technical data

A B C D E F G H J K

X-axis travel

Y-axis travel

 Dimensions Weight

600

[mm]

240

[mm]

12

[mm]

72

[mm]

125

[mm]

335

[mm]

276

[mm]

240

[mm]

245

[mm]

144

[mm]

400

[mm]

150

[mm]

772×440×180

[mm]

56

[kg]

Manufacturer: Cormak

CORMAK JERZY ZALEWSKI
street Brzeska 120, 08-110 Siedlce, Poland
