330x220 mm Cross Table

330x220 mm Cross Table - Cross slide table 330X220 mm

Precise cross table with a screw guard, dovetail-shaped slide guides greatly improve table rigidity and prevent feed wiggling.

Have questions? Call us!

+48 25 631 00 27 ext.105

export@cormak.pl

Are you a member of the VIES group?

Yes - show prices with VAT 0%

VAT included

€239.75

The lowest price of this product in the last 30 days before the discount was €233.52 gross

There are not enough products in stock

I agree to the terms and conditions and the privacy policy

Instructions in Polish
Service
Warranty 12/24 months
Delivery
Free

Table description

Cross table is well-made from high-quality materials
Supports working with drilling, milling machines, etc., providing perfect positioning during machining processes
Screw guard protects the feed mechanism from chips
An additional benefit of the table is the pitch which provides a preview of the X,Y axes position of the table
4 mm/0.02 mm vernier

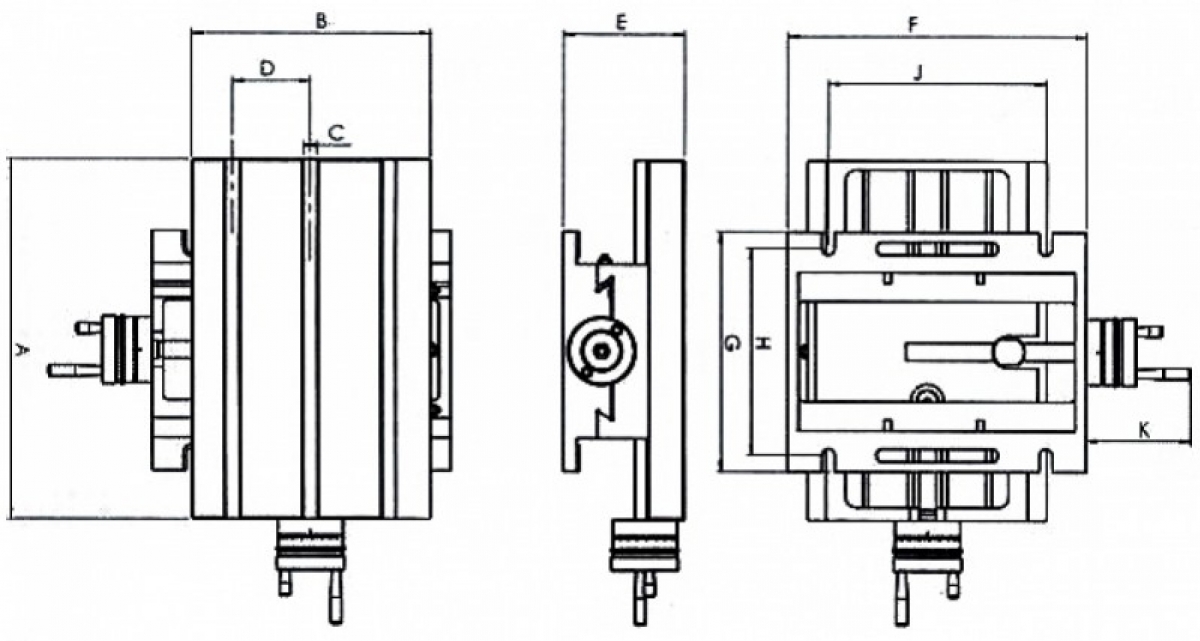

KP203 technical data

A

B

C

D

E

F

G

H

J

K

X-axis travel

Y-axis travel

Dimensions

Weight

330

[mm]

220

[mm]

12

[mm]

72

[mm]

115

[mm]

275

[mm]

220

[mm]

190

[mm]

275

[mm]

96

[mm]

190

[mm]

100

[mm]

410×356×173

[mm]

26

[kg]

Manufacturer: Cormak

CORMAK JERZY ZALEWSKI
street Brzeska 120, 08-110 Siedlce, Poland
