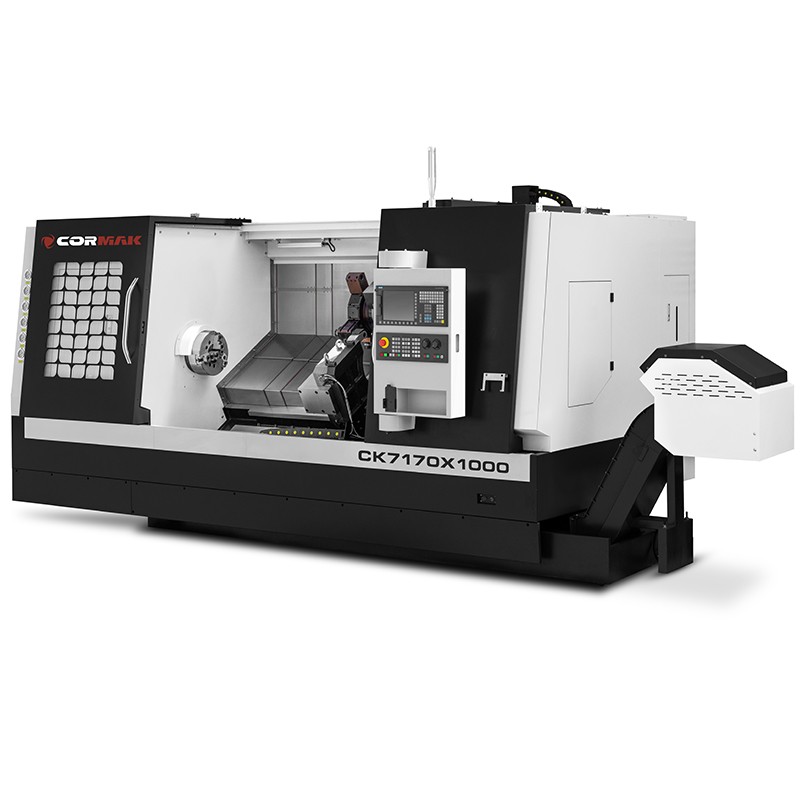

CNC Lathe CK7170X1000 HYDRAULIC 12 TOOL HOLDER SIEMENS SINUMERIK 808D

CNC lathe Cormak is a response to the needs of modern industry. Based on SIEMENS technology and Schneider components, the machine combines modernity with durability. Large workspace, high rigidity of the slanted bed make this machining center perfect for tool shops, serial and unit production. The set includes: hydraulic chuck, tailstock, air-conditioned control cabinet, chip receiver, driven holders, cooling system, SIEMENS OR FANUC controllers - ready to work immediately after delivery.

Have questions? Call us!

+48 25 631 00 27 ext.105

export@cormak.pl

Are you a member of the VIES group?

Yes - show prices with VAT 0%

VAT included

€79,550.00

The price has not changed

There are not enough products in stock

I agree to the terms and conditions and the privacy policy

Instructions in Polish
Service
Warranty 12/24 months
Delivery
Free

A modern CNC lathe with a solid, slanted bed and a fast 12-position tool head offers the highest precision, efficiency and versatility of processing. The machine was designed to work in production conditions - it allows for comprehensive processing of details. Thanks to the use of renowned Siemens and Schneider components, the lathe guarantees long life and reliability.

The most important technical parameters

Turning diameter over bed	700 mm
Turning diameter over support	470 mm
Max workpiece length	1000 mm
Travel in X / Z axis	860/290 mm
Through spindle	72 mm
Spindle speed	2500 rpm /min.
Spindle motor	SIEMENS 11 kW (15 kW)
Lathe chuck	hydraulic 3-jaw, Ø305 mm
Tool head	12 positions
Positioning accuracy X/Z axis	0.001 mm
Tool dimensions	20 x 20 mm
Hydraulic tailstock	Ø90 mm sleeve, 140 mm stroke
Tailstock taper	MK5
Dimensions L/W/H	5500 x 2300 x 2210 mm
Weight	7200 kg

Available equipment

SINUMERIK 808D control in Polish
linear guides - high rigidity and durability
cooling and lubrication system - automatic lubrication of gears and guides
hydraulic steady rest: Ø40 x 250 mm (OPTION)
hydraulic tailstock
full housing meeting CE standards
control cabinet air conditioning
chip receiver
USB port - fast import/export programs
service tools included
soft jaws set

CNC controls – Siemens Sinumerik 808D, SINUMERIK 828D and Fanuc Oi-TF

We offer professional CNC controls from renowned brands Siemens and Fanuc, which provide precision, efficiency and ease of use. Our solutions are ideal for both smaller workshops and demanding industrial applications.

Siemens Sinumerik 808D – compact CNC control for basic applications

Siemens Sinumerik 808D is a modern, economical CNC control dedicated to entry-level lathes and milling machines. The system was designed with small and medium-sized enterprises in mind, offering:

Intuitive operation – a simple interface based on a graphic screen that makes it easy to program and configure the machine.
High reliability – a durable design resistant to difficult working conditions in the workshop.
Wide compatibility – adapted to machines with basic technological requirements.
A perfect solution for beginner CNC users who want to start working on a modern control system.

Siemens Sinumerik 828D – advanced control for demanding applications

Sinumerik 828D is a professional CNC control designed to work with milling machines and lathes requiring greater precision and efficiency. Its key features include:

High computing power – fast data processing enables dynamic and accurate machining.
Extensive technological functions – advanced machining cycles, interpolation and tool path optimization functions.
Solid, compact design – designed to work in difficult industrial conditions.
Easy integration with automation – expandable with additional modules and production process control options.
Compatibility with CAD/CAM – seamless cooperation with design software and production management systems.

This is an excellent choice for companies looking for efficient and reliable CNC control for more complex machining operations.
