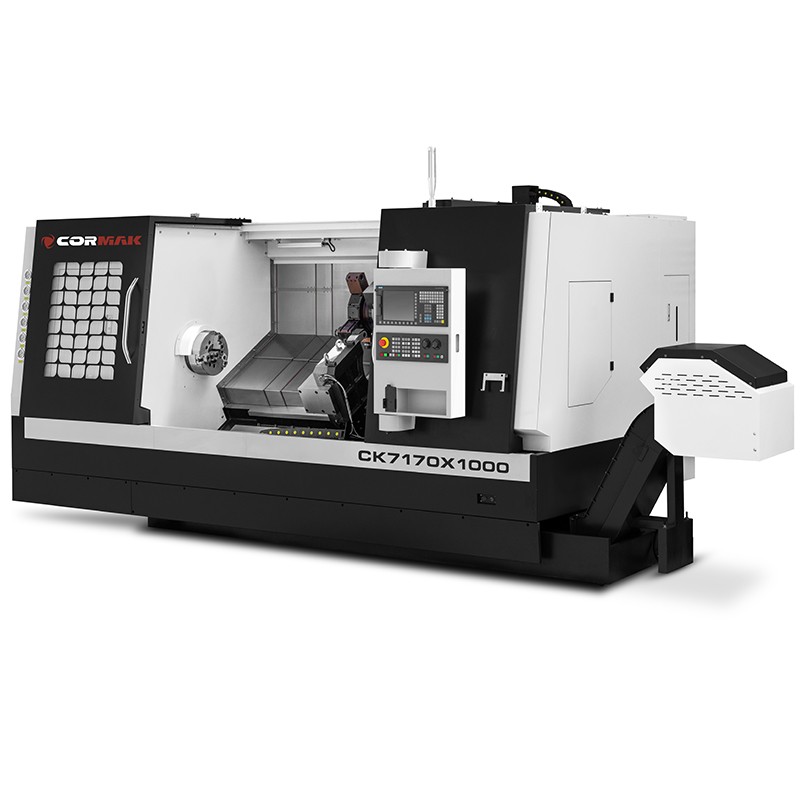

The Cormak CNC lathe with C-axis and driven tools is a response to the needs of modern industry. Based on SIEMENS technology and Schneider components, this machine combines modernity with durability. A large working area, high rigidity of the slanted bed, and milling functionality make this machining center perfect for tool shops, serial production, and one-off manufacturing. Included: hydraulic chuck, tailstock, air-conditioned control cabinet, chip conveyor, driven tool holders, cooling system, SIEMENS or FANUC controller – ready for operation right after delivery.
This modern CNC lathe with a solid slanted bed and BMT 45 tool turret offers top precision, performance, and machining versatility. Designed for production environments, it allows for comprehensive machining using the C-axis and driven tools. The use of renowned Siemens and Schneider components ensures a long service life and reliable operation.
| Parameter | Specification |
|---|---|
| Turning diameter over bed | 700 mm |
| Turning diameter over carriage | 470 mm |
| Maximum workpiece length | 1000 mm |
| X / Z axis travel | 860 / 290 mm |
| Spindle bore diameter | 72 mm |
| Spindle speed | 2500 rpm |
| Spindle motor | SIEMENS 11 kW (15 kW) |
| Chuck | Hydraulic, 3-jaw, Ø305 mm |
| Tool turret | BMT 45, 12 positions (driven tools) |
| X/Z axis positioning accuracy | 0.001 mm |
| Tool size | 20 × 20 mm |
| Hydraulic tailstock | Sleeve Ø90 mm, travel 140 mm |
| Tailstock taper | MK5 |
| Dimensions (L/W/H) | 5500 × 2300 × 2210 mm |
| Weight | 7200 kg |
SINUMERIK 808D controller (Polish language)
Driven tools
Y-axis – for milling and off-axis drilling (option)
Linear guides – high rigidity and durability
Cooling and lubrication system – automatic lubrication of gears and guides
Hydraulic steady rest: Ø40 × 250 mm
Hydraulically operated tailstock
Full enclosure compliant with CE standards
Control cabinet air conditioning
Chip conveyor
USB port – for fast program import/export
Complete set of service tools
Set of soft jaws
We offer professional CNC control systems from renowned brands Siemens and Fanuc, delivering precision, performance, and ease of use. Ideal for both small workshops and demanding industrial applications.
The Siemens Sinumerik 808D is a modern, cost-effective CNC system for entry-level lathes and milling machines. Designed for small and medium-sized enterprises, it offers:
Intuitive operation – simple graphical interface for easy programming and machine setup
High reliability – robust design suited to tough workshop environments
Wide compatibility – suitable for machines with basic technological requirements
Beginner-friendly – excellent choice for those starting with CNC systems
Sinumerik 828D is a professional CNC controller designed for lathes and milling machines requiring greater precision and performance. Key features include:
High computing power – for dynamic and accurate machining
Advanced technological functions – interpolation, optimized toolpaths, and complex cycles
Solid, compact design – built for industrial conditions
Scalable automation – supports additional modules and process control
CAD/CAM compatibility – seamless integration with design and production software
A great choice for companies needing a powerful and reliable CNC system for complex machining.
The Fanuc Oi-TF is one of the most popular CNC controllers for turning, known for its reliability and ease of use. Widely adopted in metalworking industries due to:
Exceptional stability – consistent precision in long-term, high-volume production
Advanced turning functions – threading, grooving, drilling, and more
User-friendly interface – quick programming and clear display with optimized menu
Wide compatibility – works with a broad range of lathe models
Efficient process optimization – precise control of machining parameters saves time and materials
Fanuc Oi-TF ensures stable, high-quality machining with improved productivity.
Sinumerik 808D – ideal for basic applications
Sinumerik 828D – suited for demanding production tasks
Fanuc Oi-TF – ensures the highest stability and reliability in turning operations
Contact us – we’ll help you choose the CNC control that best fits your production needs!
