The modern CNC lathe by Cormak with a slanted bed is designed for precise and efficient machining of medium and large workpieces. Turning capacity up to Ø700 mm and a maximum workpiece length of 2000 mm, combined with the C-axis and driven tools, make it an ideal machine for producing complex parts. The BMT 45 tool turret with 12 positions, SIEMENS servo drives, linear guides, and full hydraulics make it a professional tool for continuous operation. The SINUMERIK 808D controller (OPTIONAL SINUMERIK 828, FANUC) provides easy operation and the ability to edit programs directly on the machine.
The modern CNC lathe with a solid, slanted bed and BMT 45 tool turret offers the highest precision, efficiency, and machining versatility. The machine is designed for production environments – enabling comprehensive machining using the C-axis and driven tools. Thanks to the use of renowned components from Siemens and Schneider, the lathe guarantees long service life and reliability.
| Parameter | Specification |
|---|---|
| Turning diameter over bed | 700 mm |
| Turning diameter over carriage | 470 mm |
| Maximum workpiece length | 2000 mm |
| X / Z axis travel | 1260 / 290 mm |
| Spindle bore diameter | 72 mm |
| Spindle speed | 2500 rpm |
| Spindle motor | SIEMENS 11 kW (15 kW option) |
| Chuck | Hydraulic 3-jaw, Ø305 mm |
| Tool turret | BMT 45, 12 positions (driven tools) |
| Positioning accuracy X/Z axis | 0.001 mm |
| Tool size | 20 x 20 mm |
| Hydraulic tailstock | Sleeve Ø90 mm, travel 140 mm |
| Tailstock taper | MK5 |
| Dimensions (L/W/H) | 6000 x 2300 x 2210 mm |
| Weight | 7500 kg |
SINUMERIK 808D control system with Polish language interface
Driven tools
Y-axis – option for milling and drilling off-axis
Linear guides – high stiffness and durability
Cooling and lubrication system – automatic lubrication of gears and guides
Hydraulic steady rest: Ø40 x 250 mm
Hydraulic tailstock control
Full enclosure meeting CE standards
Control cabinet air conditioning
Chip conveyor
USB port – fast import/export of programs
Complete set of service tools
Set of soft jaws
We offer professional CNC controls from renowned Siemens and Fanuc brands, which provide precision, efficiency, and ease of use. Our solutions are ideal both for smaller workshops and demanding industrial applications.
Siemens Sinumerik 808D is a modern, cost-effective CNC control dedicated to basic-class lathes and milling machines. The system is designed for small and medium enterprises, offering:
Intuitive operation – simple interface based on a graphical screen facilitating programming and machine setup.
High reliability – robust construction resistant to harsh workshop environments.
Broad compatibility – suitable for machines with basic technological requirements.
An excellent solution for CNC beginners starting with a modern control system.
Sinumerik 828D is a professional CNC control designed for milling machines and lathes requiring higher precision and efficiency. Its key features include:
High computing power – fast data processing enables dynamic and accurate machining.
Extensive technological functions – advanced machining cycles, interpolation, and tool path optimization.
Solid, compact design – engineered for tough industrial conditions.
Easy automation integration – expandable with additional modules and process control options.
CAD/CAM compatibility – seamless cooperation with design software and production management systems.
This is an excellent choice for companies seeking a powerful and reliable CNC control for complex machining operations.
Fanuc Oi-TF is one of the most popular CNC controls for lathes, known for its reliability and ease of use. The system is widely used in metalworking industries thanks to:
Exceptional operational stability – reliable and precise performance even in long series production.
Advanced turning functions – supports various turning cycles including threading, grooving, drilling, and other cutting operations.
Intuitive user interface – fast programming and easy operation via a clear screen and optimized menu.
Wide compatibility – works with many lathe models.
Efficient process optimization – enables better control over machining parameters, saving time and materials.
Fanuc Oi-TF users gain confidence in stable and precise machining, resulting in higher productivity and quality.
Siemens Sinumerik 808D is ideal for basic applications.
Siemens Sinumerik 828D suits more demanding production processes.
Fanuc Oi-TF guarantees the highest stability and reliability in turning.
Feel free to contact us – we will help you select the CNC control best suited to your needs!
With over 20 years of experience delivering machines and technological solutions, we hold a leading position in industrial supply.
16 years of experience servicing Siemens CNC controls.
Over 15,000 m² of warehouse space with around 12,000 machines and devices available.
CORMAK is a Polish brand offering proven solutions recommended by our clients for many years. We provide only the highest quality machines and continuously strive to raise their standards.
We ensure professional warranty and post-warranty service. Our engineers possess the necessary knowledge and training.
Choosing CORMAK guarantees purchasing from a Polish company. All machines offered have appropriate European safety certifications.
Our specialists provide comprehensive information and professional advice to select optimal solutions for your company. You can always count on expert service.
phone: +48 501 944 934
export@cormak.pl
phone: +48 609 939 400
export@cormak.pl
phone: +48 609 939 051
export@cormak.pl
phone: +48 609 939 741
export@cormak.pl

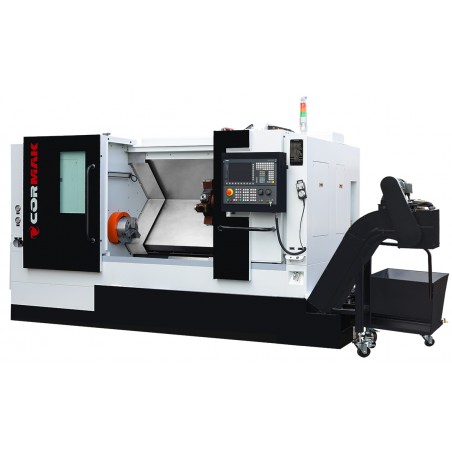

The CK71560 LT 12x1500 lathe is characterized by a compact structure with an attractive shape, convenient in operation and maintenance, and wide processing capacity. Suitable for processing components made of non-ferrous metals, ferrous metals and non-metals. This lathe can perform cylindrical ...More
