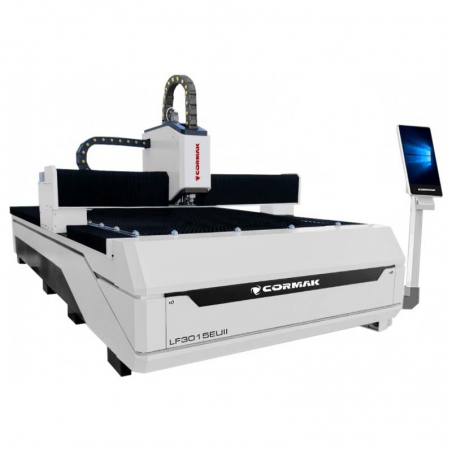

Fiber laser cutting machines are modern devices with numerous advantages. Not only are they an excellent and much more profitable alternative to CO 2 technology , but they also have many advantages that allow you to expand production (up to 70%) and improve its quality. FIBER technology allows you to cut sheet metal and other materials of various thicknesses, from very thin to very thick. The wavelength of the FIBER laser is 1.064 micrometers. These properties influence the intensity, which is 100 times higher than in the case of CO 2 devices with similar power.
THE GREATEST ADVANTAGES OF THE LASER ARE:
- failure-free optical fiber,
- no wearing parts,
- the fiber laser source takes up about 1/3 less space,
- high energy efficiency - 100,000 hours of operation,
- universal use (special sheets, carbon steel and stainless steel, copper, brass, aluminum, titanium).
Fiber laser
- increases work efficiency by 80%,
- reduces service costs by 70%,
- saves 80% of energy,
- minimizes gas consumption,
-
saves space in the hall by 30%.
Safe and no pollution
- full laser enclosure,
- observation window with laser protective glass in the European CE standard,
- the smoke produced by cutting can be filtered inside, it does not pollute the environment.
Sliding gate made of seasoned aircraft aluminum
The sliding gate structure is made of seasoned aircraft aluminum, formed with a force of 4,300 tons, achieving incredible stiffness. Aviation aluminum has many advantages: high stiffness (greater than cast iron), low weight, resistance to corrosion and oxidation, and good machinability.
Dual linear guides and dual propellers
Two rail guides and a double ball drive screw are installed on both sides to ensure straightness and precise circularity when working with high-speed cutting.
-
No manual focus . The software automatically adjusts the focusing lens to realize automatic perforated and cutting plates of various thicknesses. The speed of automatic focusing is ten times faster than manual focusing.
-
Greater range of adjustments . Adjustment range -10mm ~ +10mm, precision 0.01mm, suitable for various types of inserts 0 ~ 20mm.
-
Long service life . The collimator lenses and converging lenses have a water cooling heat sink, which lowers the temperature of the cutting head to extend the life of the cutting head.
Technical parameters
| WORK SPACE |
1300X1000mm |
| POWER |
1500W, (option: 1000W 2000W 3000W)
|
| TOTAL POWER |
10 kW |
| REPEATABLE POSITIONING ACCURACY |
±0.02 mm/m |
| MAX SPEED |
40 m/min |
| MAXIMUM ACCELERATION |
0.5G |
| DIMENSIONS |
2110x2160x1630mm |
| WEIGHT |
1500 kg |
| POWER |
400V 50Hz |
Cutting parameters
Actual parameters may vary depending on technical conditions and materials used.
