Fiber optic laser cutting machines are modern devices with numerous advantages. Not only are they an excellent and much more profitable alternative to CO 2 technology , but they also have many advantages that allow you to expand production (up to 70%) and improve its quality. FIBER technology allows you to cut sheet metal and other materials of various thicknesses, from very thin to very thick. The wavelength of the FIBER laser is 1.064 micrometers. These properties influence the intensity, which is 100 times higher than in the case of CO 2 devices with similar power.
The greatest advantages of the laser include:
- failure-free optical fiber,
- no wearing parts,
- the fiber laser source takes up about 1/3 less space,
- high energy efficiency - 100,000 hours of operation,
- universal use (special sheets, carbon steel and stainless steel, copper, brass, aluminum, titanium).
Fiber laser
- increases work efficiency by 80%,
- reduces service costs by 70%,
- saves 80% of energy,
- minimizes gas consumption,
-
saves space in the hall by 30%.
Safe and no pollution
- full laser enclosure,

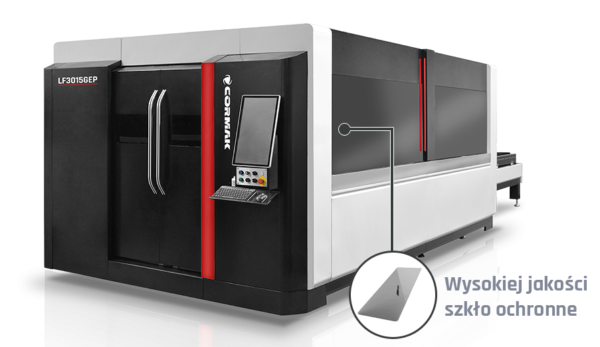

- observation window with laser protective glass in the European CE standard,
- the smoke produced by cutting can be filtered inside, it does not pollute the environment.
Sliding gate made of seasoned aircraft aluminum
The sliding gate structure is made of seasoned aircraft aluminum, formed with a force of 4,300 tons, achieving incredible stiffness. Aviation aluminum has many advantages: high stiffness (greater than cast iron), low weight, resistance to corrosion and oxidation, and good machinability.
Replaceable work table
The replaceable work table consists of an upper and lower platform, the movement and replacement of which is controlled by a controller. The machine is able to replace the platform within 15 seconds.
Bed welded from rectangular profiles
The bed structure has an internal structure resembling a honeycomb, made of many welded rectangular tubes. There are stiffeners inside the tubes that increase the strength of the bed and also increase the stiffness and stability of the guide rail to effectively prevent it from deforming. High strength, stability, tensile strength, ensuring 20 years of use without distortion.
Raytools head
-
Automatic focus adjustment - autofocus . The software automatically adjusts the focusing lens when cutting sheet metal of different thicknesses. The auto focus speed is ten times faster than the manual focus speed.
-
Greater range of manual adjustment - adjustment range -10mm - +10 mm. A precision of 0.01 mm is used for various material thicknesses (0-20 mm) - below 1500W power.
-
Long service life . The collimator lenses and converging lenses have a water cooling heat sink, which lowers the temperature of the cutting head to extend the life of the cutting head.
Technical parameters
| WORK SPACE |
1500x3000/2000x4000/2000x6000 mm
|
| POWER |
6000W IPG ( 1500W 2000W 3000W 4,000W 8000W 12000W)
|
| REPEATABLE POSITIONING ACCURACY |
±0.02 mm/m |
| MAX SPEED |
120 m/min |
| MAXIMUM ACCELERATION |
1.5G |
| DIMENSIONS |
8850x2850x2310/10800x3350x2310mm |
| POWER |
400V 50Hz |
Cutting parameters
Actual parameters may vary depending on technical conditions and materials used.
