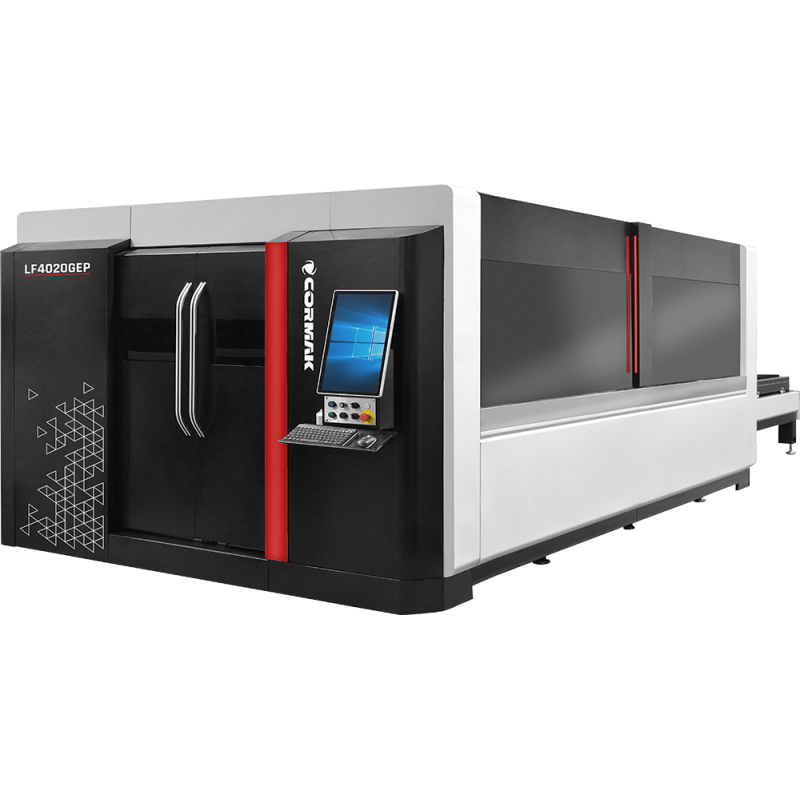

Laser fiber cutting machine LF4020GEP

On sale!

A modern, fully enclosed fiber laser for cutting metal sheets. The laser housing with protective glass provide full protection against the reflection of the laser beam, protecting the health of the operator and other people in the room. The replaceable work table allows you to significantly improve the efficiency and comfort of work. The offer includes a laser with a power from 1000W to 8000W, and the highest quality components ensure long and trouble-free use of the fiber laser.

Variant

Fiber laser FIBER LF4020GEP 2000W

Fiber laser FIBER LF4020GEP 3000W

Fiber laser FIBER LF4020GEP 4000W

Fiber laser FIBER LF4020GEP 6000W

Fiber laser FIBER LF4020GEP 12000W

Have questions? Call us!

+48 25 631 00 27 ext.105

export@cormak.pl

Are you a member of the VIES group?

Yes - show prices with VAT 0%

VAT included

~~€102,090.00~~

€75,952.50

The lowest price of this product in the last 30 days before the discount was €73,977.74 gross

Fiber Lasers
designed and assembled in Poland

Fiber optic laser cutters are modern devices that are distinguished by numerous advantages. They are not only an excellent and much more profitable alternative to the CO₂ technology, but also have a lot of advantages in themselves that allow you to develop production (up to 70%) and improve its quality. FIBER technology allows you to cut sheets and other materials of various thicknesses, from very thin to very thick. The wavelength in the FIBER laser is 1.064 micrometers. These properties result in an intensity that is 100 times greater than that of CO₂ devices of similar power.

The greatest advantages of the laser are:

failure-free optical fiber,
no wearing parts,
The fiber laser source takes up about 1/3 less space,
high energy efficiency - 100,000 hours of operation,
universal use (special steel, black and stainless steel, copper, brass, aluminum, titanium).

Fiber laser

increases work efficiency by 80%,
lowers service costs by 70%,
saves 80% of energy,
minimizes gas consumption,
saves hall space by 30%.

Security and no pollution

full laser housing,
observation window with laser protective glass in European CE standard,
smoke produced by cutting can be filtered inside, it does not pollute the environment.

Sliding gate made of seasoned aviation aluminum

The construction of the sliding gate is made of seasoned aviation aluminum formed with a force of 4300 tons, achieving incredible stiffness. Aviation aluminum has many advantages: high stiffness (greater than cast iron), low weight, resistance to corrosion and oxidation, and good machinability.

Removable build table

The interchangeable work table consists of upper and lower platforms whose movement and exchange are controlled by the controller. The machine is able to replace the platform within 15 seconds.

Welded bed made of rectangular profiles

The construction of the bed has an internal structure resembling a honeycomb, made of many welded rectangular tubes. Stiffeners are placed inside the tubes, which increase the strength of the bed, and also increase the rigidity and stability of the guide rail to effectively prevent its deformation. High strength, stability, tensile strength, ensuring 20 years of use without distortion.

Raytools head

Autofocus. The software automatically adjusts the focusing lens when cutting sheets of different thicknesses. The auto focus speed is ten times faster than the manual focus speed.

Greater range of manual adjustment - adjustment range -10mm - +10mm. The precision of 0.01 mm is applicable to various thicknesses of materials (0-20 mm) - below the power of 1500W.

Long life. Collimator lenses and focusing lenses have a water-cooling heatsink, which lowers the temperature of the cutting head to extend the life of the cutting head.

Technical parameters

WORKSPACE	2000x4000
POWER	1000W 1500W 2000W 3000W 4000W 6000W 8000W 12000W
REPEATABLE POSITIONING ACCURACY	±0.02 mm/m
MAXIMUM SPEED	120 m/min
MAXIMUM ACCELERATION	1,5G
POWER SUPPLY	400V 50Hz
