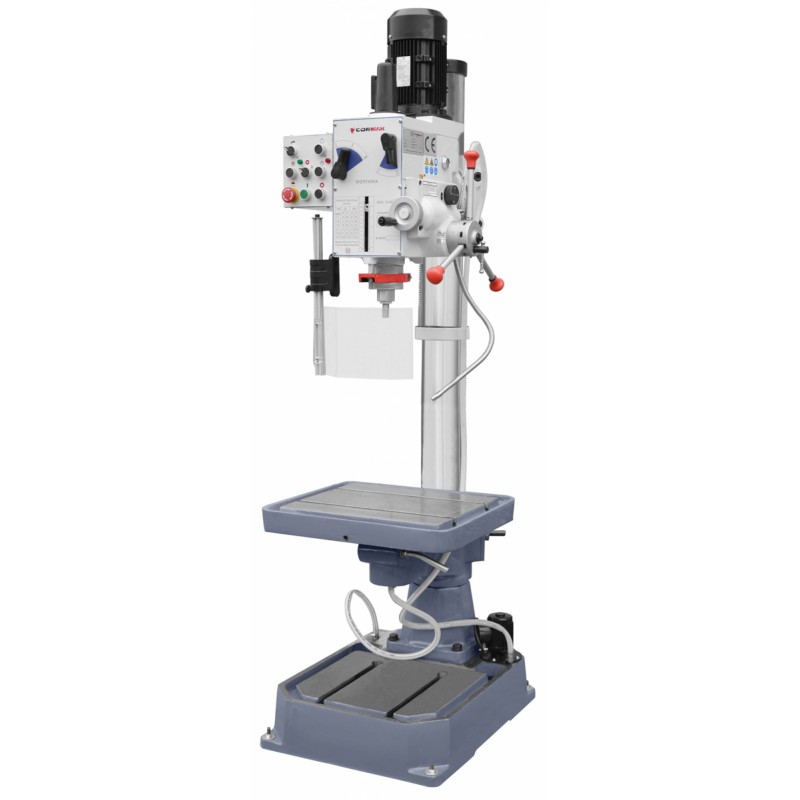

CORMAK ZS-40B industrial gear drill with autofeed + set of threading holders

The CORMAK ZS-40B industrial gear column drill is a solid tool with great potential. Equipped with a rotating head with height adjustment, an automatic threading device and a precise handwheel, it provides flexibility and accuracy in work. A powerful engine guarantees high drilling efficiency, and a solid construction, a gear transmission in an oil bath ensure stability and durability. Included with the drill - a set of threading holders, expanding the capabilities of this professional tool . Additionally equipped with auto feed and cooling.

Variant

Z5020 BF Vario metal pole drill

Z5020 Vario Column Drilling Machine

Z5020 Vario Column Drilling Machine 400V

25 mm Column Drilling Machine

32 mm Column Drilling Machine

WS32GP Column Drilling Machine

WS32BGP Column Drilling Machine

Z5028W Column Drilling Machine

Industrial gear drill CORMAK ZS-40HS

CORMAK ZS-40HS industrial gear drill + set of threading holders

CORMAK ZS-40B industrial gear drill with autofeed

Z5040L Column Drilling Machine with Angular Cube Table

Z5050 Column Drilling Machine

Have questions? Call us!

+48 25 631 00 27 ext.105

export@cormak.pl

Are you a member of the VIES group?

Yes - show prices with VAT 0%

VAT included

€2,725.00

The lowest price of this product in the last 30 days before the discount was €2,725.00 gross

Instructions in Polish
Service
Warranty 12/24 months
Delivery
Free

Machine Characteristics

Rotatable head with height adjustment – ensures great work flexibility and the ability to precisely adjust to various tasks.
Threading function with automatic left-hand rotation – enables automatic switching to the left-hand rotation direction when threading.
Precision handwheel with depth scale – ensures accurate drilling depth setting.
Oil gear with ground and hardened wide wheels – guarantees durability and reliability of the machine operation.
Solid, stable base – ensures high machine stability and quality of processed parts.
Powerful motor – ensures good drilling performance, even in difficult materials.
Rigid column with ground surface – minimizes vibrations and improves machining precision.
Hinged Plexiglas clamping handle cover – increases work safety.
Disconnectable automatic vertical feed with three speeds – allows precise speed setting depending on the processing.
Large, height-adjustable rotary table – allows for processing heavy workpieces and adapting to various tasks.
Table with 14 mm T-slots – allows for setting up a vice and other working tools.
Cooling system as standard equipment – ensures optimal temperature during operation, which improves efficiency and quality of processing.

Technical data

MAXIMUM DRILLING DIAMETER	40mm
MAXIMUM THREADING DIAMETER	M32
COLUMN DIAMETER	115mm
SPINDLE DISTANCE FROM COLUMN AXIS	260mm
MAX. DISTANCE FROM SPINDLE NOSE TO WORK TABLE	754mm
MAXIMUM DISTANCE SPINDLE TIP TO BASE	1270mm
SPINDLE CONE	MK4
SPINDLE SPEEDS	50 - 2520 rpm
NUMBER OF GEARS	6
FEED RANGES	0.12; 0.18; 0.25 mm/rev
WORK TABLE SURFACE DIMENSIONS	354x575mm
TOTAL HEIGHT	2120mm
ENGINE POWER	S1 : 1.1kW S6 : 1.6kW
POWER SUPPLY	400V/50Hz
WEIGHT	410kg
