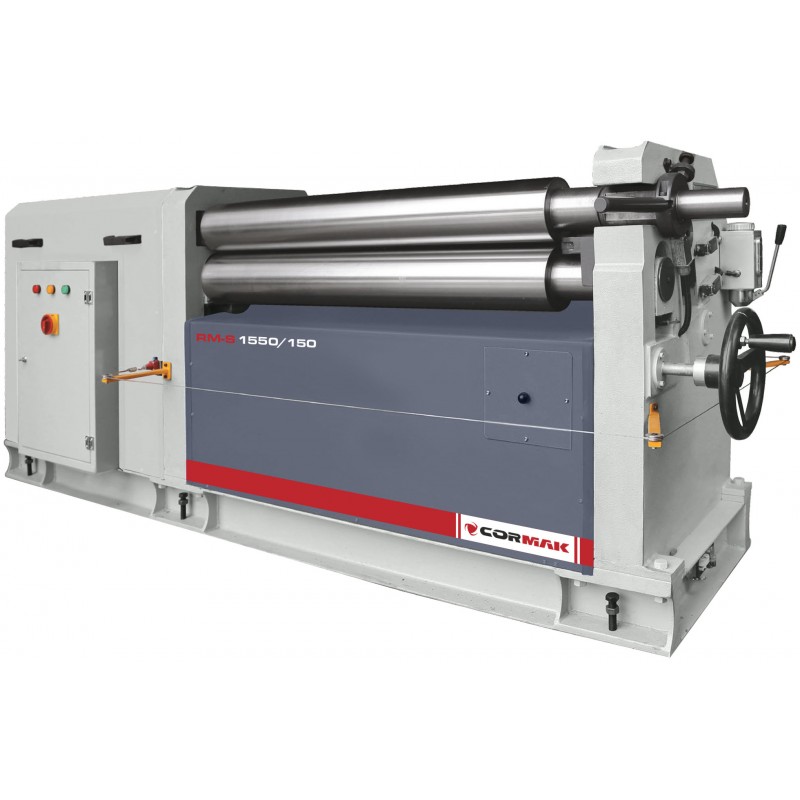

  • CORMAK RM-S 3050/190 sheet metal rolling mill - Roll Bender CORMAK RM-S 1550/150
  • CORMAK RM-S 3050/190 sheet metal rolling mill -
  • CORMAK RM-S 3050/190 sheet metal rolling mill -
The professional, heavy mechanical rolling mill from the industrial RM-S series is ideally suited to series production as well as to craft applications.
The RM-S series is designed for light and medium work on sheet metal up to 5/6 mm thickness. Used mainly for sheet metal, aluminum, ventilation ducts, advertising panels.
VAT included
€37,974.32
The price has not changed
There are not enough products in stock


  • CE
  • Instrukcja
    po polsku
  • Serwis
  • Gwarancja
    12/24
    miesięcy
  • Dostawa
    Gratis

Most important advantages:

  • Asymmetrical rolls with certificated quality and high mechanical strenght
  • Asymmetrical position of rolls for pre-bending
  • Rolls powered by a powerful transmission with a gearbox
  • Tiltable upper pressure for simple and fast receipt finished detail
  • The device provide possibility conical bending
  • Standard equipment includes groove mounting wire for upper and down rolls
  • Foot switch for left/right work
  • Upper roll regulated by manual wheel
  • Motorized rear roll
  • Serial equipped fot braking motor
  • Stable and compact construction made for cast iron adapting for the large load
  • Machine made in accordance with the EC Safety Directive (CE mark) / Declaration of Conformity

Technical data

Working length 1550 mm
Shaft diameter 130 mm
Min. bending diameter 225 mm
Max. thickness 5/6 mm
Prebending 4/5 mm
Motor power 2,2 kW
Motor power back roll 1,1 kW
Widht 3250 mm
Depth 650 mm
Height  1020 mm
Weight 1400 kg
