CORMAK HBS260 Metal Band Saw + 2 M42 saws + 5L Emulgol + ZW580

Machine characteristics

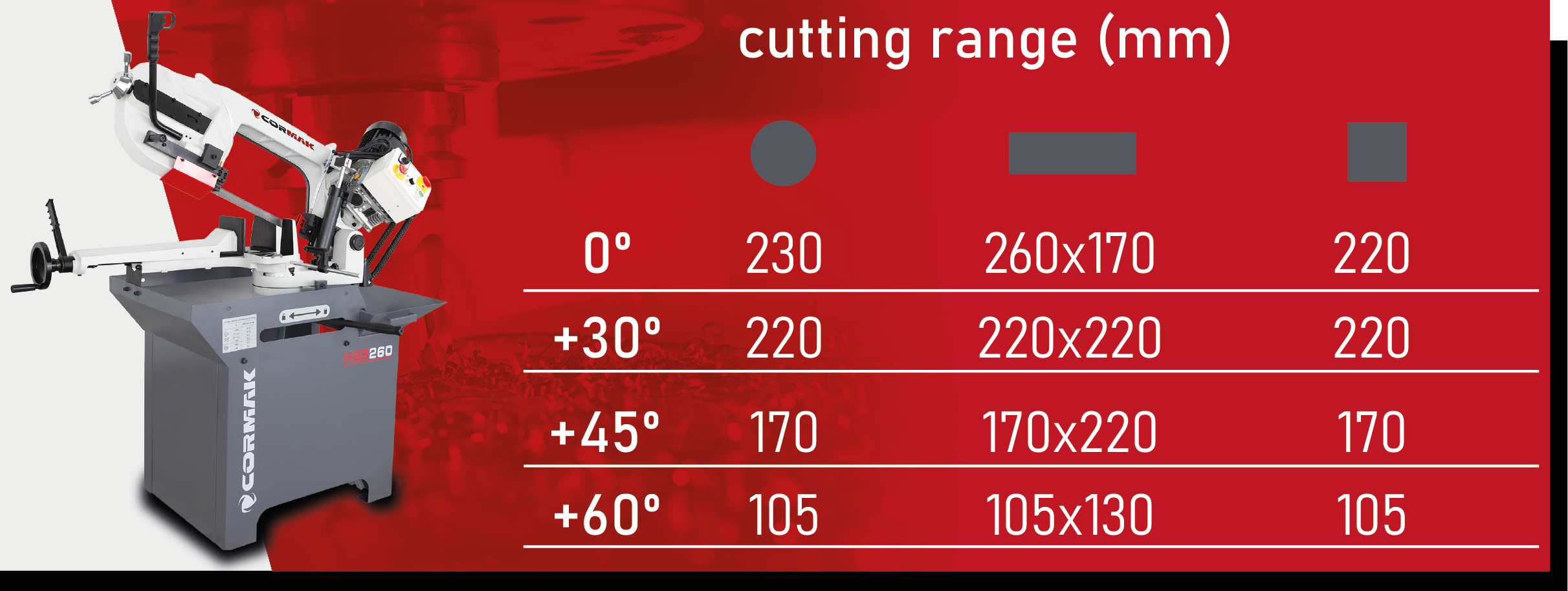

A horizontal metal band cutter with a swiveling arm allows cutting in a plane perpendicular to the axis of the material being cut and at any angle ranging from 0 to 60°. The material to be cut can be fed manually or with any mechanical device, and the tool feed is automatic. The tape guides are equipped with special carbide plates and bearings. This has a huge impact on the belt guidance, its life, straightness, accuracy and cutting quality. Carbide guidance greatly reduces wear of the machine and saw blade. The machine is equipped with an efficient cooling pump with a closed coolant circuit.

The cutter's arm made of uniform cast iron together with the 27 mm wide cutting band used in this cutter allows it to fully perform multi-series cuts of both profiles and solid materials. The vice is located in an adjustable bed and is equipped with a quick clamp. The saw blade guides are equipped with hard metal plates - sintered carbides and a rolling bearing system. It is the CENTRED CARBIDE GUIDES that are responsible for the precision and straightness of the cut.

The shape of the upper part of the base constitutes a bathtub for draining coolant and catching chips generated while cutting the material. A cast iron work table with a swivel arm and a control panel on a separate arm is attached to the base. In the cutting process, the main cutting movement is the movement of the cutting band and the falling feed of the arm. The arm lowering speed (cutting speed) is regulated by a hydraulic actuator.

The feed speed is regulated on the cutter's control panel. We can choose from two cutting band speeds: 35 and 70 m/min. In the lower position of the arm (after cutting the material), the cutting belt drive is turned off automatically. Safety is ensured by the cutting band covers and micro switches that stop the engine after the cutting cycle is completed or any of the covers are opened. Additional protection consists in automatic shutdown of the cutter in the event of the cutting band breaking.

Additionally

•     2 M42 saw blades
•     5L Emulsol
•     ZW580 magnetic chip collector
