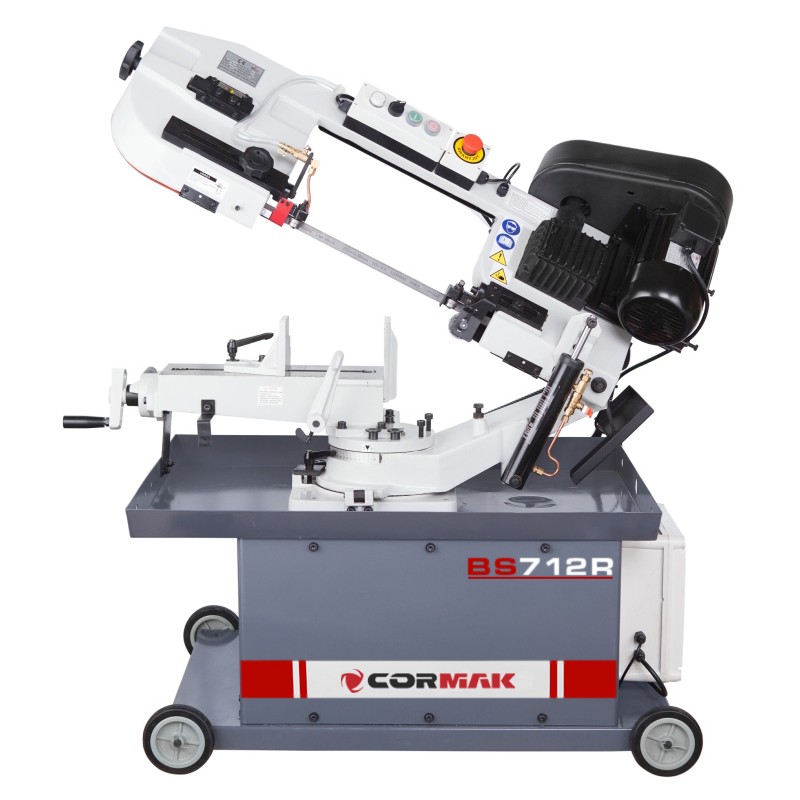

CORMAK BS 712 R 400V metal cutting machine + 2 M42 saws + 5L Emulsol + ZW580

Product features

This universal machine enables cutting in vertical plane and in the plane perpendicular to the axis of the cut material, or at any angle in 45°–90° range. Element cut can be fed manually or by any feeding device. The feed during cutting is gravitational on the principle of oil flow in a two-chamber hydraulic cylinder. Required band linear velocity is obtained by changing the ratio on the belt pulley between the worm gear and the driving motor. Suitable speed of arm lowering is obtained thanks to the valve controlling oil flow between the hydraulic cylinder chambers. Arm made of shaped spheroidal cast iron secures rigidity during operation and absorbs all vibrations. Control panel is situated close by the worm gear. Cutting band transmission system is composed of two cast iron wheels. The first wheel is a tensioning wheel (adjusted with a lever) and the second one is a drive wheel. Torque from the worm gear is directly transmitted to the tensioning wheel, while the worm gear is driven by an electric motor. Appropriate band angle is ensured through a set of roller bearings. The base of the machine is a rigid cuboid made of steel sheets inside which is a cooling fluid container with a flood coolant pump.

Tank for flood coolant draining and a container for chips are fixed to the upper part of the machine. Cast iron workbench is attached to the tank, which in turn is equipped with a vice for material clamping and to which the arm of the band saw is fixed. In the lower part of the machine base are holes for wheel axles. Safety during cutting process is ensured by an electric installation meeting all CE requirements.  The machine is equipped with a limiting switch that stops the machine after cutting process is finished, an emergency button, a number of microswitches that switch the machine off when, e.g., the belt transmission guard or cutting band guard are opened. Additionally, our machine, as opposed to competitors, is equipped with a wire brush for band cleaning – it prevents the blade from blocking and ensures a more effective cutting.

NEW

Arm construction allows for changing the machine from horizontal into vertical with workbench in just a moment. This is not only useful for metal cutting but also as a jigsaw machine for carpentry.

Technical data

Angle
0°	180 mm	180×210 mm	180×180 mm
45°	130 mm	140×90 mm	130×130 mm

Additionally

•     2 M42 saw blades
•     5L Emulsol
•     ZW580 magnetic chip collecto
