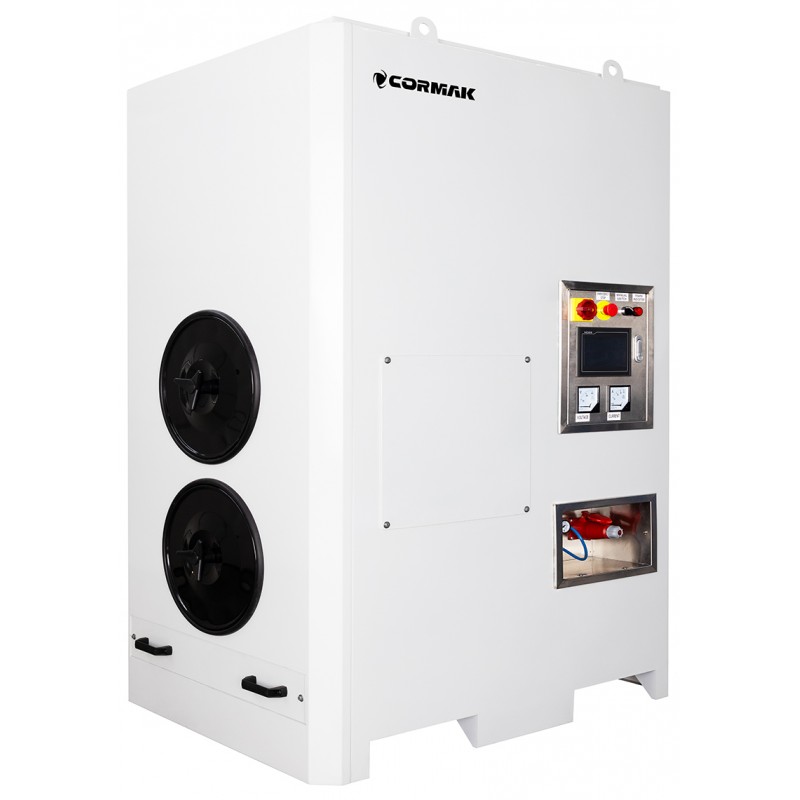

Industrial smoke and dust extraction LDC-2L

Extraction characteristics

Laser machining is a process that uses a laser to process materials and is relatively safe and clean. However, this process produces dangerous fumes and dust. They are particularly dangerous to health because they contain heavy metals that can accumulate in the human body. In addition to health risks, laser smoke and dust also have a negative impact on the quality of work, both for the operator and for the machines that may be damaged by contamination. Smoke and laser dust cause contaminants to stick strongly to machine surfaces. Additionally, if important parts of the laser system, such as mirrors or lenses, are covered with contaminants, this can lead to irreversible damage.

Extraction and filtering systems are key elements in any laser installation. They must not only be reliable, but also adapted to specific conditions. Their main task is to ensure safe removal of smoke and dust, and, if necessary, also to filter these substances. Extraction systems are designed to ensure safe working conditions for operators and keep laser lenses clean, which allows them to maintain their efficiency and durability, as well as minimize unpleasant odors during laser processing.

The filtration process of laser gases and dust takes place in several stages. First, a filter for coarse particles is used, followed by a filter for fine particles, which consists of polyester material in a metal frame and effectively removes up to 90% of dust and particles from the sucked air. The final stage is the use of an active carbon filter, which, thanks to its special carbon composition, cleans the air of undesirable substances such as heavy metals and toxic chemicals. The carbon surface in this filter acts like a sponge, effectively removing harmful contaminants from the air, which is then released into the room as clean air.

The main functions of the exhaust gas extraction and filtration system in the laser processing process are:

• Removal and neutralization of laser smoke.
• Ensuring safe work at the laser station and in its immediate vicinity.
• Extend the life of your laser systems by keeping them clean and protecting critical components from contamination.

The most important advantages of the LDC-2L extraction system:

The extractor has automatic filter cleaning using compressed air. The pressure causes the filter to "shake off", which effectively cleans the filter cartridge and thus extends its life. Thanks to this, the system maintains its efficiency for a longer time.

The filter element used in the system is imported and made of high-quality material. The fire-resistant Nano filter is characterized by high filtration efficiency, retaining particles with a size of 0.3 μm by over 99.9%.

The large dust collection drawer allows for convenient dust collection and cleaning, making system maintenance easier.

The motors used in the system are equipped with overload protection, ensuring a high level of protection and failure-free operation.

The specially developed high-performance fan wheel generates large negative pressure, which enables effective removal of laser exhaust gases and ensures high airflow efficiency.

The total purification efficiency of the system is 0.3 μm, and the efficiency is over 99.9%, which proves the high efficiency of the extraction system in removing harmful particles from the air. Additionally, it is characterized by a compact structure, which facilitates operation and maintenance.

Technical parameters
