Compact milling machine of versatile application. Perfect for both introduction courses and for demanding tinkerers. It is equipped with adjustable speed, digital drilling depth display and left/right rotation.
|
Drilling |
20 mm |
|
Cylindrical-frontal milling |
16 mm |
|
Frontal milling |
63 mm |
|
Spindle taper |
MK2 or R8 |
|
Spindle feed |
50 mm |
|
Head tilt |
+/-90° |
|
Number of spindle speeds |
adjustable |
|
Spindle speed range |
50–2250 rpm |
|
Table surface |
500×180 mm |
|
Maximum longitudinal table travel |
280 mm |
|
Maximum transverse table travel |
175 mm |
|
Maximum vertical travel |
380 mm |
|
T-slots number |
3 |
|
T-slots dimensions |
10 mm |
|
Motor |
550 W, 230V |
|
Weight |
105 kg |
phone: +48 501 944 934
export@cormak.pl
phone: +48 609 939 400
export@cormak.pl
phone: +48 609 939 051
export@cormak.pl
phone: +48 609 939 741
export@cormak.pl
gross
€76.67
€63.85
Our offer includes a wide range of machine vices: angle, precision and grinding. All of them are made of high-quality materials, providing durability and versatility.
100 mm Inclined Swivel Machine Vice
gross €133.08
Vice is made of high-quality cast iron. Due to its precise guiding, this vice is used in industries where precision is key. Swivel base allows for 360 o adjustment in the horizontal plane, and 90 o adjustment in the vertical plane. Jaw inserts made of tool steel, hardened (55+- 3HRC) and precisely ground.
gross €192.05
Universal cooling system designed for milling machines, band saws, drilling machines and lathes.
GENIALNE URZĄDZENIE (takie minimum warsztatowe) wygodna w obsłudze i serwisowaniu, zastąpiła wiertarkę. Polecam rzemieślnikom.
XL6336L SERVO Universal Milling Machine
gross €26,681.51
Industrial milling machine for metal with 2 spindles, vertical head with threading capability and spindle autofeed. Servomotors in all axes, a powerful ISO 50 horizontal spindle and a large 1600×360 mm table allow for machining large details.
ZX7045 Drilling and Milling Machine
gross
€2,712.30
€2,441.07
This machine can be used for drilling, reaming and boring holes up to 45/40 mm in cast iron, threading up to M12 mm bolts, up to 80 mm milling and up to 22 mm notching. It is also useful for cutting and frontal milling.
MFM230 Multifunctional Milling Machine
gross €12,205.37
Universal milling machine with 3 axes swivel head. The machine has broad capabilities, capable of low and high quantity manufacturing.
MFM250 Multifunctional Milling Machine
gross
€13,845.37
€12,583.83
Universal milling machine with 3 axes swivel head. The machine has broad capabilities, capable of low and high quantity manufacturing.
XZ6350ZB Drilling and Milling Machine
gross €12,583.83
Milling and drilling machine of uncomplicated design warrants long-term reliability. This machine is equipped with a horizontal spindle and vertical head. XZ 6350ZB are also equipped with spindle autofeed.
ZX7045 Drilling and Milling Machine 230V
gross €2,441.07
This machine can be used for drilling, reaming and boring holes up to 45/40 mm in cast iron, threading up to M12 mm bolts, up to 80 mm milling and up to 22 mm notching. It is also useful for cutting and frontal milling.

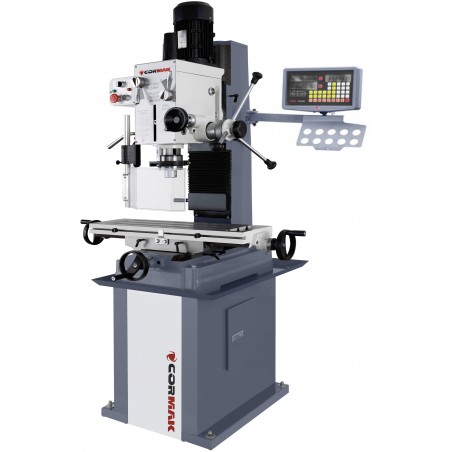

ZX7045 DRO Drilling and Milling Machine
gross €3,150.69
This machine can be used for drilling, reaming and boring holes up to 45/40 mm in cast iron, threading up to M12 mm bolts, up to 80 mm milling and up to 22 mm notching. It is also useful for cutting and frontal milling.
ZX 7045 BXL milling and drilling machine
gross €4,065.30
This machine can be used for drilling, reaming and expanding holes up to 32/45 mm in cast iron and threading bolts up to M12 mm, milling up to a width of 80 mm, and a rebate up to 22 mm. It is also suitable for cutting and face milling. The ZX 7045 BXL version is standard equipped with a large work table with dimensions of 1000 x 240 mm and a cooling system. The machine is immediately available in stock.
gross €1,794.61
Compact milling and drilling machine for universal applications. Swivel head, MK3 spindle taper. Digital display shows spindle speed.
CORMAK ZX40BPC milling and drilling machine
gross €3,589.48
CORMAK ZX 40BPC is a solid metal drilling and milling machine. Possibility of head rotation +/- 90 degrees of spindle, possibility of head rotation +/- 90 degrees, automatic spindle feed, right and left rotation, large table, liquid cooling, automatic table feed in the x axis, powerful engine, ability to drill up to 40 mm. Rotational speed up to 2500 rpm
ZX7032G 400V Milling and Drilling Machine
gross
€2,393.77
€2,299.15
This machine can be used for drilling, reaming and expanding holes up to 32 mm in cast iron and threading screws up to M12, milling up to 80 mm wide and notch up to 22 mm. It is also suitable for cutting and frontal milling.
ZX7045B1 DRO Milling and Drilling Machine
gross
€4,412.23
€4,033.77
This machine can be used for drilling, reaming and boring holes up to 45/40 mm in cast iron, threading up to M12 mm bolts, up to 80 mm milling and up to 22 mm notching. It is also useful for cutting and frontal milling. ZX 7045 B1 DRO is by default equipped with an autofed spindle, digital display and a cooling system.
MFM380 Multifunctional Milling Machine
gross €16,652.29
MFM380 universal milling machine with 3 axes swivel head. The machine has broad capabilities, capable of low and high quantity manufacturing. It also provides smooth spindle speed adjustment, tempered guides and central guide lubrication system.

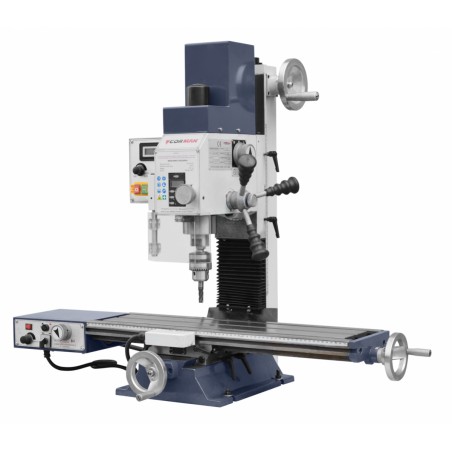

HK25L VARIO Milling Machine with autofeed X axis table
