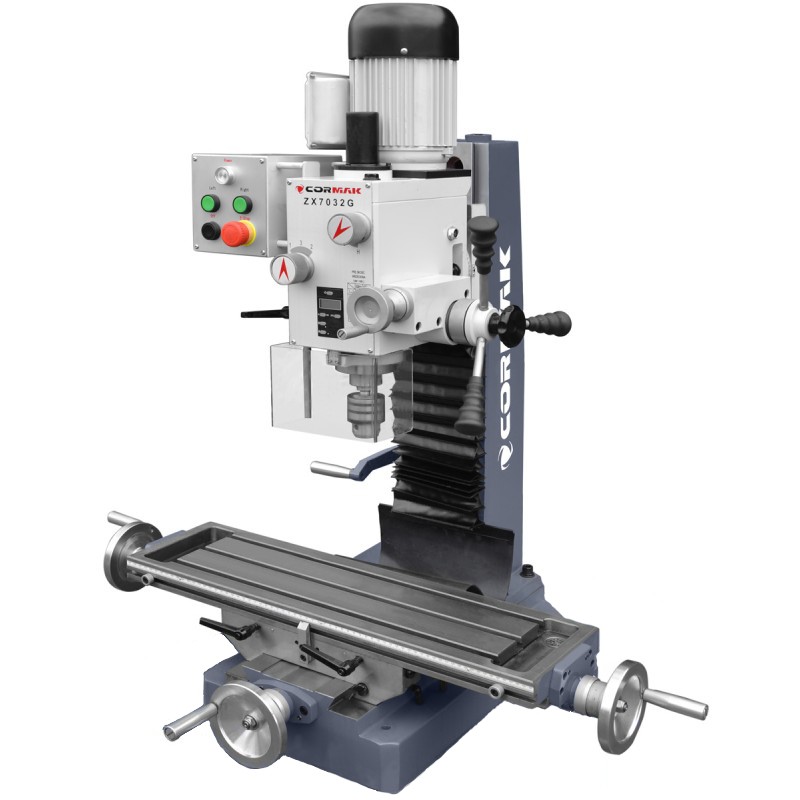

ZX7032G 400V Milling and Drilling Machine
This machine can be used for drilling, reaming and expanding holes up to 32 mm in cast iron and threading screws up to M12, milling up to 80 mm wide and notch up to 22 mm. It is also suitable for cutting and frontal milling.
Are you a member of the VIES group?
VAT included
€2,241.50
The lowest price of this product in the last 30 days before the discount was €2,183.22 gross
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
100,00 PLN
Machine description
- Tilting head in range +/- 45°
- Digital display of spindle extension
Technical parameters
| Max. diameter of drilling in steel/ cast iron | 32 mm |
| Max. diameter of front mill | 63 mm |
| Max. diameter of end mill | 16 mm |
| Max. thread diameter | M12 |
| Table dimensions | 700x190 mm |
| Table dimensions X/Y | 460/225 mm |
| Distance from spindle nose to table | 65 - 460 mm |
| Spindle pinole extension | 75 mm |
| Distance from spindle axis to column | 170 mm |
| Turning head angle | +/- 45° |
| Width/distance/number of T-slots | 12 / 63 mm / 3 |
| Spindle speeds (6 steps) | 95 / 180 / 270 / 500 / 930 / 1420 rpm |
| Spindle taper | MK3 |
| Motor power / voltage | 0.9 kW / 400 V |
| Weight (without base) | 185 kg |
| Dimensions (without base) | 1050 x 750 x 1250 mm |
Base visible is not available.
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
street Brzeska 120, 08-110 Siedlce, Poland
