LASER CUTTING PROCESS
Laser cutting is a modern and widely used technique of material processing. The cutting tool in this technique is a high energy density laser beam that cuts through the material. Laser cutting is suitable for the processing of metal, non-metal and composite materials. It is therefore quite popular.
The course of the laser cutting process
The laser cutting process is based on the effect of the laser beam at its focal point, where the beam artifact density and its power are the highest, causing rapid melting, evaporation, ablation and heating of the cut material to the ignition temperature. The place of the beam incident on the material is washed with a fast flowing gas which, while flowing along the beam incidence axis, removes the molten material. Laser cutting is one of the techniques of hot processing of materials.
| MAXIMUM LASER POWER |
160 W (RECI W6 tube) (option: 60W, 80W, 100W, 130W, 180W) |
| CUTTING AREA |
2000 x 4000 mm |
| POSITIONING ACCURACY |
± 0.1mm |
| VOLTAGE |
230V |
| POWER |
1000W |
| WORKING TEMPERATURE |
0-45 ℃ |
| HUMIDITY DURING WORK |
5-95% |
| OPERATING SYSTEM |
Windows 95, 98, 2000, XP, Vista, 7, 8, 10 (32/64 bit) |
| INPUT FILE FORMATS |
PLT, AI, DST, DXF, BMP |
| COMPATIBLE SOFTWARE |
CorelDraw AutoCAD Photoshop |
| DRIVE TYPE |
Stepper Motors |
| HEAD COOLING |
Water |
| MATERIAL COOLING |
air, gas |
Professional liquid cooler included
It has a cooling agent, thanks to which, when the liquid reaches the alarm temperature, the built-in unit cools down the cooling system of the laser tube very quickly.
Characteristics of the LASER-2040 EVO set
- Scissor table ideal for cutting materials such as: plexiglass, aspet etc.
- The two lower exhaust extractors perform the function of extraction
- Waste drawer
- "Red point" , its task is to precisely display the workplace of the laser beam - necessary for positioning.
- Integrated compressor activated only for work, used to protect the lens against dirt and to cool the currently cut area of the material.
- Fan for exhaust gas extraction.
- Laser head 160W (RECI W6 tube) (option: 80W, 100W, 130W, 180W) .
- Professional cooler.
- USB communication allows you to connect the machine also to a notebook computer via the USB port. In addition, the machine has an LCD display from which you can, among others to adjust the height of the table.
- USB input in the machine and built-in memory allow you to transfer files with operating parameters directly to the device without using a computer.
- USB stick 512MB for file transfer
U.S II-VI optical lenses
American optics from American Photonics. Proven 14% improvement in transmission compared to other optics. High-strength gold-plated lenses and aspherical focusing lenses made by II-VI, USA.
High sharpness, high transmittance. The lenses can not only ensure the quality of the device, but also make the optical system work for a long time with high efficiency and low cost.
Usage
The machine can meet the demands of cutting and engraving large amount of garment fabrics, leather, wood, acrylic, paper and other materials.
We are a certified supplier of RECI® CO2 tubes
16 other products in the same category:
LC2050EVO WiFi CO2 Laser Plotter
Perfect for engraving, marking, cutting from single to large series. The working area of the Laser-1530EVO laser plotter is 1500x3000 mm. The price of the laser plotter includes, among others: red point, scissor table, two lower exhaust extractors with a waste drawer, integrated compressor, fan, cooling that starts up for operation.
LC9060D laser engraving plotter
Ideal for engraving, marking, cutting from single to large series. The working area of the Laser LC 9060D Laser Plotter is 900 x 600 mm. The price of the laser plotter includes, among others: a red point, an electrically lowered platform up to 200 mm, a honeycomb overlay and a knife table, a lower fume exhaust with a waste drawer, an integrated compressor, fan, and cooling. The advantage of the engraving machine is the "pass-through table", which allows the processing of materials of any length, width 900 mm and height up to 100 mm.
LC1530EVO WiFi CO2 Laser Plotter
gross
€21,282.03
€19,205.11
Perfect for engraving, marking, cutting from single to large series. The working area of the Laser-1530EVO laser plotter is 1500x3000 mm. The price of the laser plotter includes, among others: red point, scissor table, two lower exhaust extractors with a waste drawer, integrated compressor, fan, cooling that starts up for operation.

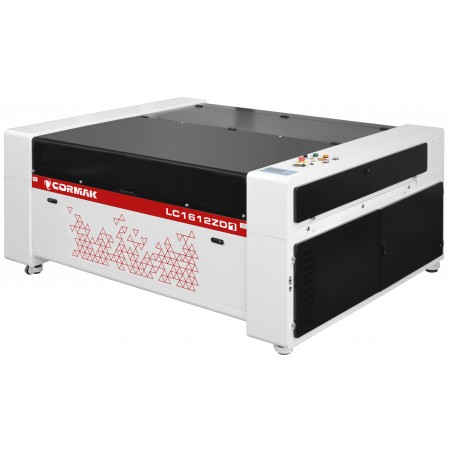

LC1612Z CO2 Laser Plotter & Engraver
Perfect for engraving, marking, cutting singular elements as well as large scale operation.
The working area of the 1610N laser plotter is 1600×1200 mm.
The price of the plotter includes, among others: a red spot, a platform electrically lowered down to 200 mm, a honeycomb layout patch as well as a scissor lifting table and two extractors of fumes: upper and lower with a container for waste, an integrated compressor, a fan, a cooling system.
LC2030EVO WiFi CO2 Laser Plotter
Perfect for engraving, marking, cutting from single to large series. The working area of the Laser-1530EVO laser plotter is 1500x3000 mm. The price of the laser plotter includes, among others: red point, scissor table, two lower exhaust extractors with a waste drawer, integrated compressor, fan, cooling that starts up for operation.
5070ZD1 CO2 Laser Plotter and Engraver
Perfect for engraving, marking, cutting The working area of the laser plotter is 700x500 mm. The price of the laser plotter includes, among others: red dot, honeycomb overlay, exhaust extraction, waste drawer, integrated compressor, fan and cooling that can be started up for operation.
LC 1612ZD2 laser engraving plotter - 2 heads
Ideal for engraving, marking, cutting from single to large series. Equipped with two laser heads, each with a power of 160W. The working area of the Laser-1612ZD2 Laser Plotter is 1600x1200 mm. The price of the laser plotter includes m .in.: red point, electrically lowered platform up to 300 mm, honeycomb overlay and scissor table, lower exhaust gas extraction with waste drawer, integrated compressor, fan, cooling.
The advantage of the engraving machine is the "pass-through table", which allows the processing of materials of any length, width 1600 mm and height 100 mm, or any width and length 1200 mm.

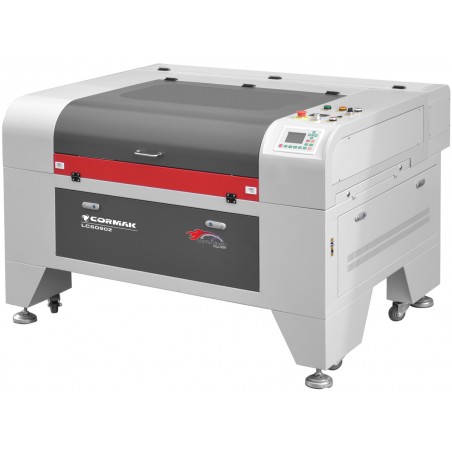

LC6090Z CO2 Laser Plotter and Engraver - improved controll system
