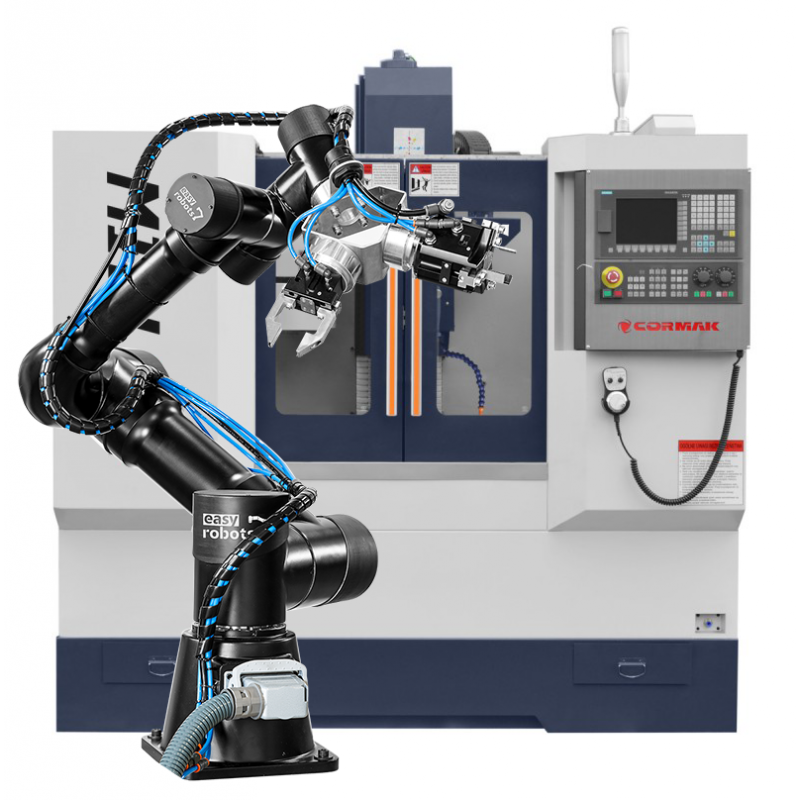

MILL500 Ecoline Machining Centre + Robot
CNC centres of the ECOLINE series are equipped with the 4th axis on the basis of renowned components ensuring long-term reliability. A solid base of the machine provides efficient and accurate machining. The hermetic chamber assures safe and clean work envirnoment. The table with tempered surface deals with workpieces without placing stress on the mechanical parts of the construction. Every machine of this series is equipped with an efficient cooling system providing optimal machining environment. 4TH-AXIS IN THE SET
Are you a member of the VIES group?
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Technical data of the lathe
|
Table dimensions |
800×260 mm |
|
Spindle taper |
BT30 (BT40 optional) |
|
X-axis travel |
450 mm |
|
Y-axis travel |
320 mm |
|
Z-axis travel |
420 mm |
|
Distance of spindle taper from table surface |
90–470 rpm |
|
Quick feeds |
10/10/8 m/min |
|
X/Y/Z axes servomotor torque |
6/6/7.7 Nm |
|
Positioning accuracy |
±0.02 mm |
|
Positioning repeatability accuracy |
±0.01 mm |
|
Maximum spindle speed |
8000 rpm |
|
Motor power |
3.7 kW |
| Control system |
SINUMERIK 808D |
| Weight |
2100 kg |
| Dimensions |
2100×1800×2200 mm |
Available equipment
- SIEMENS 808D
- 4th axis
- chuck
- tailstock
- SIEMENS servomotors
- 8000 rpm spindle
- 10-tool magazine
- 3-colour alarm indicators
- lighting
- hermetic machine body
- automatic lubrication system
- pneumatic system
Optional equipment
- SIEMENS 828 / FANUC control systems
- 10000 / 12000 rpm spindle
- cooling via spindle
- belt shavings ejector + container
Technical data of the robot
| Load capacity | 5 kg |
| Weight | 27 kg |
| Repeatability | ± 0.1 mm |
| Assembly position | floor, wall, ceiling |
| Power supply | 230V, 50Hz, 6A |
| Energy consumption | an average power consumption of 500W, a maximum power consumption of 1000W |
| Maximum range | 921 mm |
| Control cabinet | 500×500×200 mm |
| Work temperature | 7–40°C |
| Humidity | max 80% |
| Noise level | < 86db |
| IP rating | IP44 |
| Software | EScontrol |
| Control panel | panel with a 10,1’’ touchscreen |
| Compliance and security |
Machinery Directive 2006/42 / EC Electromagnetic compatibility (EMC) Directive 2014/30/EU Low voltage directive (LVD) (2014/35/EU) |
| Absolute rotary encoders |
resetting not required |
| I/O ports |
digital 8/8 (optional analogue, voltage, current, temperature sensors, resistive, rotary incremental encoder's and SSI, communication RS232/422/485, IO-Link master) |
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
street Brzeska 120, 08-110 Siedlce, Poland
