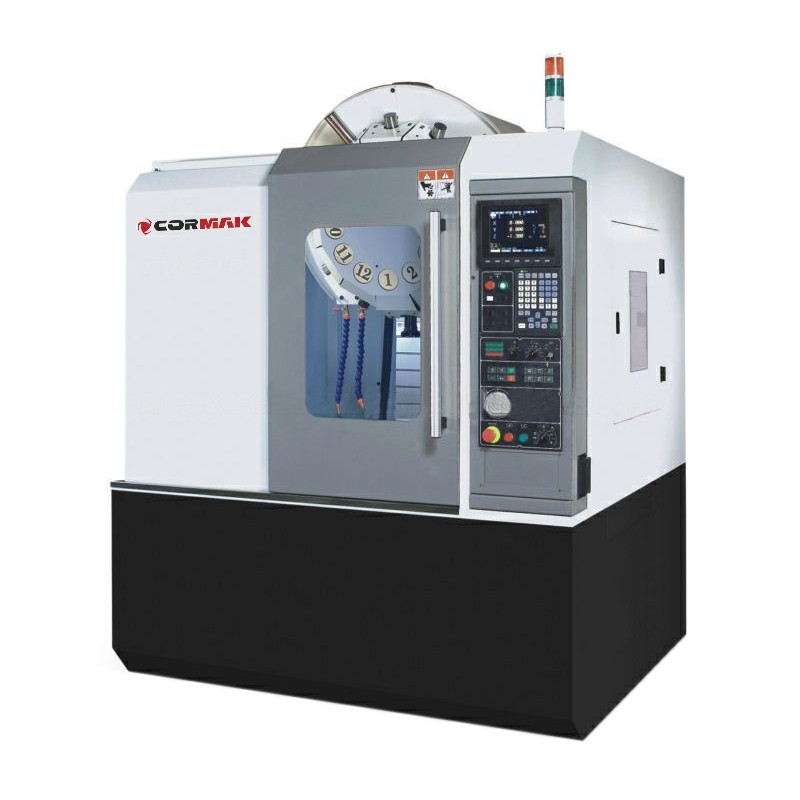

400x770 mm Drilling and Tapping Centre

This centre is intended for machining pieces with many drilled and tapped holes as well as for low-load milling. A very efficient machine tool for quantity production. Quick movement, up to 48 m/min., 12,000 RPM.

Have questions? Call us!

+48 25 631 00 27 ext.105

export@cormak.pl

Are you a member of the VIES group?

Yes - show prices with VAT 0%

VAT included

€61,192.50

The lowest price of this product in the last 30 days before the discount was €59,601.50 gross

There are not enough products in stock

I agree to the terms and conditions and the privacy policy

Instructions in Polish
Service
Warranty 12/24 months
Delivery
Free

Machine features

Very efficient machine tool for series production
Quick movement, up to 48 m/min, 12000 rpm
Compact and rigid structure
For machining pieces with many drilled and tapped holes and low-load milling
Comprehensive additional equipment

Technical data

Table dimensions	400×770 mm
X-axis travel	700 mm
Y-axis travel	400 mm
Z-axis travel	300 mm
Spindle distance from table surface	155–450 mm
Spindle taper	BT30 (100mm)
Spindle speed	12000 rpm
X/Y/Z quick feed	48m/min
Main motor power	5.5 kW
X/Y/Z motor torque	12/12/18 Nm
Table load capacity	251 kg
Net weight	3400 kg
