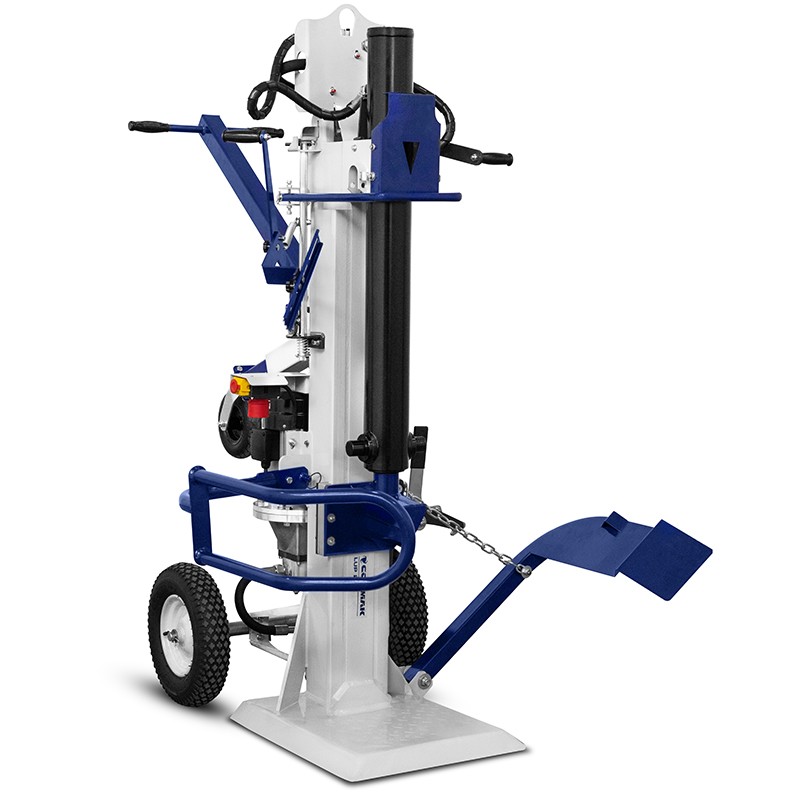

Wood splitter 22 ton LUP22

Wood splitter 22 ton LUP22 -
  • Wood splitter 22 ton LUP22 -
  • Wood splitter 22 ton LUP22 -
  • Wood splitter 22 ton LUP22 -
  • Wood splitter 22 ton LUP22 -
  • Wood splitter 22 ton LUP22 -
  • Wood splitter 22 ton LUP22 -

PROFESSIONAL 22 TON WOOD SPLITTER. Solid construction and high-quality wedge guarantee long service life and trouble-free operation.

The machine is designed for splitting wood up to approx. 700 mm in diameter! Its stable, solid construction ensures excellent work results.

Have questions? Call us!

+48 25 631 00 27 ext.105

Are you a member of the VIES group?

VAT included
€1,949.75
The price has not changed
access_time Shipping time: 7 working days after receipt of payment

  • CE
  • Instructions in Polish
  • Service
  • Warranty 12/24 months
  • Delivery
    100,00 PLN

Device description

  • The splitter has an overload valve that drains oil to the tank and an efficient, failure-free gear pump.
  • The tree lifting system makes it easier to place heavy materials directly under the splitting wedge
  • 5-pin power connection
  • The wedge set at an angle makes it easier for the wedge to sink into the material.

FAILURE-FREE HYDRAULIC PUMP 24l!

Technical parameters

Pressure force 22 TON
Minimum wood diameter 80 mm
Maximum wood diameter 700 mm
Minimum wood length 350 mm
Maximum wood length 1100 mm
Splitting speed (continuously adjustable) 10.5 cm/s
Return speed 7.5 cm/s
Wedge stroke length 948 mm
Total engine power (S1;S6) S1:5.1 kW S6: 6.6 kW
Voltage 400 V
Hydraulic tank capacity 24 l
Hydraulic system pressure 27.7 Mpa
Dimensions 1050 x 1550 x 2500 mm
Weight approx. 320 kg

Manufacturer: Cormak

CORMAK JERZY ZALEWSKI
street Brzeska 120, 08-110 Siedlce, Poland
