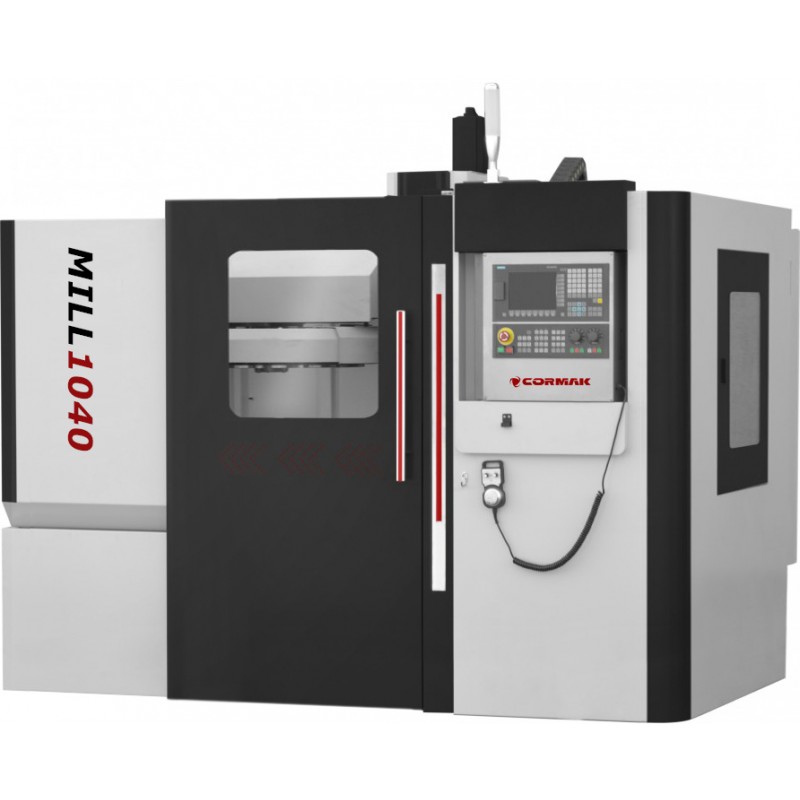

MILL1040 Machining Centre
CNC machining centres of the ECOLINE series are equipped with verified components, ensuring long-term reliability. The solid body of the machine makes sure that machining is efficient and precise. Hermetic chamber provides security and clean working environment. The table with tempered surface can carry workpieces without burdening mechanical elements of the construction. Every device of this series is equipped with an efficient cooling system, providing optimal machining conditions.
Variant

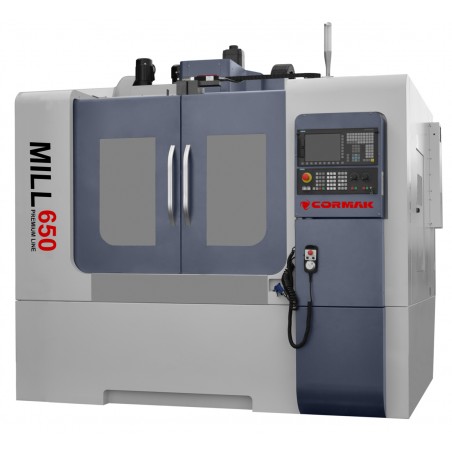

MILL650 Premium Line Machining Centre

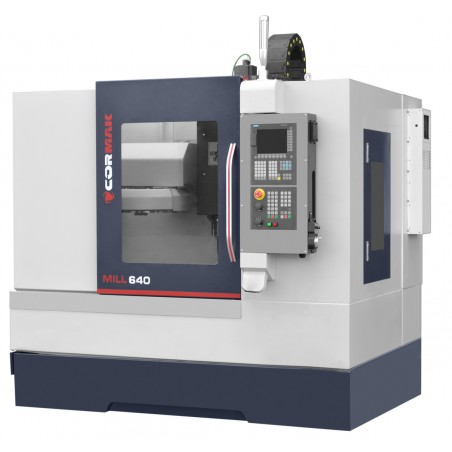

MILL640 Machining Centre
Are you a member of the VIES group?
VAT included
€43,019.25
The lowest price of this product in the last 30 days before the discount was €41,900.75 gross
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Description
Linear guides
- Highest quality guides for all axes
- Solid machine body
- Good availability of work table
- Hermetic working chamber ensuring work safety
- CNC control (G-CODE FANUC)
| TABLE SIZE | 1000x400 mm |
| T-SLOTS NUMBER/SIZE/DISTANCE | 5/18/100 mm |
| TRAVEL OF X/Y/Z AXES | 1000 x 400 x 500 mm |
| SPINDLE TAPER | BT40 |
| MOTOR POWER OF SPINDLE | 100-8000 rpm/min |
| MOTOR POWER OF SPINDLE | 5,5 kW (optional 7.5 kW) |
| SPEED FEED OF X/Y/Z AXES | 24/24/12 m/min |
| TOOL HEAD | BT40-16 |
| MAX. LENGTH OF WORKPIECE | 300 mm |
| MAX. WORKPIECE WEIGHT | 7.5 kg |
| Dimensions (LxWxH) | 290x200x280 cm |
Available equipment
- CNC control
- 8000 RPM spindle
- 16-tool magazine
- 3-colour alarm indicators
- Lighting
- Hermetic cooling system
- Hermetic body of the machine
- Automatic lubrication system
- Pneumatic system
Optional equipment
- Siemens 828 / Heidenhain / FANUC control systems
- Vertical tool magazine (24)
- Cooling via spindle
- Spindle speed of 10000 / 12000 rpm
- Belt shavings ejector + container

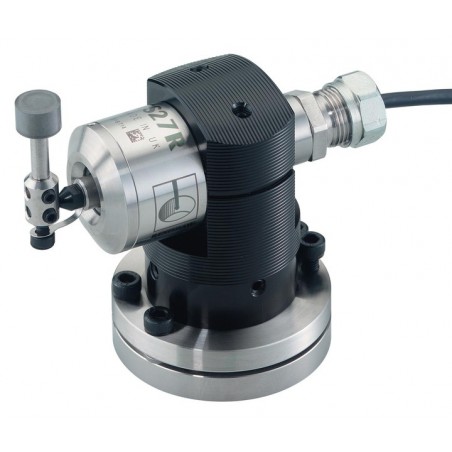

- Automatic tool setting probe
- Automatic workpiece setting probe
- 4th axis
Manufacturer: Cormak
