ISO50 Tools Starter Set

Tool set for milling machines with ISO50 spindle taper

Have questions? Call us!

+48 25 631 00 27 ext.105

export@cormak.pl

Are you a member of the VIES group?

Yes - show prices with VAT 0%

VAT included

€845.63

The lowest price of this product in the last 30 days before the discount was €823.64 gross

Instructions in Polish
Service
Warranty 12/24 months
Delivery
Free

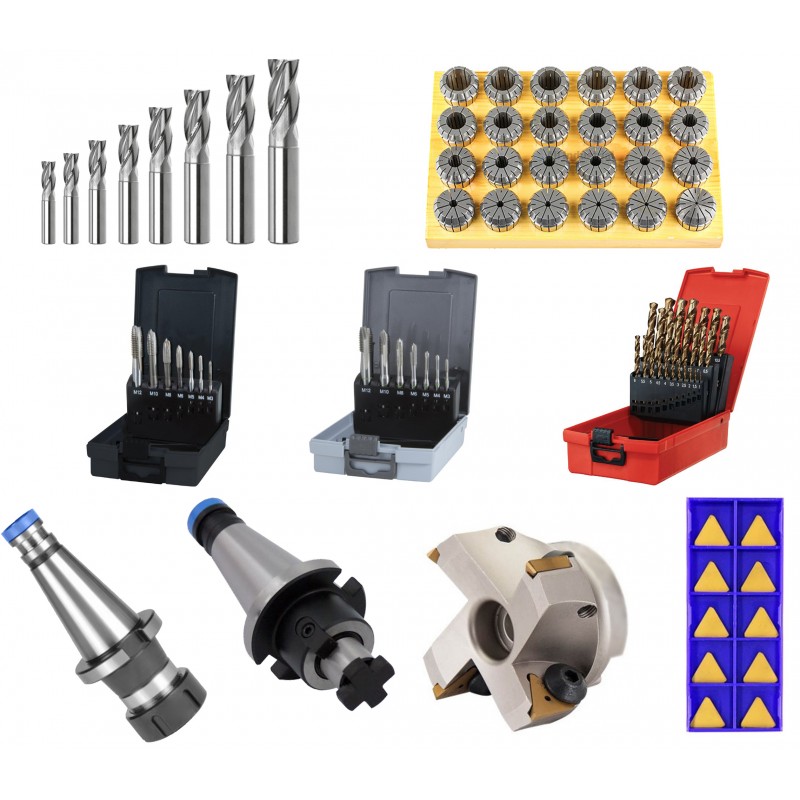

Set contains:

1. Set of end mills (9 pcs.):

NFPA FI 3,0 8/52 Z4 HB6 HSSE BK-MN EL-CUT
NFPA FI 4,0 11/55 Z4 HB6 HSSE BK-MN EL-CUT
NFPA FI 5,0 13/57 Z4 HB6 HSSE BK-MN EL-CUT
NFPA FI 6,0 13/57 Z4 HB6 HSSE BK-MN EL-CUT
NFPA FI 8,0 19/69 Z4 HB10 HSSE BK-MN EL-CUT
NFPA FI 10,0 22/72 Z4 HB10 HSSE BK-MN EL-CUT
NFPA FI 12,0 26/83 Z4 HB12 HSSE BK-MN EL-CUT
NFPA FI 14,0 26/83 Z4 HB12 HSSE BK-MN EL-CUT
NFPA FI 16,0 32/92 Z4 HB16 HSSE BK-MN EL-CUT

2. Set of sleeves 7618-40 2-26 KPL. APX (24 pcs.)

3. Set of taps M3-M12 DIN-371B / DIN-376B (6H) HSSE OX CZP-8 OPTI

4. Set of taps M3-M12 DIN-371C / DIN-376C R40 (6H) HSSE OX CZP-8 OPTI

5. Set of drill bits NWKA FI 1.00-13.00MM (25 pcs) HSS PRO

6. COLLET CHUCK FOR ER40 BUSHINGS APX-ISO50.A100.ER40

7. Spindle 7311-50-22- 40 APX

8. Folding cutter head FI 63.0 K90 ° 22/47 Z3 d22 220.17

9. TPKN 1603 PDSKR SM25 plate set (10 pcs.)
