The screw compressor of the Polish brand CORMAK, the THEOR series, is the most modern solutions used in pneumatics, combined with the use of high-quality materials and components. Low operating costs, ease of use, ergonomic and solid construction as well as high efficiency of the device guarantee effective and trouble-free operation.
As a European manufacturer, we provide our clients with proven and recognized solutions in the field of pneumatics.
The most important advantages
- INVERTER - Continuously variable speed control of the compressor is the most economical way to regulate. The most important advantage - lower electricity consumption compared to traditional control compressors and maintaining a constant set pressure
- strong, compact design of the screw compressor from the European manufacturer
- automation based on modern and quality-tested components to ensure safe and effective work
- a specially designed cooler ensures optimal working conditions even when the device is heavily loaded
- connection of the cooler with the module through good quality hydraulic hoses
- the technology used allows for significant energy savings
- special design of the air outlet for more efficient work
- an efficient and solid pump has been installed in the compressor
- unique filter system with threefold separation for efficient operation
- the compressor uses a reliable and safe solution, which is a direct drive transmission between the engine and the screw mechanism (through the so-called claw coupling), which ensures: high effective efficiency; more effective leveling of vibrations; eliminating the need for adjustments that occur with traditional belt transmission
- low noise of the screw compressor thanks to a specially designed soundproofed casing (sound insulation boards)
- electronic control from the MAM series allows you to set parameters, among others: intervals between service inspections, power failure alarms, phase direction changes, phase loss, overheating, other, Master / Slave operation, possibility of connecting up to 16 devices in the pneumatic network, possibility of remote control using a computer and others
Technical data
| Motor power |
55kW / 75 KM |
| Power supply |
400V/50Hz |
| Max air flow |
8 700 L/min |
| Pressure max |
10Bar |
| Noise level |
69 / 70 dB |
| Noise level (4 m) |
55 dB |
| Weight |
1000 kg |
| Connection |
2" |
| Dimensions |
1780 x 1180 x 1500 mm |
16 other products in the same category:
THEOR 30 10 Bar Screw Compressor
The screw compressor of the Polish brand CORMAK, the THEOR series, is the most modern solutions used in pneumatics, combined with the use of high-quality materials and components. Low operating costs, ease of use, ergonomic and solid construction as well as high efficiency of the device guarantee efficient and trouble-free operation.

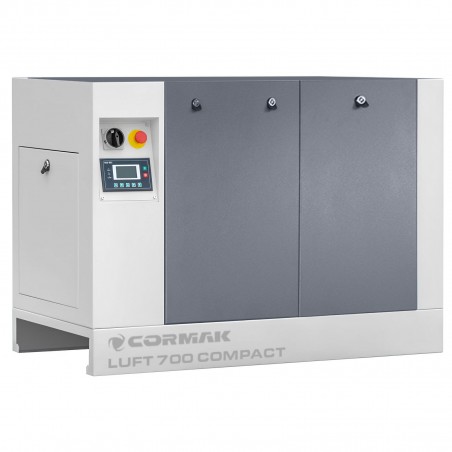

Set LUFT 700 COMPACT Screw compressor + Air dryer N10S
