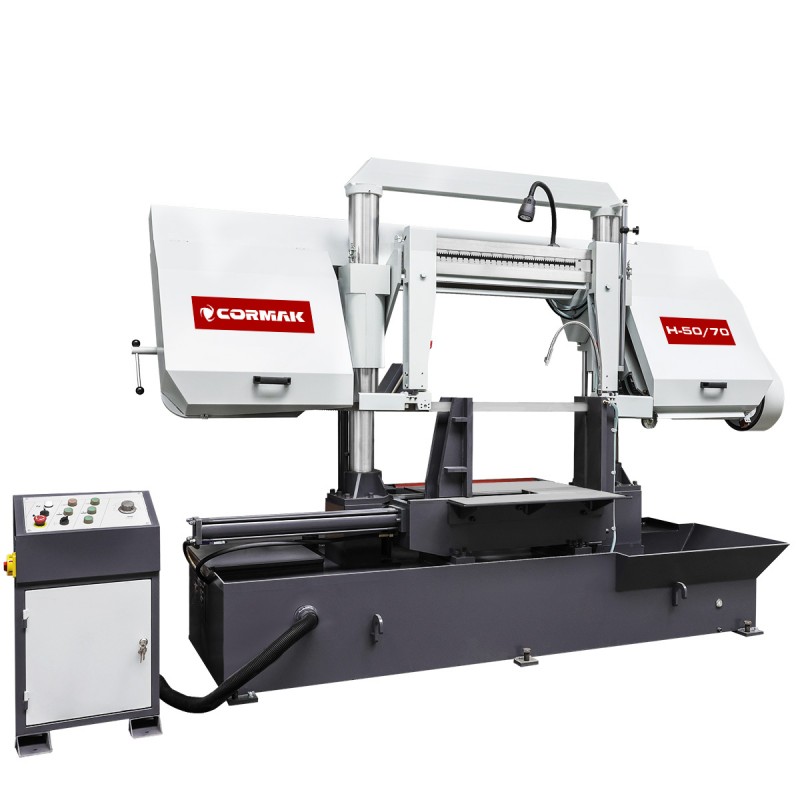

H-50/70 Band Saw

Machine description

CORMAK H-50/70 is a highly efficient column band saw for semi-automatic cutting of steel profiles, cast iron and non-ferrous metals. Its column design ensures rigidity during cutting, and employment of a completely different arm guiding technology than in pivot band saws provides cutting time reduction and accuracy increase.

CORMAK H-50/70 semi-automatic band saws, after being switched on, do the whole cutting cycle automatically, i.e. clamp the cut material in the hydraulic vice, switch on the cutting band, lower the cutting arm (adjustable speed), stop the machine after cutting, raise the arm up (adjustable arm height) and switch the hydraulic vice off. Manual handling of the machine is simplified to feeding material towards the bumper. Solid uniform cast iron arm along with the refined, stable design ensure that CORMAK H-50/70 is rigid and reliable, providing very precise cutting.

Hydraulic band tension provides optimum cutting. In the case of band breakage the machine stops automatically. Precise guiding of the band is ensured by guides with bearings and cemented carbide inserts.

The innovativeness and production of semi-automatic and automatic series "CORMAK-PREMIUM LINE" band saws, compliant with the norms and standards consistent with ISO:910001 and ISO:140001 certificates, warrant safety, quality and reliability of the product. M3V motors from ABB, a renowned worldwide manufacturer, warrant long-term reliability.

Maximum cutting range [mm]
Angle
0º	ø500	500×700

Default equipment

• Control panel at the front of the machine
• Semi-automatic work
• Built-in hydraulic unit
• Arm position memory function
• Brush for cleaning the band
• Hydraulic band tension
• Semi-automatic work
• Hydraulic band tension
• Cooling system
• Bi-metal cutting band
• EC declaration of conformity
• User manual

Optional equipment

• Powered material feeder
