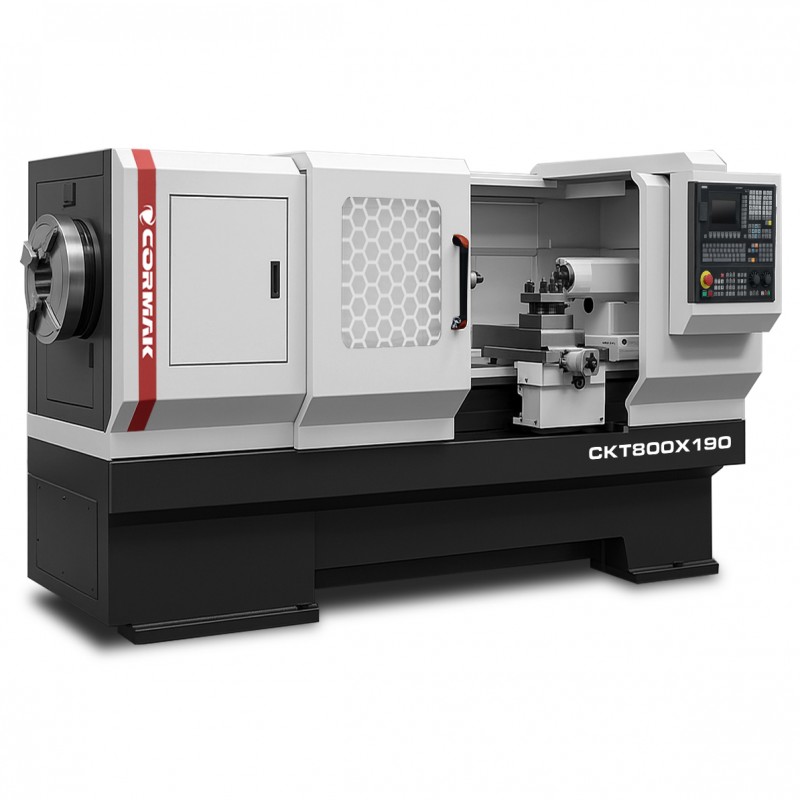

PIPE LATHE CORMAK CKT800x3000 SPINDLE THROUGHPUT 190 MM SIEMENS SINUMERIK

The Cormak pipe lathe is a reliable, high-performance solution dedicated to machining large-diameter workpieces of considerable length. The machine is capable of turning workpieces with diameters up to 800 mm and is equipped with a spindle clearance of 190 mm, making it the ideal tool for machining tubes and bushings used in the oil, gas, hydraulic and construction industries.

The double-sided spindle holder system guarantees stable workpiece clamping, which translates into high precision and work safety. With stiff, highly load-resistant construction, powerful drive and intuitive control, the Cormak lathe is ideal for intensive production conditions, offering reliability, repeatability and a long service life.

Have questions? Call us!

+48 25 631 00 27 ext.130

export@cormak.pl

Are you a member of the VIES group?

Yes - show prices with VAT 0%

VAT included

€51,598.50

The lowest price of this product in the last 30 days before the discount was €51,598.50 gross

Last items in stock

Instructions in Polish
Service
Warranty 12/24 months
Delivery
Free

Technical parameters

CENTER DISTANCE	1500 mm
MAXIMUM TURNING DIAMETER	800 mm
MAXIMUM ELEMENT LENGTH	420 mm
SPINDLE SPEED	130 mm
TOOLS 4 OPTIONS	6,8
SPINDLE SPEED	22-108,60-300,240-800 RPM
MAXIMUM X/Z AXIS FEED	420/1350
X/Z AXIS ACCELERATE FEED RATE	4/8 m/min
X/Z AXIS REPEATABILITY	0.012/0.02; 0.025 mm
TAILSTOCK SLEEVE DIAMETER	100 mm
MAXIMUM TAILSTOCK SLEEVE TRAVERSE	250 mm
TAILSTOCK SLEEVE TIP	MT5
MOTOR POWER	11 kW
WEIGHT	4500 kg
DIMENSIONS	4307 x 2040 x 1855 mm

Available equipment

SINUMERIK 808D control in Polish
2 x manual 4-jaw lathe chuck 520 mm
4-position tool head
set of soft jaws
manual tailstock
cooling system
automatic lubrication system for gears and guides
halogen lighting 24V
user manual in Polish
CE declaration of conformity

Optional equipment

spindle passage 220 mm
4-tool post
handwheels
3-jaw chuck 400 mm
chuck + hydraulic tailstock
control: FANUC, , SIEMENS 828D
steady rest + moving rest

CNC controls – Siemens Sinumerik 808D, SINUMERIK 828D and Fanuc Oi-TF

We offer professional CNC controls from renowned brands Siemens and Fanuc, which provide precision, efficiency and ease of use. Our solutions are ideal for both smaller workshops and demanding industrial applications.

Siemens Sinumerik 808D – compact CNC control for basic applications

Siemens Sinumerik 808D is a modern, economical CNC control dedicated to entry-level lathes and milling machines. The system was designed with small and medium-sized enterprises in mind, offering:

Intuitive operation – a simple interface based on a graphic screen that makes it easy to program and configure the machine.
High reliability – a durable design resistant to difficult working conditions in the workshop.
Wide compatibility – adapted to machines with basic technological requirements.
A perfect solution for beginner CNC users who want to start working on a modern control system.

Siemens Sinumerik 828D – advanced control for demanding applications

Sinumerik 828D is a professional CNC control designed to work with milling machines and lathes requiring greater precision and efficiency. Its key features include:

High computing power – fast data processing enables dynamic and accurate machining.
Extensive technological functions – advanced machining cycles, interpolation and tool path optimization functions.
Solid, compact design – designed to work in difficult industrial conditions.
Easy integration with automation – expandable with additional modules and production process control options.
Compatibility with CAD/CAM – seamless cooperation with design software and production management systems.

This is an excellent choice for companies looking for efficient and reliable CNC control for more complex machining operations.
