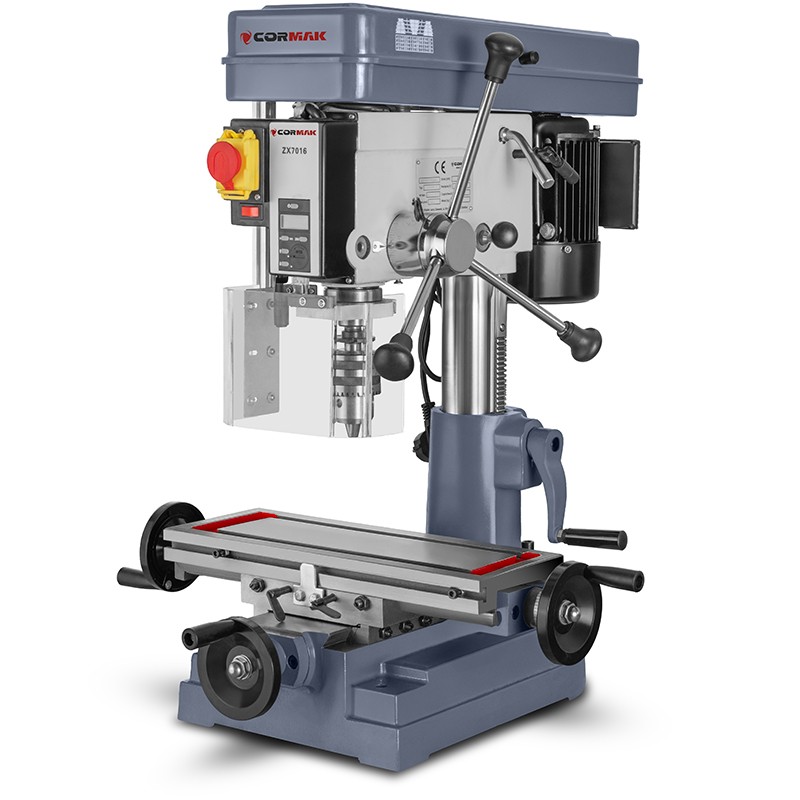

Milling and drilling machine ZX7016 230V
CORMAK ZX7016 is a versatile milling and drilling machine that combines compact dimensions with impressive functionality. Designed with the requirements of do-it-yourselfers in mind, it is ideal for precision metalworking. Thanks to the MK2 taper spindle, the unit provides exceptional stability and accuracy. In addition, the digital readout of the spindle quill extension allows full control of the process, resulting in reproducible and precise results - whether in the home workshop or in support of production processes.
Variant
HK25L VARIO milling machine
HK25L VARIO Milling Machine with autofeed X axis table
Are you a member of the VIES group?
To use the VIES group, you must have a VAT number.
VAT included
€699.75
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
The device was manufactured in accordance with applicable European Union standards, has the CE marking and an EC declaration of conformity. The control panel and security systems meet current occupational health and safety requirements. Spindle and gear cover equipped with a microswitch ensuring additional safety of work.
KEY ADVANTAGES OF THE DEVICE:
- Digital readout of drilling/milling depth
- Durable and professional design ensuring long service life.
- Multifunctionality: drilling and milling possible in one device.
- Drive transmission via reliable belt transmission.
- Spindle mounted on precision ball bearings.
- Spindle height adjustment allows for adaptation to various tasks.
- Through-through spindle with thread for mounting working heads.
- Safety switch in IP54 tightness class - increased safety of use.
- Quiet, efficient electric motor guaranteeing work comfort.
- Integrated workshop lamp improving visibility in the work area.
- ✔ All mechanical elements, including pulleys, are made entirely of metal - for maximum durability and reliability.
ORIGINAL ZX7016 - precision and stability as standard
The machine is equipped with a solid, massive cross table, ensuring smooth and precise work in two axes (X / Y), which allows for precise machining. There is a possibility of direct mounting of a vice on the work table (vice available as optional equipment). The cross work table is an integral element of the machine's construction, guaranteeing rigidity and reliability during operation.
Technical parameters:
| Max. drilling diameter | 16 mm |
| Max. vertical milling diameter | 12 mm |
| Max. face milling width | 40 mm |
| Motor S1/S6 | 0.55 kW / 0.75kW |
| Motor speed | 1420 rpm |
| Voltage / frequency | 230 V / 50 Hz |
| Table dimensions (L x W) | 420 x 152 mm |
| Table travel in Y axis |
115 mm |
| Table travel in X axis | 230 mm |
| Column distance from spindle | 180 mm |
| Height of spindle nose from table | 155 - 355 mm |
| Spindle quill extension | 77mm |
| Spindle taper | MK2 |
| Spindle speeds |
320,400,500,650,800,900,1350, 1450,1800,1900,2700,3300 rpm. |
| Width and T-slot spacing | 12 x 80 mm |
| Weight | 75 kg |
Standard equipment
- 3-16 drill chuck
- Drill chuck arbor
- Cross (work) table
- Handheld tools
- Operating instructions DTR / PL/ ENG
