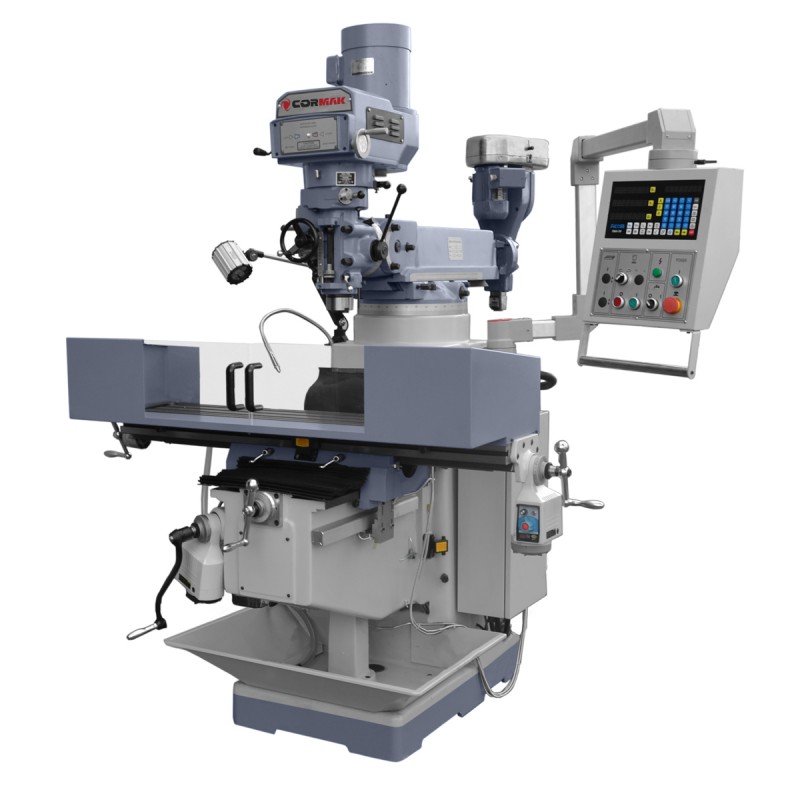

MFM230 Multifunctional Milling Machine
Universal milling machine with 3 axes swivel head. The machine has broad capabilities, capable of low and high quantity manufacturing.
Are you a member of the VIES group?
VAT included
€11,897.50
The lowest price of this product in the last 30 days before the discount was €11,588.17 gross
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Machine features
- Head tilting in 2 axes RIGHT/LEFT inclination ±90, FRONT/BACK PIVOTING ±45°
- 3 automatic feeds
- Manual collet feed
- Right/left movement switch
- Central spindle, nuts and guides lubrication system
- Manual spindle brake
- Cooling system with chips container
- Slotting head (optional)
- 3 axes digital display
Technical data
|
Table dimensions |
1246×230 mm |
|
Longitudinal table travel |
650 mm |
|
Transverse table travel |
305 mm |
|
Vertical table travel |
400 mm |
|
Spindle distance from table surface |
0–415 mm |
|
Spindle taper |
ISO 40 |
|
Sleeve travel |
127 mm |
|
Spindle speed |
(16 levels) 65–4500 rpm |
|
Motor power |
3 kW |
|
Dimensions |
2200×1600×2000 mm |
|
Weight |
1160 kg |
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
street Brzeska 120, 08-110 Siedlce, Poland
